SD6CE225I-HC

Availability: 0
Price: €769.57 769.57
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: DAHUA
Product code: SD6CE225I-HC

Description

Pro Series | DH-SD6CE225I-HC     System Overview    Featuring powerful optical zoom and accurate pan/tilt/zoom  performance, this camera can provide large monitoring range and great  detail. The camera has very excellent low light performance due to  adopting the latest starlight technology. The camera is equipped with  smooth control, high quality image and good protection, which make it  can meet most of the requirements of video surveillance applications.   Functions  Simplicity  HDCVI technology inherits the born feature of simplicity from traditional  analog surveillance system, making itself a best choice for investment  protection. HDCVI system can seamlessly upgrade the traditional  analog system without replacing existing coaxial cabling. The plug and  play approach enables full HD video surveillance without the hassle of  configuring a network.  Starlight Technology  For challenging low-light applications, Dahua’s Starlight Ultra-low Light  Technology offers best-in-class light sensitivity, capturing color details  in low light down to 0.005lux. The camera uses a set of optical features  to balance light throughout the scene, resulting in clear images in dark  environments.  Wide D...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

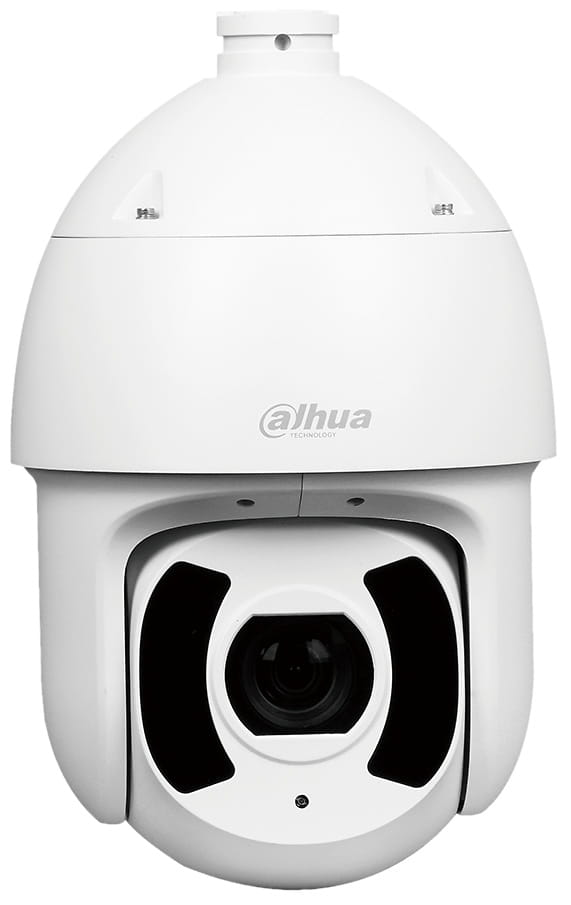

Pro Series | DH-SD6CE225I-HC

System Overview

Featuring powerful optical zoom and accurate pan/tilt/zoom
performance, this camera can provide large monitoring range and great
detail. The camera has very excellent low light performance due to
adopting the latest starlight technology. The camera is equipped with
smooth control, high quality image and good protection, which make it
can meet most of the requirements of video surveillance applications.
Functions
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional
analog system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring a network.
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.005lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, True WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Environmental
Dahua cameras operate in extreme temperature environments, rated
for use in temperatures from -40°C ~ 70°C (-40°F ~ +158°F) with
95% humidity. The camera complies with the IK10 Vandal Resistance
impact rating. Subjected to rigorous dust and water immersion tests
and certified to the IP67 Ingress Protection rating makes it suitable for
demanding outdoor applications.
Protection
The camera allows for ±25% input voltage tolerance, suitable for the
unstable conditions for outdoor applications. Its 8KV lightning rating
provides effective protection for both the camera and its structure
against lightning.
www.dahuasecurity.com
· 1/2.8” 2Megapixel STARVIS™ CMOS
· Powerful 25x optical zoom
· Starlight technology
· 120dB true WDR, 3D DNR
· Max. 25/30fps@1080P
· IR distance up to 200m
· IP67, IK10
DH-SD6CE225I-HC
2MP 25x Starlight IR PTZ HDCVI Camera


www.dahuasecurity.com
Pro Series | DH-SD6CE225I-HC

Technical Specification
Camera
Image Sensor1/2.8” STARVIS™ CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
Scanning SystemProgressive
Electronic Shutter Speed1/1s~1/30,000s
Minimum Illumination
Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6;
0Lux@F1.6 (IR on)
IR DistanceDistance up to 200m (656ft)
IR On/Off ControlAuto/Manual
IR LEDs6
Lens
Focal Length4.8mm~120mm
Max. ApertureF1.6 ~ F4.4
Angle of ViewH: 62.8° ~ 2.6°
Optical Zoom25x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm
DORI Distance
*Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
1613m(5292ft)646m(2119ft)323m(1060ft)161m(528ft)
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180°
Manual Control SpeedPan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
Preset SpeedPan: 300° /s; Tilt: 200° /s
Presets300
PTZ Mode5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after
power failure
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no
command in the specified period
ProtocolDH-SD, Pelco-P/D (Auto recognition)


Video
Resolution1080P(1920x1080) / 720P(1280x720)
Frame Rate25/30fps@1080P, 25/30/50/60fps@720P
Video Output
1-channel BNC high definition video output/ CVBS
standard definition video output (switchable)
Day/NightAuto(ICR) / Color / B/W
OSD MenuSupport
Backlight CompensationBLC / HLC / WDR (120dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
DefogSupport
Digital Zoom16x
Flip180°
Privacy MaskingUp to 24 areas

Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1
Interface
Video Interface1 port(BNC, 1.0V[p-p], 75Ω)
RS4851
Audio Interface1 channel in
Alarm I/O2/1

Electrical
Power SupplyAC24V/3A(±25%)
Power Consumption17W, 25W(IR On, Heater On)
Environmental
Operating Conditions-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection IP67
Vandal ResistanceIK10
Construction
Casing Metal
Dimensionsφ209x337.4mm
Net Weight5.8kg(12.79lb)
Gross Weight9.6kg(21.16lb)

Pro Series | DH-SD6CE225I-HC
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2MP PTZ
Camera
DH-SD6CE225I-HC
2MP 25x Starlight IR PTZ HDCVI
Camera, WDR, PAL
DH-SD6CE225IN-HC
2MP 25x Starlight IR PTZ HDCVI
Camera, WDR, NTSC
SD6CE225I-HC
2MP 25x Starlight IR PTZ HDCVI
Camera, WDR, PAL
SD6CE225IN-HC
2MP 25x Starlight IR PTZ HDCVI
Camera, WDR, NTSC
Accessories
PFB305W Wall Mount
AC24V/3APower Adapter
PFA111Mount Adapter
PFA140Power Box
PFB300C Ceiling Mount
PFA120Junction Box
PFA150Pole Mount
PFA151Corner Mount
PFB303S Parapet Mount
Included:
PFA140
Power Box
PFA150
Pole Mount
PFA120
Junction Box
PFB300C
Ceiling Mount
PFB303S
Parapet Mount
PFA151
Corner Mount

Optional:
PFB305W
Wall Mount

AC24V/3A
Power Adapter

Accessories
Dimensions (mm)

PFA111
Mount Adapter

Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.

Corner Mo u
n
t

P
o
w
er B
o
x Mou
n
t

PFB305W + P
F
A140

PFB305W + P
F
A151

PFB305W
P
F
A111 + PFB300C

PFB305W + P
F
A150

Ceiling Mo u
n
t

P
ole Mou
n
t

P
a
r
ap
e
t Mou
n
t

P
F
A111+ PFB303S

up
