Pro AI Series | DH-SD6AL233XA-HNR-IR

www.dahuasecurity.com

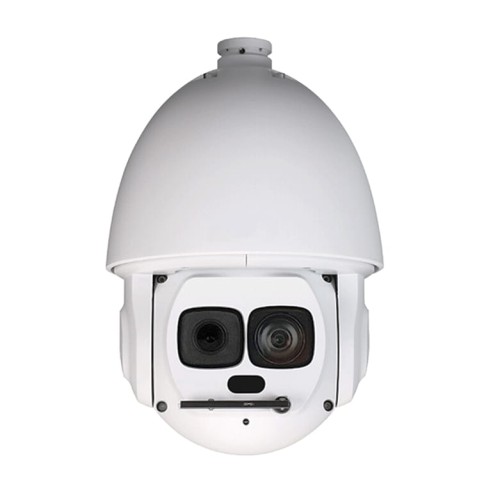

DH-SD6AL233XA-HNR-IR
2MP 33x Starlight + IR PTZ AI Network Camera

AI series products adopt the most advanced AI technologies, including
deep learning algorithms that primarily target people and vehicles,
which provides higher flexibility and accuracy for end-users. This enables
the Dahua AI series to offer various advanced applications such as Face
Recognition, ANPR, Metadata, People Counting, traffic data statistics,
etc. The complete lineup of Dahua AI includes network (PTZ) cameras,
network video recorders, servers, and more devices. Beyond seeing the
world, the power of AI allows devices to perceive the environment and
understand the world in a better way.
System Overview
Featuring powerful optical zoom and accurate pan/tilt/zoom perfor-
mance, this camera provides an all-in-one solution for capturing long
distance video surveillance for outdoor applications. Together with
infrared illumination and Starlight Technology, the camera is the perfect
solution for dark, lowlight applications. The series combines a day/night
mechanical IR cut filter for the highest image quality in variable lighting
conditions during the day, and True WDR for applications with direct
sunlight or glare.
Functions
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.001 lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, True WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Perimeter Protection
Automatically filtering out false alarms caused by animals, rustling
leaves, bright lights, etc. Enables system to act secondary recognition for
the targets. Improving alarm accuracy.
Environmental
Dahua cameras operate in extreme temperature environments, rated
for use in temperatures from -40 °C to +70 °C (-40 °F to +158 °F) with
95% humidity. The camera complies with the IK10 Vandal Resistance
impact rating. Subjected to rigorous dust and water immersion tests
and certified to the IP67 Ingress Protection rating makes it suitable for
demanding outdoor applications.
Protection
The camera allows for ±25% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 8KV lightning rat-
ing provides effective protection for both the camera and its structure
against lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer.
· 1/1.8" 2Megapixel CMOS
· Powerful 33x optical zoom
· Starlight technology
· Max. 50/60fps@1080P
· Deep-learning-based auto tracking and perimeter protection
· Support Hi-PoE
· IR distance up to 300m
· IP67

0.001Lux

IP67
Hi-PoE


Pro AI Series | DH-SD6AL233XA-HNR-IR

Technical Specification
Camera
Image Sensor
1/1.8" CMOS
Max. Resolution
1920 (H) x 1080 (V)
Effective Pixels
2MP
ROM
4GB
RAM
1GB
Electronic Shutter Speed
1/3–1/30000 s
Scanning System
Progressive
Min. Illumination
Color: 0.001Lux@F1.5
B/W: 0.0001Lux@F1.5
0Lux (IR light on)
IR Distance
300 m (984 ft)
IR On/Off Control
Zoom Prio/Manual/SmartIR
IR LEDs Number
1
Wiper
Support
Lens
Focal Length5.8 mm–191.4 mm
Max. ApertureF1.5–F4.8
Field of ViewH: 60.1°–3.2°; V: 35.3° –1.8°; D: 67.9°–3.7°
Optical Zoom33x
Focus ControlAuto/Semi-Auto/Manual
Close Focus Distance0.1 m–1 m (0.33 ft–3.28 ft)
Iris ControlAuto/Manual
DORI Distance
DetectObserveRecognizeIdentify
1655 m
(5429.80ft)
622 m
(2040.68ft)
331 m
(1085.96ft)
165 m
(541.34 ft)
PTZ
Pan/Tilt Range
Pan: 0°–360°
Tilt: -20°–+90°
Manual Control Speed
Pan: 0.1°/s–200°/s
Tilt: 0.1°/s–120°/s
Preset Speed
Pan: 240°/s
Tilt: 200°/s
Presets300
Tour8 (up to 32 presets per tour)
Pattern Number5
Scanning Number5
Speed AdjustmentSupport
Power-off MemorySupport
Idle MotionPreset/Tour/Pattern/Scanning
Protocol
DH-SD
Pelco-P/D (auto recognition)

www.dahuasecurity.com

Artifical Intelligence
Video Metadata
Support human, motor vehicle and non-motor vehicle
image capture.
Perimeter Protection
Tripwire and intrusion. Support alarm triggering by
target types (human and vehicle). Support filtering
false alarms caused by animals, rustling leaves, bright
lights, etc.
Auto TrackingSupport
General Intelligence
Event Trigger
Motion detection, video tampering, scene changing,
network disconnection, IP address conflict, illegal
access, and storage anomaly.
General IVSObject Abandoned/Missing
Video
CompressionH.265/H.265+/H.264+/H.264/MJPEG (sub stream)
Streaming Capability3 streams
Resolution
1080P (1920 x 1080); 1.3M (1280 x 960); 720P (1280
x 720); D1 (704 x 576/704 x 480); CIF (352 x 288/352
x 240)
Frame Rate
Main stream: 1080P/1.3M/720P (1–50/60fps)
Sub stream 1: D1/CIF (1–25/30fps)
Sub stream 2: 1080P/1.3M/720P/D1/CIF (1–25/30fps)
Bit Rate ControlVariable Bit Rate/Constant Bit Rate
Bit RateH.265/H.264: 3 kbps–20480 kbps
Day/NightAuto (ICR)/Color/B/W
BLC Support
WDR120 dB
HLCSupport
White Balance
Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/
Natural light/Street lamp
Gain ControlAuto/Manual
Noise Reduction2D/3D
Motion DetectionSupport
Region of InterestSupport
Electronic Image StabilizationSupport
DefogSupport
Digital Zoom16x
Flip0°/180°
Privacy MaskingUp to 24 areas
Audio
Compression
G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729;
PCM; MPEG2-Layer2
Certification
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4-2014
Port
Audio In1 (LINE IN; bare wire)

Accessories

Pro AI Series | DH-SD6AL233XA-HNR-IR

www.dahuasecurity.com

Audio Out1 (LINE OUT; bare wire)
Alarm Port7/2
Network
EthernetRJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP;
UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP;
RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Interoperability ONVIF Profile S&G; CGI
Streaming MethodUnicast/Multicast
User/Host 20 (Total bandwidth 48M)
Edge StorageFTP; Micro SD card (256G); P2P
Browser
IE7 and newer versions
Chrome 42 and older versions
Firefox 52 and older versions
Safari
Management SoftwareSmart Player; Smart PSS; DSS; Easy4ip
Smart PhoneIOS/Android
Power
Power Supply
AC24V/3A±25%
Hi-PoE
Power Consumption
20W
32W (IR on)
Environment
Operating Temperature -40°C to +70°C (-40°F to +158°F)
Operating Humidity≤95%RH
Ingress ProtectionIP67; TVS 8000V lightning proof; surge protection
Structure
CasingMetal
DimensionsΦ240 mm x 382 mm (9.45" x 15.04")
Net Weight5.8 kg (12.79 lb)
Gross Weight10.5 kg (23.15 lb)


Ordering Information
TypeModel Description
2MP PTZ
Camera
DH-SD6AL233XA-
HNR-IR
2MP 33x Starlight IR PTZ AI Network
Camera, WDR, PAL
DH-SD6AL233XAN-
HNR-IR
2MP 33x Starlight IR PTZ AI Network
Camera, WDR, NTSC
SD6AL233XA-HNR-IR
2MP 33x Starlight IR PTZ AI Network
Camera, WDR, PAL
SD6AL233XAN-HNR-IR
2MP 33x Starlight IR PTZ AI Network
Camera, WDR, NTSC
Included:

PFB303W
Wall Mount
PFA111
Mount Adapter
Optional:

PFA140
Power Box
PFB300C
Ceiling Mount
PFA120
Junction Box

PFA150
Pole Mount
PFA151
Corner Mount
PFB303S
Parapet Mount

Accessories
PFB303WWall Mount
PFA111Mount Adapter
AC24V/3APower Adapter
PFA140Power Box
PFB300CCeiling Mount
PFA120Junction Box
PFA150Pole Mount
PFA151Corner Mount
PFB303SParapet Mount

AC24V/3A
Power Adapter

Pro AI Series | DH-SD6AL233XA-HNR

www.dahuasecurity.com

Rev 001.001 © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

Dimensions (mm[inch])
