Description

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Lite Series | DH-SD49212T-HN

www.dahuasecurity.com
· 1/2.8” 2Megapixel STARVIS™ CMOS
· Powerful 12x optical zoom
· Starlight technology
· Max. 25/30fps@1080P
· IVS
· Support PoE+
· IR distance up to 100m
· IP66

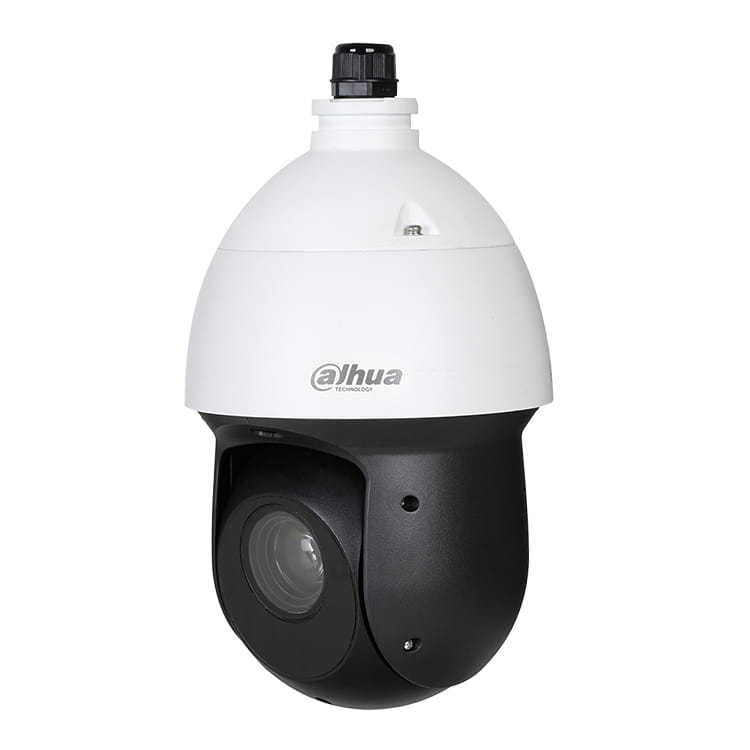

DH-SD49212T-HN
2MP 12x Starlight IR PTZ Network Camera

0.005Lux
System Overview

Featuring powerful optical zoom and accurate pan/tilt/zoom
performance, the camera provides a wide monitoring range and great
detail. The camera delivers 1080P resolution at 25/30fps. The camera is
equipped with smooth control, high quality image, and good protection,
meeting compact size demands of video surveillance applications.
Functions

Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.005 lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, True WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that
uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
flexible multi-frame reference structure and intelligent noise reduction
to deliver high-quality video without straining the network. Smart
H.265+ technology reduces bit rate and storage requirements by up to
70% when compared to standard H.265 video compression.
PFA Technology
PFA technology has innovatively introduced new methods of judgment
to ensure the accuracy and predictability of the direction of subject
distance adjustment. The result is a set of advanced focusing algorithms.
PFA ensures clarity of the image throughout the process of zooming
and shortens focus time. The realization of PFA technology substantially
improves user experience and increases product value.
Environmental
Dahua cameras operate in extreme temperature environments, rated
for use in temperatures from -40 °C to +70 °C (-40 °F to +158 °F) with
95% humidity. Subjected to rigorous dust and water immersion tests
and certified to the IP66 Ingress Protection rating makes it suitable for
demanding outdoor applications.
Protection
The camera allows for 6KV lightning rating,which provides effective
protection for both the camera and its structure against lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer.

www.dahuasecurity.com
Lite Series | DH-SD49212T-HN

Technical Specification
Camera
Image Sensor 1/2.8” STARVIS™ CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
RAM/ROM1024M/128M
Scanning SystemProgressive
Electronic Shutter Speed1/1s~1/30,000s
Minimum Illumination
Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6;
0Lux@F1.6 (IR on)
S/N RatioMore than 50dB
IR DistanceDistance up to 100m (328ft)
IR On/Off ControlAuto/Manual
IR LEDs6
Lens
Focal Length5.3mm~64mm
Max. ApertureF1.6 ~ F4.4
Angle of ViewH: 58.2° ~ 4.8°
Optical Zoom12x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm
DORI Distance
*Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
883m(2897ft) 353m(1158ft) 177m(581ft) 88m(289ft)
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Manual Control SpeedPan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
Preset SpeedPan: 240° /s; Tilt: 200° /s
Presets300
PTZ Mode5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after
power failure
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no
command in the specified period
Protocol DH-SD
Intelligence
Event Trigger
Motion detection, Video tampering, Network
disconnection, IP address conflict, Illegal access,
Storage anomaly
Auto TrackingN/A
IVSTripwire, Intrusion,Abandoned/Missing

Advanced Intelligent FunctionsFace Detection
Video
CompressionH.265+/H.265/H.264+/H.264
Streaming Capability3 Streams
Resolution
1080P(1920x1080) /720P(1280x720)/
D1(704x576/704x480)/CIF(352x288/352x240)
Frame Rate
Main stream: 1080P/720P(1 ~ 25/30fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 720P/D1/CIF(1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH.265/H.264: 448K ~ 8192Kbps
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / WDR(120dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Motion DetectionSupport
Region of InterestSupport
Electronic Image Stabilization
(EIS)
N/A
Defog Support
Digital Zoom16x
Flip 180°
Privacy MaskingUp to 24 areas
Audio
CompressionG.711a/G.711Mu/G.726/AAC
Network
EthernetRJ-45 (10XBase-T/100Base-TX)
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
InteroperabilityONVIF Profile S&G, API
Streaming MethodUnicast / Multicast
Max. User Access20 users
Edge Storage
NAS (Network Attached Storage),Local PC for
instant recording, Micro SD card 256GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Lite Series | DH-SD49212T-HN
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2MP PTZ
Camera
DH-SD49212T-HN
2MP 12x Starlight IR PTZ Network
Camera, WDR, PAL
DH-SD49212TN-HN
2MP 12x Starlight IR PTZ Network
Camera, WDR, NTSC
SD49212T-HN
2MP 12x Starlight IR PTZ Network
Camera, WDR, PAL
SD49212TN-HN
2MP 12x Starlight IR PTZ Network
Camera, WDR, NTSC
Accessories
PFB305W Wall Mount
PFA111Mount Adapter
DC12V/3APower Adapter
PFA140Power Box
PFB300C Ceiling Mount
PFA120Water-proof Junction Box
PFA150Pole Mount
PFA151Corner Mount
PFB303S Parapet Mount

Interface
Video InterfaceN/A
RS485N/A
Audio I/O 1/1
Alarm I/O2/1
Electrical
Power SupplyDC 12V/3A, PoE+(802.3at)
Power Consumption13W, 22W (IR on, Heater on)
Environmental
Operating Conditions-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection IP66
Vandal ResistanceN/A
Construction
CasingMetal
Dimensions Φ160(mm) x 295(mm)
Net Weight3kg(6.61lb)
Gross Weight4.2kg(9.26lb)
Accessories
Included:
PFA111
Mount Adapter
PFB305W
Wall Mount
PFA140
Power Box
PFA150
Pole Mount
PFA120
Junction Box
PFB300C
Ceiling Mount
PFB303S
Parapet Mount
PFA151
Corner Mount

DC12V/3A
Power Adapter
Optional：

t

t

PF A111 + PFB300C

PFB305W + PF A151

PFB305W + PF A120

PFB305W + PF A150

Po

Pa ra t

t

Po

PF A111+ PFB303S

PFB305W + PF A140

Lite Series | DH-SD49212T-HN
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Dimensions (mm)
