SD42212I-HC

Availability: 0
Price: €394.73 394.73
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: DAHUA
Product code: SD42212I-HC

Description

Lite Series | DH-SD42212I-HC    www.dahuasecurity.com  DH-SD42212I-HC   2MP 12x Starlight PTZ HDCVI Camera    · 1/2.8” 2Megapixel STARVIS™ CMOS  · Powerful 12x optical zoom  · Starlight technology  · Max. 25/30fps@1080P, 25/30/50/60fps@720P  · 120dB true WDR, 3D DNR  · IP66, IK10     System Overview    Featuring with powerful optical zoom and accurate pan/tilt/zoom  performance, the SD42 series PTZ camera can provide large monitoring  range and great detail. The camera delivers 1080P resolution at 25/30  fps, with 12x optical zoom. and has very excellent low light performance  due to adopting the latest starlight technology. SD42 series PTZ is  equipped with quick and smooth control, high quality image and good  protection, which make it can meet most of the requirements of video  surveillance applications.   Functions    Simplicity  HDCVI technology inherits the born feature of simplicity from traditional  analog surveillance system, making itself a best choice for investment  protection. HDCVI system can seamlessly upgrade the traditional  analog system without replacing existing coaxial cabling. The plug and  play approach enables full HD video surve...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Lite Series | DH-SD42212I-HC

www.dahuasecurity.com

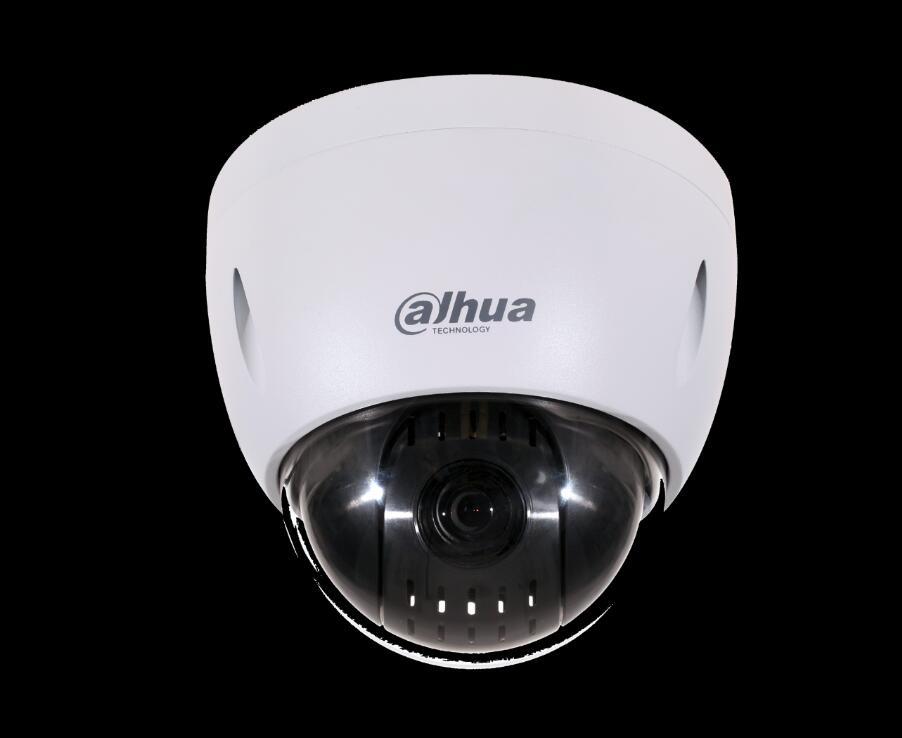

DH-SD42212I-HC
2MP 12x Starlight PTZ HDCVI Camera

· 1/2.8” 2Megapixel STARVIS™ CMOS
· Powerful 12x optical zoom
· Starlight technology
· Max. 25/30fps@1080P, 25/30/50/60fps@720P
· 120dB true WDR, 3D DNR
· IP66, IK10

System Overview

Featuring with powerful optical zoom and accurate pan/tilt/zoom
performance, the SD42 series PTZ camera can provide large monitoring
range and great detail. The camera delivers 1080P resolution at 25/30
fps, with 12x optical zoom. and has very excellent low light performance
due to adopting the latest starlight technology. SD42 series PTZ is
equipped with quick and smooth control, high quality image and good
protection, which make it can meet most of the requirements of video
surveillance applications.
Functions

Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional
analog system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring a network.
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.005 lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology,
vivid pictures are achieved even in the most intense contrast lighting
conditions. For applications with both bright and low lighting conditions
that change quickly, true WDR (120dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Environmental
With a temperature range of -30 °C to +60 °C (-22 °F to +140°F), the
camera is designed for extreme temperature environments. The camera
complies to an IK10 impact rating making it capable of withstanding the
equivalent of 55 kg (120 lbs) of force. Subjected and certified to rigorous
dust and water immersion tests, the IP66 rating makes it suitable for
demanding applications.
Protection
This camera suits even the harsh conditions for applications. Its 2KV
lightning rating provides protection against the camera and its structure
from the effects of lightning.

www.dahuasecurity.com
Lite Series | DH-SD42212I-HC

Technical Specification
Camera
Image Sensor 1/2.8” STARVIS™ CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
Scanning SystemProgressive
Electronic Shutter Speed
PAL: 1/3s~1/30,000s
NTSC: 1/4s~1/30,000s
Minimum IlluminationColor: 0.005Lux@F1.6; B/W:0.0005Lux@F1.6
S/N RatioMore than 50dB
IR DistanceN/A
IR On/Off ControlN/A
IR LEDsN/A
Lens
Focal Length5.3mm~64mm
Max. ApertureF1.6 ~ F3.0
Angle of ViewH: 58.2° ~ 4.8°
Optical Zoom12x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm
DORI Distance
*Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
883m(2897ft) 353m(1158ft) 177m(581ft) 88m(289ft)
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -2° ~ 90°,auto flip 180°
Manual Control SpeedPan: 0.1° ~300° /s; Tilt: 0.1° ~120° /s
Preset SpeedPan: 300° /s; Tilt: 200° /s
Presets300
PTZ Mode5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after
power failure
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no
command in the specified period
ProtocolDH-SD, Pelco-P/D (Auto recognition)
Video
Resolution1080P(1920x1080)/720P(1280x720)
Frame Rate25/30fps@1080P, 25/30/50/60fps@720P


Video Output
1-channel BNC high definition video output/ CVBS
standard definition video output (switchable)
Day/NightAuto(ICR) / Color / B/W
OSD Menu Support
Backlight CompensationBLC / HLC / WDR(120dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Digital Zoom16x
Flip 180°
Privacy MaskingUp to 24 areas
Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1
Interface
Video Interface1
Audio Interface1 channel in
RS4851
Alarm I/O2/1
Electrical
Power SupplyAC24V/1.5A(±10%)
Power Consumption10W
Environmental
Operating Conditions-30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH
Ingress Protection IP66
Vandal ResistanceIK10
Construction
CasingMetal
Dimensions Φ170(mm)x155(mm)
Net Weight1.8kg(3.97lb)
Gross Weight3.3kg(7.28lb)

Lite Series | DH-SD42212I-HC
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2MP PTZ
Camera
DH-SD42212I-HC
2MP 12x Starlight PTZ HDCVI
Camera, WDR, PAL
DH-SD42212IN-HC
2MP 12x Starlight PTZ HDCVI
Camera, WDR, NTSC
SD42212I-HC
2MP 12x Starlight PTZ HDCVI
Camera, WDR, PAL
SD42212IN-HC
2MP 12x Starlight PTZ HDCVI
Camera, WDR, NTSC
Accessories
PFB302S Wall Mount
PFA102Mount Adapter
AC24V/1.5APower Adapter
PFB300C Ceiling Mount
PFA150Pole Mount
PFA151Corner Mount

Accessories
Included:
PFB302S
Wall Mount
PFA102
Mount Adapter
AC24V/1.5A
Power Adapter
PFB300C
Ceiling Mount
PFA150
Pole Mount
PFA151
Corner Mount
Optional:
Dimensions (mm)

170mm
120mm
mm
96mm

Wa ll Moun t

Corner Moun t

PF A102 + PFB302S + PF A151
PF A102 + PFB302S
PF A102 + PFB300C
PF A102 + PFB302S + PF A150

Ceiling Moun t

Po le Moun t
