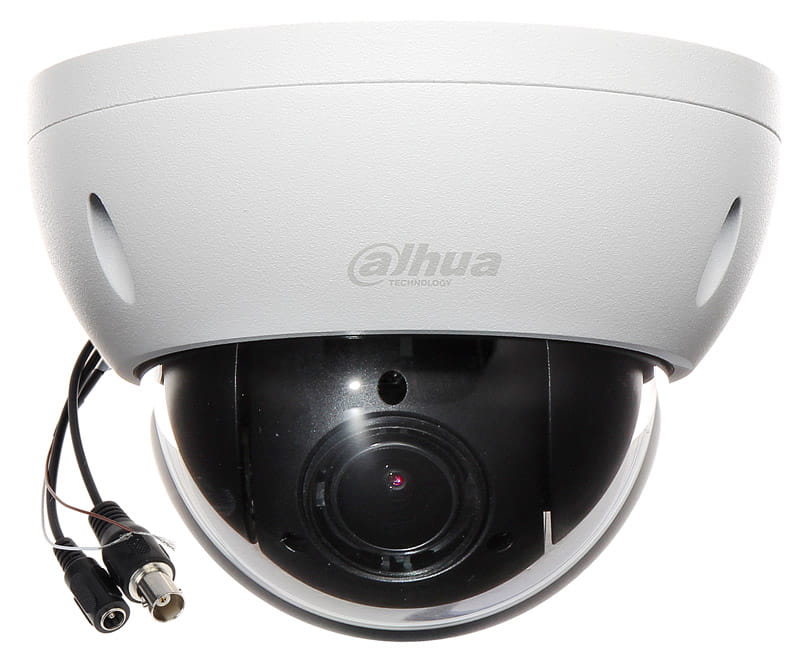

SD22204I-GC

Availability: 0
Price: €227.82 227.82
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: DAHUA
Product code: SD22204I-GC

Description

Lite Series | DH-SD22204I-GC     System Overview    Featuring with powerful optical zoom and accurate pan/tilt/zoom  performance, the SD22 series PTZ camera can provide large monitoring  range and great detail. The camera delivers 1080P resolution at 25/30  fps, with 4x optical zoom. SD22 series PTZ is equipped with smooth  control, high quality image and good protection, which make it can  meet small size of video surveillance applications.   Functions  Simplicity  HDCVI technology inherits the born feature of simplicity from traditional  analog surveillance system, making itself a best choice for investment  protection. HDCVI system can seamlessly upgrade the traditional  analog system without replacing existing coaxial cabling. The plug and  play approach enables full HD video surveillance without the hassle of  configuring a network.  Environmental  With a temperature range of -30 °C to +60 °C (-22 °F to +140 °F), the  camera is designed for extreme temperature environments. The camera  complies to an IK10 impact rating making it capable of withstanding the  equivalent of 55 kg (120 lbs) of force. Subjected and certified to rigorous  dust and water immersion tests, the IP66 rati...

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Lite Series | DH-SD22204I-GC

System Overview

Featuring with powerful optical zoom and accurate pan/tilt/zoom
performance, the SD22 series PTZ camera can provide large monitoring
range and great detail. The camera delivers 1080P resolution at 25/30
fps, with 4x optical zoom. SD22 series PTZ is equipped with smooth
control, high quality image and good protection, which make it can
meet small size of video surveillance applications.
Functions
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional
analog system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring a network.
Environmental
With a temperature range of -30 °C to +60 °C (-22 °F to +140 °F), the
camera is designed for extreme temperature environments. The camera
complies to an IK10 impact rating making it capable of withstanding the
equivalent of 55 kg (120 lbs) of force. Subjected and certified to rigorous
dust and water immersion tests, the IP66 rating makes it suitable for
demanding applications.
www.dahuasecurity.com
· 1/2.7” 2Megapixel CMOS
· Powerful 4x optical zoom
· 120dB true WDR , 3D DNR
· Max. 25/30fps@1080P, 25/30/50/60fps@720P
· IP66, IK10

DH-SD22204I-GC
2MP 4x PTZ HDCVI Camera

IP66


www.dahuasecurity.com
Lite Series | DH-SD22204I-GC

Technical Specification
Camera
Image Sensor1/2.7” CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
Scanning SystemProgressive
Electronic Shutter Speed
PAL: 1/3s~1/30,000s
NTSC: 1/4s~1/30,000s
Minimum IlluminationColor: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
S/N RatioMore than 55dB
IR DistanceN/A
IR On/Off ControlN/A
IR LEDsN/A
Lens
Focal Length2.7mm~11mm
Max. ApertureF1.6
Angle of ViewH: 112.5° ~ 30°
Optical Zoom4x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm
DORI Distance
*Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
120m(394ft) 48m(157ft) 24m(79ft) 12m(39ft)
PTZ
Pan/Tilt RangePan: 0° ~ 355°; Tilt: 0° ~ 90°
Manual Control SpeedPan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s
Preset SpeedPan: 100° /s; Tilt: 60° /s
Presets300
PTZ Mode8 Tour
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after
power failure
Idle Motion
Activate Preset/Tour if there is no command in the
specified period
ProtocolDH-SD, Pelco-P/D (Auto recognition)
Video
Resolution1080P(1920x1080)/720P(1280x720)
Frame Rate25/30fps@1080P, 25/30/50/60fps@720P
Video Output
1-channel BNC high definition video output/ CVBS
standard definition video output (switchable)


Day/NightAuto(ICR) / Color / B/W
OSD Menu Support
Backlight CompensationBLC / HLC / WDR(120dB)
White BalanceAuto,ATW,Indoor,Outdoor,Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Digital Zoom16x
Flip 180°
Privacy MaskingN/A
Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1
Interface
Video Interface1
Audio InterfaceN/A
RS4851
Alarm I/ON/A
Electrical
Power SupplyDC 12V/1.5A
Power Consumption10W
Environmental
Operating Conditions-30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH
Ingress Protection IP66
Vandal ResistanceIK10
Construction
CasingMetal
Dimensions Φ122 (mm) x 89 (mm)
Net Weight0.6kg(1.32lb)
Gross Weight0.65kg(1.43lb)

Lite Series | DH-SD22204I-GC
Rev 001.001© 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2MP PTZ
Camera
DH-SD22204I-GC
2MP 4x PTZ HDCVI Camera,
WDR, PAL
DH-SD22204IN-GC
2MP 4x PTZ HDCVI Camera,
WDR, NTSC
SD22204I-GC
2MP 4x PTZ HDCVI Camera,
WDR, PAL
SD22204IN-GC
2MP 4x PTZ HDCVI Camera,
WDR, NTSC
Accessories
PFA137Mount Adapter
DC12V/2APower Adapter
PFB203W Wall Mount
PFB200C In-ceiling Mount
PFA152-EPole Mount

Accessories
PFA137
Mount Adapter
PFB203W
Wall Mount
PFA152-E
Pole Mount
PFB200C
Ceiling Mount
DC12V/2A
Power Adapter
Optional:
Dimensions (mm)

mm

mm

mm

In-ceiling Moun t

x Moun t

PF A137
PFB200C
PFB203W
PFB203W + PF A152-E

Wa ll Moun t

Po le Moun t
