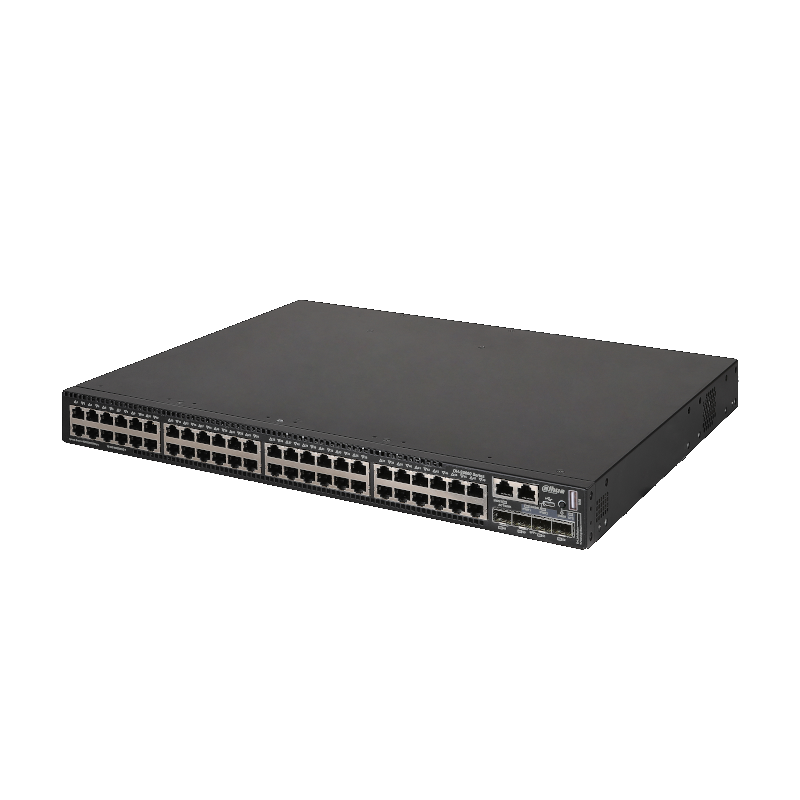

S5600-48GT4XF

www.dahuasecurity.com  DH -S56 0 0 - 4 8G T4XF  Aggregation Switch    · Rich layer 3 features.  · Reliable hardware design with modular dual power supply.  · High-density 10/100/1000 Base-T autosensing Ethernet ports and   1G/10G SFP + fiber ports onboard  · As an access device on enterprise networks, this switch can provide   high-density GE connections for desktop applications.  · DH-S5600-48GT4XF—Provides 48 x 10/100/1000 BASE-T ports and   4 x 1G/10 G BASE-X SFP+ ports.  DH-S5600-48GT4XF     System Overview  DH-S5600-48GT4XF is robust (modular dual power), and easy to deploy  Layer 3 access switching solution that offers enhanced security and 10GbE  uplinks, BGP and Multicast, IRF enabled, flexible management.     Functions  Virtualization technologies - IRF2  DH-S5600-48GT4XF is pre-built with Intelligent Resilient Framework 2  (IRF2). IRF2 provides the following benefits:  • High scalability: With IRF2, plug-n-play device aggregation can be  achieved by adding one or more switches into the IRF2 stack and  enabling IRF2 stacking on the new device. New devices can be managed  with a single IP, and upgraded at the same time to reduce network  expansion cost.  • L...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.dahuasecurity.com
DH -S56 0 0 - 4 8G T4XF
Aggregation Switch

· Rich layer 3 features.
· Reliable hardware design with modular dual power supply.
· High-density 10/100/1000 Base-T autosensing Ethernet ports and
1G/10G SFP + fiber ports onboard
· As an access device on enterprise networks, this switch can provide
high-density GE connections for desktop applications.
· DH-S5600-48GT4XF—Provides 48 x 10/100/1000 BASE-T ports and
4 x 1G/10 G BASE-X SFP+ ports.
DH-S5600-48GT4XF

System Overview
DH-S5600-48GT4XF is robust (modular dual power), and easy to deploy
Layer 3 access switching solution that offers enhanced security and 10GbE
uplinks, BGP and Multicast, IRF enabled, flexible management.

Functions
Virtualization technologies - IRF2
DH-S5600-48GT4XF is pre-built with Intelligent Resilient Framework 2
(IRF2). IRF2 provides the following benefits:
• High scalability: With IRF2, plug-n-play device aggregation can be
achieved by adding one or more switches into the IRF2 stack and
enabling IRF2 stacking on the new device. New devices can be managed
with a single IP, and upgraded at the same time to reduce network
expansion cost.
• Load balancing: IRF2 supports cross-device link aggregation, upstream
and downstream can be connected to more than one physical link, which
creates another layer of network redundancy and boosts the network
resource utilization.
High availability
DH-S5600-48GT4XF supports 1+1 power module redundancy. When a
power or temperature event occurs, the switch generates alarms.
In addition to hardware redundancy, the switch provides a variety of
node and link redundancy and protection mechanisms, including:
Ethernet link aggregation, including LACP.
Spanning tree protocols, including STP, RSTP and MSTP.
Smart Link, which protects faster link switchover for dual uplink network.
Rapid Ring Protection Protocol (RRPP).
Abundant QoS features
DH-S5600-48GT4XF offers abundant QoS features, including:
• Packet filtering based on packet header fields from Layer 2 through
Layer 4, including source MAC, destination MAC, source IP, destination
IP, TCP/UDP port number, protocol type, and VLAN.
• Flexible queuing and scheduling algorithms configured on a per-port
or per-queue basis, including strict priority (SP), weighted round robin
(WRR), and SP+WRR.
• Committed access rate (CAR) with the minimum granularity at 8 kbps.
Port mirroring in both outbound and inbound directions for network
monitoring and troubleshooting.
Outstanding management capacity
DH-S5600-48GT4XF provides a variety of management features and is easy
to manage. It offers the following device management features:
• Provides multiple management interfaces, including the console port,
micro USB port, and out-of-band management Ethernet port.
• Supports configuration and management from CLI.
• Supports multiple access methods, including SNMPv1/v2c/v3, Telnet, and
more secure SSH 2.0.
• To help customers gain visibility into network application traffic, the switch
provides a variety of traffic monitoring and analytic tools, including local port
mirroring and Layer 2 remote port mirroring. With these tools, customers
can specify multiple monitor ports and collect network traffic data to
evaluate network health status, create traffic analysis reports, perform traffic
engineering, and optimize resource allocation.

www.dahuasecurity.com

Technical Specification
Switching capacity598Gbps
Packet forwarding rate144 Mpps
Packet buffer memory3 Mbit
Dimensions (H x W x D)43.6 x 440 x 360 mm (1.72 x 17.32 x 14.17 in)
Weight≤ 8.5 kg (18.74 lb)
Management Ethernet ports1
Console ports
1 x RJ-45 console port
1 x Micro-USB port
Only the Micro-USB port is available if you connect
both ports.
Service ports
48 x 10/100/1000Base-T autosensing Ethernet ports
4 x 1G/10G SFP+ ports
Rated input voltageAC: 100 VAC to 240 VAC @ 50 Hz/60 Hz
Min. power consumptionDual AC inputs: 30 W
Max. power consumptionDual AC inputs: 56 W
Operating temperature0ºC to 45ºC (32°F to 113°F)
Operating humidity5% RH to 95% RH, non-condensing
OpenFlowOpenFlow 1.3
Link aggregation
1G/10G port aggregation
Static aggregation
Dynamic aggregation
Multichassis link aggregation
Port features
802.3x flow control (full-duplex)
Storm suppression based on port bandwidth
percentage
Storm suppression based on PPS
Storm suppression based on BPS
Jumbo frameSupported
MAC address table
16K MAC address entries
Blackhole MAC address
MAC learning limit
VLAN
Port-based VLAN
MAC-based VLAN
Protocol-based VLAN
IP subnet based VLAN
QinQ and flexible QinQ
VLAN mapping
Voice VLAN
MVRP

Loop-free redundant Layer 2
topology
STP/RSTP/MSTP and PVST
Smart Link
RRPP
G.8032 Ethernet ring protection switching (ERPS)
DHCP
DHCP client
DHCP snooping
DHCP relay
DHCP server
DHCP snooping Option 82/DHCP relay Option 82
IRF2
IRF2
Distributed device management, distributed link
aggregation, and distributed resilient routing
Stacking through standard Ethernet interfaces
Local device stacking and remote device stacking
IP routing
12K IPV4 routing entries
Static routing
RIPv1/v2 and RIPng
OSPFv1/v2/v3
BGP and BGP4+ for IPv6
IS-IS
VRRP/VRRPv3
IPv6
Neighbor Discovery (ND)
PMTU
IPv6-Ping, IPv6-Tracert, IPv6-Telnet, and IPv6-TFTP
Multicast
IGMP Snooping v1/v2/v3 and MLD Snooping v1/v2
PIM Snooping
MLD Proxy
Multicast VLAN
IGMP v1/v2/v3 and MLD v1/v2
PIM-DM, PIM-SM, and PIM-SSM
MSDP and MSDP for IPv6
MBGP and MBGP for IPv6
Mirroring
Flow mirroring
N:4 port mirroring
Local port mirroring and remote port mirroring
QoS/ACL
Layer 2 to Layer 4 packet filtering
Traffic classification based on source MAC,
destination MAC, source IP, destination IP, TCP/UDP
port number, and VLAN
Time range-based ACL
DH-S5600-48GT4XF

www.dahuasecurity.com
Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
DH-S5600-48GT4XF

QoS/ACL
Bi-directional ACLs (inbound and outbound)
VLAN-based ACL issuing
Rate limit for receiving and transmitting packets (a
minimum CIR of 8 Kbps)
Packet redirection
802.1p priority and DSCP priority
Committed Access Rate (CAR)
Eight queues per port (including the CPU port)
Flexible queue scheduling algorithms based on both
port and queue, including SP, WRR, WFQ, SP+WRR,
and WDRR
WRED
Security
Hierarchical user management and password
protection
802.1X authentication and centralized MAC address
authentication
Guest VLAN
RADIUS authentication
SSH 2.0
Port isolation
Port security
Portal authentication
DHCP snooping
Dynamic ARP detection
BPDU guard and root guard
uRPF
IP/Port/MAC binding
Plaintext authentication and MD5 authentication for
OSPF and RIPv2 packets
Public Key Infrastructure (PKI)
Management and maintenance
Loading and upgrading through XMODEM/FTP/TFTP
Configuration through CLI, Telnet, and console ports
SNMPv1/v2/v3
System log, alarming based on severity, debugging
information output
NTP
Power, fan, and temperature alarming
Ping and Tracert
Virtual Cable Test (VCT)
Device Link Detection Protocol (DLDP)
LLDP
Loopback detection

Installation19-inch rack mounted
Power saving
802.3az EEE
Automatic port power-down
Scheduled port power-down (schedule job)
