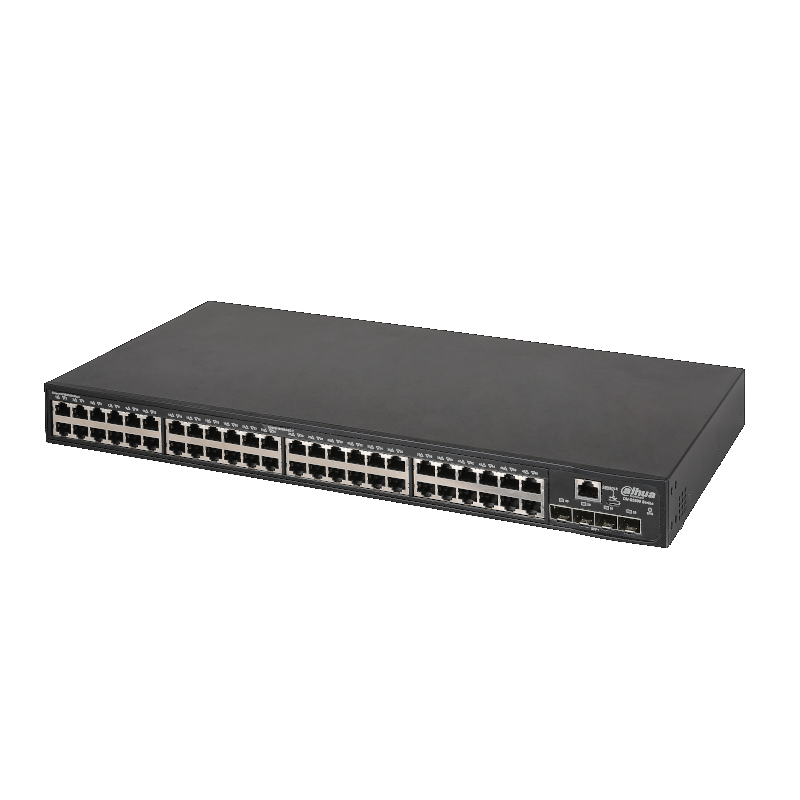

S5500-48GT4XF-E
product unavailable
add to wish list
Description
Aggregation Switch | DH-S5500-48GT4XF-E www.dahuasecurity.com DH-S5500-48GT4XF-E System Overview DH-S5500-48GT4XF-E switch is a simple, cost-effective and easy-to-de- ploy layer 2+ access switching solution. It offers enhanced security, high- density GE and 10GE uplinks, static route, RIP, OSPF and IRF, flexible management, which meet the requirements of SME access, enterprise desktop access and high density campus access. Functions Intelligent Resilient Framework 2 (IRF2) IRF2 provides the following benefits: High scalability: Plug-n-play device aggregation can be achieved by add- ing one or more switches into the IRF2 stack and enabling IRF2 stacking on the new device. New devices can be managed with a single IP, and upgraded at the same time to reduce network expansion cost. High reliability: The IRF2 1:N backup technology allows each sub device in the IRF2 stack to serve as the backup of the main device, creating control and data link redundancy. Availability: DH-S5500-48GT4XF-E implements IRF2 through standard Gigabit Ethernet (1GE) ports or Ten Gigabit Ethernet (10GE) ports which allocates bandwidth for business and application access and reasonably splits local traff...
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Aggregation Switch | DH-S5500-48GT4XF-E
www.dahuasecurity.com
DH-S5500-48GT4XF-E
System Overview
DH-S5500-48GT4XF-E switch is a simple, cost-effective and easy-to-de-
ploy layer 2+ access switching solution. It offers enhanced security, high-
density GE and 10GE uplinks, static route, RIP, OSPF and IRF, flexible
management, which meet the requirements of SME access, enterprise
desktop access and high density campus access.
Functions
Intelligent Resilient Framework 2 (IRF2)
IRF2 provides the following benefits:
High scalability: Plug-n-play device aggregation can be achieved by add-
ing one or more switches into the IRF2 stack and enabling IRF2 stacking
on the new device. New devices can be managed with a single IP, and
upgraded at the same time to reduce network expansion cost.
High reliability: The IRF2 1:N backup technology allows each sub device
in the IRF2 stack to serve as the backup of the main device, creating
control and data link redundancy.
Availability: DH-S5500-48GT4XF-E implements IRF2 through standard
Gigabit Ethernet (1GE) ports or Ten Gigabit Ethernet (10GE) ports which
allocates bandwidth for business and application access and reasonably
splits local traffic and upstream traffic. IRF2 rules not only able to be
obeyed within and across the rack, but also across the LAN.
Abundant QoS
DH-S5500-48GT4XF-E supports packet filtering at layer 2 through layer
4, and traffic classification based on source MAC addresses, destination
MAC addresses, source IP addresses, destination IP addresses, TCP/UDP
port numbers, protocol types, and VLANs. It supports flexible queue
scheduling algorithms based on ports and queues, including strict prior-
ity (SP), weighted round Robin (WRR) and SP+WRR. The DH-S5500-XF-E
switch series enables committed access rate (CAR) with the minimum
granularity of 8 kbps. It supports port mirroring in the outbound and
inbound directions, to monitor the packets on the specific ports, and
to mirror the packets to the monitor port for network detection and
troubleshooting.
High Availability
DH-S5500-48GT4XF-E supports packet filtering at layer 2 through layer
4, and traffic classification based on source MAC addresses, destination
MAC addresses, source IP addresses, destination IP addresses, TCP/UDP
port numbers, protocol types, and VLANs. It supports flexible queue
scheduling algorithms based on ports and queues, including strict prior-
ity (SP), weighted round Robin (WRR) and SP+WRR. The DH-S5500-XF-E
switch series enables committed access rate (CAR) with the minimum
granularity of 8 kbps. It supports port mirroring in the outbound and
inbound directions, to monitor the packets on the specific ports, and
to mirror the packets to the monitor port for network detection and
troubleshooting.
Comprehensive Security Control Policies
DH-S5500-48GT4XF-E supports innovative single-port multi-authen-
tication function, and the access authentication modes supported by
different clients are different.
DH-S5500-48GT4XF-E supports SSH V2 (Secure Shell V2) to secure
information security, and strong authentication protect the Ethernet
network switch from attacks such as IP address spoofing and clear text
interception.
ARP attack and ARP virus are major threats to LAN security, so
DH-S5500-48GT4XF-E comes with diverse ARP protection functions such
as ARP Detection to challenge the legitimacy of client, validate the ARP
packets, and set a speed limit for ARP to prevent ARP swarm attacks
from targeting CPU.
·Intelligent Resilient Framework 2 (IRF2)
·Comprehensive security control policies
·Excellent manageability
·High availability
Aggregation Switch | DH-S5500-48GT4XF-E
Technical Specification
Hardware Feature
Ethernet Port
48 x 10/100/1000 Mbps ports
Optical Port
4 x 1/10 Gbps Base-X ports
Console Port
1
Power Supply
One power inclued
Support single power
100–240V AC 50–60 Hz (internal)
Power Consumption
Idling: 19W
Full load: 44W
Operating Temperature
0°C to 45°C (32°F to 113°F)
Operating Humidity
5%RH–95%RH
Storage Temperature
–40°C to 70°C (–40°F to 158°F)
Performance
LayerLayer 2+
ManagedYes
Switching Capacity336 Gbps
Packet Forwarding Rate132Mpps
Packet Buffer Memory24 Mbit
MAC Table Size16K
VLAN Amount 4094 Entries
ARP Table1K Entries
IPv4 Routing Table1024 Entries
QoS Queue8 Entries
Jumbo Frame10,000 Byte
ACL Table
1024 Entries (IPV4)
512 Entries (IPV6)
Features
VLAN
Port-based VLAN
MAC-based VLAN
Protocol-based VLAN
QinQ and selective QinQ
VLAN mapping
Voice VLAN
GVRP
Ring Network Protocol
STP/RSTP/MSTP/PVST
Smart Link
RRPP
G.8032 ERPS
DHCP
DHCP client
DHCP snooping
DHCP snooping option82
DHCP relay
DHCP server
DHCP auto-config
Port Aggregation
1GE/10GE port aggregation
Dynamic aggregation
Static aggregation
Cross-device aggregation
www.dahuasecurity.com
Mirroring
Port mirroring
RSPAN
Multicast
IGMP Snooping /MLD Snooping
Multicast VLAN
IRF
Distributed device management, distributed link
aggregation, and distributed resilient routing
Stacking through standard Ethernet interfaces
Local device stacking and remote device stacking
Security
Hierarchical user management and password
protection
AAA authentication support
RADIUS authentication
HWTACACS
SSH2.0
Port isolation
802.1X authentication, centralized MAC authentication
Port security
IP Source Guard
HTTPs
ACL/QoS
802.1p/DSCP priority marking
Packet filtering function
SP/WRR/SP + WRR queue scheduling
Port-based speed limit
Stream-based redirection
Time period
System Maintenance
Debugging information output
Ping, Tracert
Telnet remote maintenance
NQA
DLDP
Virtual cable test
Network Management
Command line interface (CLI) configuration
Telnet remote configuration
Configuration via console port
SNMP V1/V2/V3
WEB network management
System log
Power, fan, temperature alarm
General
Thunderproof
Common mode: 2kV
Differential mode: 1kV
Net Weight3.5 kg (7.72 lb)
Gross Weight4.40 kg (9.70 lb)
Product Dimensions440 mm x230 mmx43.6 mm(17.32" x 9.06" x 1.72" )
Packaging Dimensions540 mmx 340 mmx90 mm (21.26" x 13.39" x 3.54" )
Aggregation Switch | DH-S5500-48GT4XF-E
Ordering Information
TypeModel Description
SFP Module
PFT3950
1.25 G 850 nm, 500 m, LC, Multi-mode
[optional]
PFT3960
1.25 G 1310/1550 nm, 20 km, LC, Single-mode
[optional]
PFT3970
1.25 G 1550/1310 nm, 20km, LC, Single-mode
[optional]
PFTOTSFP-1270R-
20-SMF
10 G 1310/1270 nm, 20 km, LC, Single-mode
[optional]
PFTOTSFP-1270T-
20-SMF
10 G 1270/1310 nm, 20km, LC, Single-mode
[optional]
PFTOTSFP-850-
MMF
10 G 850 nm, 20 km, LC, Multi-mode [optional]
www.dahuasecurity.com
Rev 001.001 © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
