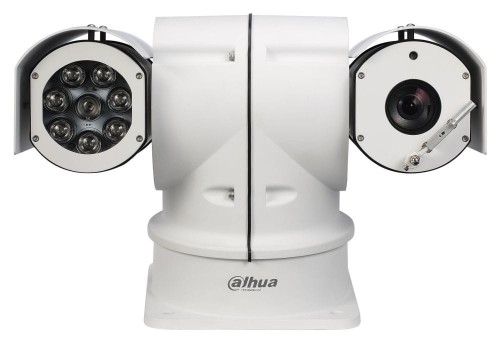

PTZ35230U-IRA-N

Positioning System | DH-PTZ35230U-IRA-N     System Overview    Featuring with powerful optical zoom and accurate pan/tilt/zoom  performance, this series provides an all-in-one solution for capturing  long distance video surveillance for outdoor applications. Together  with its infrared illumination and Starlight Technology, the camera  is the perfect solution for dark, lowlight applications. The series  combines a day/night mechanical IR cut filter for the highest image  quality for variable lighting conditions during the day and True WDR for  applications with direct sunlight or glare.   Functions  Starlight Technology  Thanks to our experience and expertise in hardware and software  development , the camera is equipped with the latest image processing  algorithm, high performance hardware and high quality optical  components, which make the camera have very exellent low light  performance. In most conditions, this camera can deliver clear, bright  and low-noise color images.  Wide Dynamic Range  Embedded with industry leading wide dynamic range (WDR) technology,  vivid pictures are achieved even in the most intense contrast lighting  conditions. For applications with both bright a...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Positioning System | DH-PTZ35230U-IRA-N

System Overview

Featuring with powerful optical zoom and accurate pan/tilt/zoom
performance, this series provides an all-in-one solution for capturing
long distance video surveillance for outdoor applications. Together
with its infrared illumination and Starlight Technology, the camera
is the perfect solution for dark, lowlight applications. The series
combines a day/night mechanical IR cut filter for the highest image
quality for variable lighting conditions during the day and True WDR for
applications with direct sunlight or glare.
Functions
Starlight Technology
Thanks to our experience and expertise in hardware and software
development , the camera is equipped with the latest image processing
algorithm, high performance hardware and high quality optical
components, which make the camera have very exellent low light
performance. In most conditions, this camera can deliver clear, bright
and low-noise color images.
Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology,
vivid pictures are achieved even in the most intense contrast lighting
conditions. For applications with both bright and low lighting conditions
that change quickly, true WDR (120dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
H.265
The camera supports H.265 encoding, which provides a savings of
more than 50% of bandwidth and storage compared with H.264. This
technology can help our customers to reduce the cost of the project and
improve the transmission efficiency.
Environmental
With a temperature range of -30 °C to +65°C (-22 °F to +149 °F), the
camera is designed for extreme temperature environments. Subjected
and certified to rigorous dust and water immersion tests, the IP66 rating
makes it suitable for demanding outdoor applications.
Protection
This camera suits even the harsh conditions for outdoor applications.
Its 6KV lightning rating provides protection against the camera and its
structure from the effects of lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) and PSIA (Physical Security Interoperability Alliance)
specifications, ensuring interoperability between network video products
regardless of manufacturer.
www.dahuasecurity.com
· 1/2.8” 2Megapixel Exmor R CMOS
· Powerful 30x optical zoom
· Starlight technology
· Support Triple-stream encoding
· Max. 50/60fps@1080P, 25/30/50/60fps@720P
· IVS(Optional)
· IR Distance up to 150m
· IP66

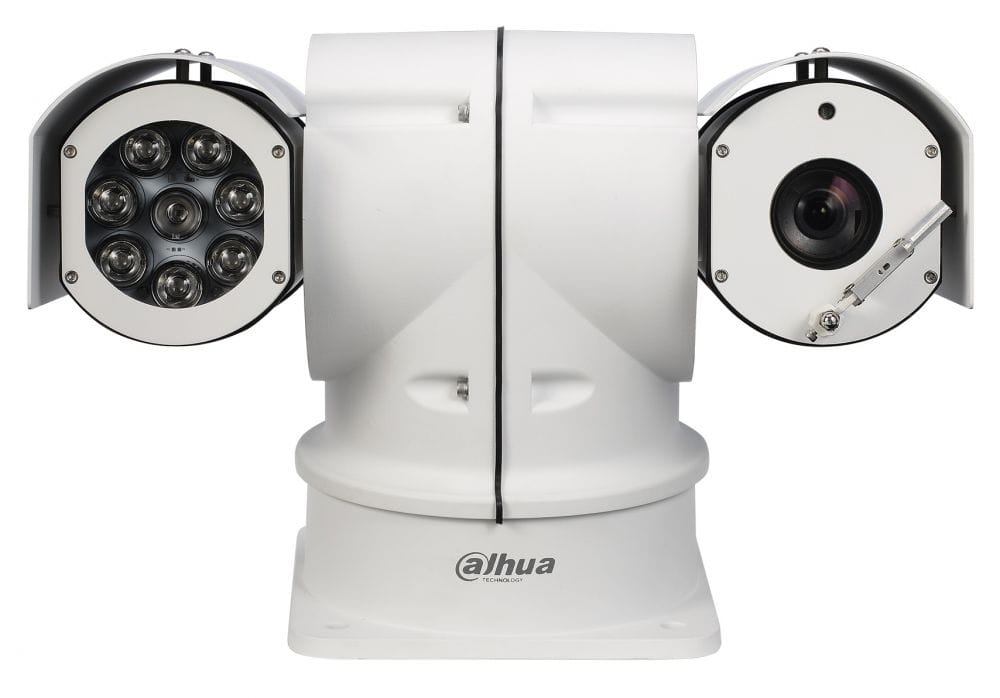

DH-PTZ35230U-IRA-N
2MP 30x Network IR Mobile Positioning System

ICR D/N

H.265

0.005lux

www.dahuasecurity.com
Positioning System | DH-PTZ35230U-IRA-N

Technical Specification
Camera
Image Sensor 1/2.8” Exmor R CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
RAM/ROM512M/128M
Scanning SystemProgressive
Minimum IlluminationColor: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
S/N RatioMore than 55dB
IR DistanceDistance up to 150m (492ft)
IR On/Off ControlAuto/Manual
IR LEDs8
Lens
Focal Length4.5mm~135mm
Max. ApertureF1.6 ~ F4.4
Angle of ViewH: 67.8° ~ 2.4°
Optical Zoom30x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -90° ~ 90°
Manual Control SpeedPan: 0.1° ~60° /s; Tilt: 0.1° ~30° /s
Preset SpeedPan:60° /s; Tilt: 30° /s
Presets300
PTZ Mode4 Pattern, 4 Tour, Auto Pan ,Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after
power failure
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no
command in the specified period
ProtocolDH-SD, Pelco-P/D (Auto recognition)
Intelligence
Auto TrackingN/A
IVS (optional)
Tripwire, Intrusion,Abandoned/Missing, Face
Detection
Video
CompressionH.265/H.264 / MJPEG
Streaming Capability3 Streams
Resolution
1080P(1920x1080)/720P(1280x720)/
D1(704x576/704x480)/CIF(352x288/352x240)
Frame Rate
Main stream1080P/720P/D1(1~50/60fps),
Sub stream1D1/CIF(1 ~ 25/30fps)
Sub stream21080P/720P/D1/ CIF (1 ~ 25/30fps)


Bit Rate ControlCBR/VBR
Bit Rate
H.265/H.264: 448K ~ 8192Kbps,
MJPEG: 5120K ~ 10240Kbps
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / WDR (120dB)
White BalanceAuto,ATW,Indoor,Outdoor,Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Motion DetetionSupport
Region of InterestSupport
Electronic Image
Stabilization (EIS)
Support
DefogSupport
Digital Zoom16x
Flip N/A
Privacy MaskingUp to 24 areas
Audio
CompressionG.711a/G.711u(32kbps)/PCM(128kbps)
Network
EthernetRJ-45 (10/100Base-T)
Protocol
IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,
ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP,
DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access20 users
Edge Storage
NAS (Network Attached Storage),Local PC for
instant recording, 128GB
Web ViewerIE10/Google/Firefox/Safari...
Management SoftwareSmart PSS, DSS
Smart Phone iPhone, iPad, Android, Windows Phone
Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1
Interface
Video InterfaceN/A
Audio Interface 1/1
RS4851
AlarmN/A
Electrical
Power SupplyDC 12V/5A
Power ConsumptionMax. 60W (IR on)

Positioning System | DH-PTZ35230U-IRA-N
Rev 001.001 © 2016 Dahua
®
. All rights reserved.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2MP
Positioning
System
DH-PTZ35230U-IRA-N
2MP 30x Network IR Mobile
Positioning System, WDR, PAL
DH-PTZ35230UN-IRA-N
2MP 30x Network IR Mobile
Positioning System, WDR, NTSC
PTZ35230U-IRA-N
2MP 30x Network IR Mobile
Positioning System, WDR, PAL
PTZ35230UN-IRA-N
2MP 30x Network IR Mobile
Positioning System, WDR, NTSC
Accessories DC 12V/5APower Supply

Environmental
Operating Conditions -30°C ~ 65°C (-22°F ~ +149°F) / Less than 90% RH
Ingress Protection IP66
Vandal ResistanceN/A
Construction
CasingMetal
Dimensions Φ375(mm)x246(mm)x210(mm)
Net Weight8.5kg(18.74lb)
Dimensions (mm)
Accessories
Optional：
DC 12V/5A
Power Supply
