PTZ1C203UE-GN-W

Lite Series | DH-PTZ1C203UE-GN-W    www.dahuasecurity.com  DH-PTZ1C203UE-GN-W  2MP 3X Starlight IR PTZ Wi-Fi Network Camera     System Overview  Featuring powerful optical zoom and accurate pan/tilt/zoom perfor-  mance, the camera provides a wide monitoring range and great detail.  The camera delivers 1080P resolution at 25/30fps. The camera is  equipped with smooth control, high quality image, and good protection,  meeting compact size demands of video surveillance applications.  Functions  Starlight Technology  For challenging low-light applications, Dahua’s Starlight Ultra-low Light  Technology offers best-in-class light sensitivity, capturing color details  in low light down to 0.005 lux. The camera uses a set of optical features  to balance light throughout the scene, resulting in clear images in dark  environments.  Environmental  Dahua cameras operate in extreme temperature environments, rated  for use in temperatures from -30°C to +60 °C (-22 °F to +140°F) with  95% humidity. Subjected to rigorous dust and water immersion tests  and certified to the IP66 Ingress Protection rating makes it suitable for  demanding outdoor applications.  Protection  The camera allows for 4KV lightning r...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Lite Series | DH-PTZ1C203UE-GN-W

www.dahuasecurity.com

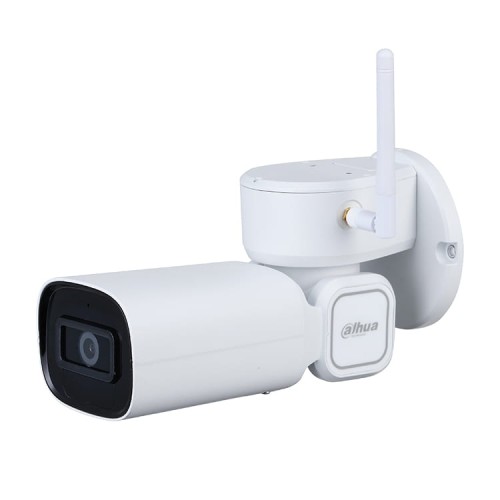

DH-PTZ1C203UE-GN-W
2MP 3X Starlight IR PTZ Wi-Fi Network Camera

System Overview
Featuring powerful optical zoom and accurate pan/tilt/zoom perfor-
mance, the camera provides a wide monitoring range and great detail.
The camera delivers 1080P resolution at 25/30fps. The camera is
equipped with smooth control, high quality image, and good protection,
meeting compact size demands of video surveillance applications.
Functions
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.005 lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
Environmental
Dahua cameras operate in extreme temperature environments, rated
for use in temperatures from -30°C to +60 °C (-22 °F to +140°F) with
95% humidity. Subjected to rigorous dust and water immersion tests
and certified to the IP66 Ingress Protection rating makes it suitable for
demanding outdoor applications.
Protection
The camera allows for 4KV lightning rating,which provides effective
protection for both the camera and its structure against lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, True WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that
uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
flexible multi-frame reference structure and intelligent noise reduc-
tion to deliver high-quality video without straining the network. Smart
H.265+ technology reduces bit rate and storage requirements by up to
70% when compared to standard H.265 video compression.
· 1/2.8” 2Megapixel STARVIS™ CMOS
· Powerful 3x optical zoom
· Starlight technology
· Max. 25/30fps@1080P
· IVS
· WDR
· H.265 Encoding
· Support Wi-Fi
· IR distance up to 20m
· IP66

H.265

IP660.005Lux

Lite Series | DH-PTZ1C203UE-GN-W

Technical Specification
Camera
Image Sensor
1/2.8" STARVIS™ CMOS
Max. Resolution
2MP
Effective Pixels
1920 (H) x 1080 (V)
ROM
128MB
RAM
256MB
Electronic Shutter Speed
1/3–1/30000s
Minimum Illumination
Color: 0.005Lux@F1.8
B/W: 0.0005Lux@F1.8
0Lux (IR light on)
IR Distance
20 m (65.6 ft)
IR On/Off Control
Zoom Prio/Manual/SmartIR
IR LED Number
1
Lens
Focal Length2.7mm–8.1mm
ApertureF1.8–F2.7
Field of View
H: 46.43°–106.79°
V: 25.91°–57.88°
Optical Zoom3x
Focus ControlAuto/Semi-Auto/Manual
Close Focus Distance0.8 m–1.7 m
Iris ControlFixed Iris
DORI Distance
DetectObserveRecognizeIdentify
101.4 m
(332.68 ft)
40.6 m
(133.20 ft)
20.3 m
(66.60 ft)
10.1m
(33.14 ft)
PTZ
Pan/Tilt RangePan: 0°–180°; Tilt: -5°–+55°
Manual Control SpeedPan: 6°/s; Tilt: 3°/s
Intelligence
IVSTripwire; Intrusion; Object Abandoned/Missing
Advanced IntelligenceFace Detection; Heat Map
Video
Video Compression
H.265; H.264BaselineProfile; H.264MainProfile;
H.264HighProfile; MJPEG; H.265 +; H.264+
Streaming Capability3 Streams
Resolution
1080P (1920x1080); 1.3M (1280x960); 720P
(1280x720); D1 (704x576); CIF (352x288)
Video Frame Rate
Main Stream:
1080P/1.3M/720P(1–25/30fps)
Sub Stream 1:
D1/CIF(1–25/30fps)
Sub Stream 2:
720P/D1/CIF(1–25/30fps)

www.dahuasecurity.com

Bit Rate ControlVariable Bit Rate/Constant Bit Rate
Video Bit Rate
H.264: 216 Kbps–8192 Kbps
H.265: 108 Kbps–8192 Kbps
Day/NightICR
BLC Support
WDR120dB
HLCSupport
White Balance
Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/
Natural/Street lamp
Gain ControlAuto/Manual
Noise Reduction2D/3D
Motion DetectionSupport
Region of Interest (RoI)Support
Electronic Image StabilizationSupport
DefogElectronic Defog
Digital Zoom16x
Audio
Audio Compression
G.711A; G.711Mu; G.726; AAC; MPEG2-Layer2;
G.722.1; G.729
Audio In1
Audio Out1
Network
Ethernet Port1 RJ-45 Port 10/100Base-T
Network Protocol
IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP;
UPnP; SNMP; DNS; DDNS; NTP; SNMPv1/v2c/
v3(MIB-2); ARP; RTCP; RTSP; RTP; TCP; UDP; IGMP;
ICMP; DHCP; PPPoE
Interoperability ONVIF; CGI
Streaming MethodUnicast/Multicast
User/Host20 (Total bandwidth 48M)
Edge StorageFTP; Micro SD card (256G); P2P
Browser
IE7 and newer versions
Chrome 42 and older versions
Firefox 52 and older versions
Safari
Management Software
Smart player
Configtool
SMART PSS
DMSS
DSS
Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
Electrical
Power SupplyDC12V/1.5A±10%
Power Consumption
7W
11W (PTZ, IR light)

Lite Series | DH-PTZ1C203UE-GN-W

www.dahuasecurity.com

Environmental
Operating Conditions–30°C to +60°C (–22°F to 140°F)
Operating Humidity≤95% RH
Ingress ProtectionIP66; TVS 4000V lightning protection; surge protection
Construction
Housing MaterialAluminium alloy ADC12
Dimensions
Wall mounted: 195.3 mmx90 mmx102.7 mm
(7.69"x3.54"x4.04")
Ceiling mounted: 190.8 mmx90 mmx112.2 mm
(7.51"x3.54"x4.12")
Weight
Net Weight: 0.9 kg (1.98 lb);
Gross Weight: 1.2 kg (2.65 lb)


Ordering Information
TypeModel Description
2MP PTZ
Camera
DH-PTZ1C203UE-
GN-W
2MP 3X Starlight IR PTZ Wi-Fi Network Camera,
WDR, PAL
DH-PTZ1C203UEN-
GN-W
2MP 3X Starlight IR PTZ Wi-Fi Network Camera,
WDR, NTSC
PTZ1C203UE-GN-W
2MP 3X Starlight IR PTZ Wi-Fi Network Camera,
WDR, PAL
PTZ1C203UEN-
GN-W
2MP 3X Starlight IR PTZ Wi-Fi Network Camera,
WDR, NTSC
Accessories
PFA731 Junction Box (wall-mount)
DC12V/2APower Adapter

Ceiling Mount
Wall Mount
Wall Mount

PFA731 Junction Box

Dimensions (mm/inch)

61.9[2.44]

76.1[3.00]

195.3[7.69]

102.7[4.04]

90.0[3.54]

2-
4.5[0.18]

80.0[3.15]

Rev 001.001© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Accessories
Optional:

PFA731
Junction Box
(wall-mount)
DC12V/2A
Power Adapter

61.9[2.44]

76.1[3.00]

80.0[3.15]

90.0[3.54]

2-
4.5[0.18]

190.8[7.51]

112.2[4.42]
