PLZ21C0-P
Description
DH-PLZ21C0-P 12 MegaPixel P-Iris Lens Specifications Model DH-PLZ21C0-P Parameter Image format 1/1.7” (max. image format>ɸ9.33) Focal length 10.5-42mm Aperture F1.5±10% Field Angle W: 46.9°x 37.2°x 27.6° T: 14.2°x 11.2°x 8.4° M.O.D. 0.3m TV Distortion -3%(Wide) IR Correction Yes Lens Control Focus Manual Zoom Manual Iris P-Iris Mount CS Dimension ∅52x90.5mm Weight 320g Operating temperature -30℃~+70℃ DH-PLZ21C0-P Dimensions (mm) Dahua Technology Co., Ltd. 1199 BinAn Road, Binjiang District, Hangzhou, China Tel: +86-571-87688883 Fax: +86-571-87688815 Email: overseas@dahuatech.com www.dahuasecurity.com *Design and specifications are subject to change without notice. © 2014 Dahua Technology Co., Ltd....
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DH-PLZ21C0-P

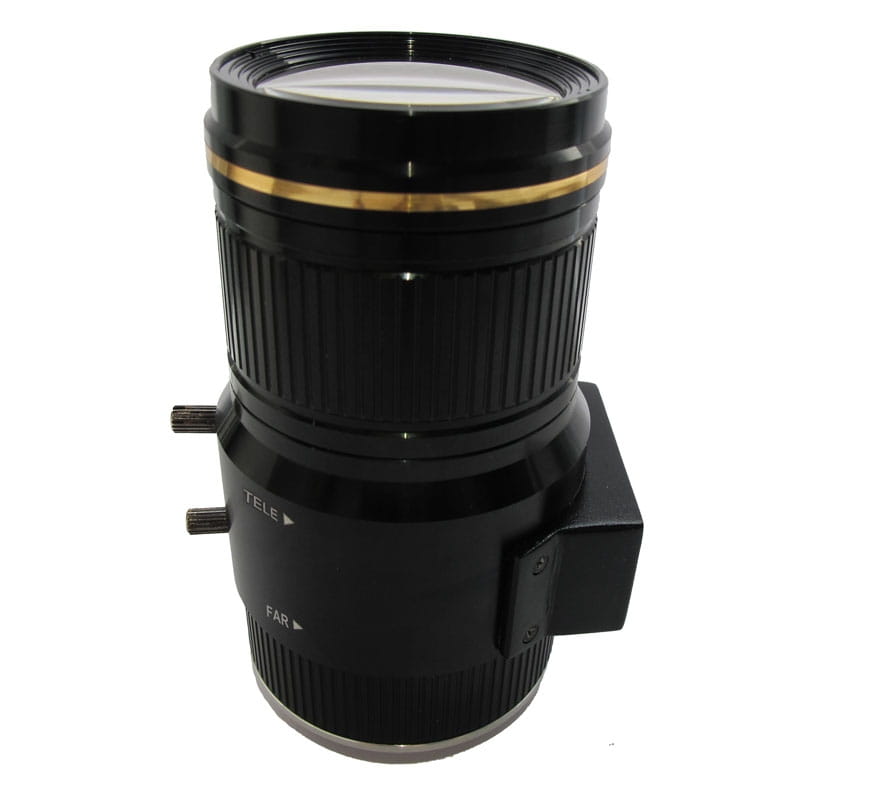

12 MegaPixel P-Iris Lens
Specifications
Model DH-PLZ21C0-P
Parameter
Image format 1/1.7” (max. image format>ɸ9.33)
Focal length 10.5-42mm
Aperture F1.5±10%
Field Angle
W: 46.9°x 37.2°x 27.6°
T: 14.2°x 11.2°x 8.4°
M.O.D. 0.3m
TV Distortion -3%(Wide)
IR Correction Yes
Lens Control
Focus Manual
Zoom Manual
Iris P-Iris
Mount CS
Dimension ∅52x90.5mm
Weight 320g
Operating temperature -30℃~+70℃
DH-PLZ21C0-P
Dimensions (mm)
Dahua Technology Co., Ltd.
1199 BinAn Road, Binjiang District, Hangzhou, China
Tel: +86-571-87688883
Fax: +86-571-87688815
Email: overseas@dahuatech.com
www.dahuasecurity.com
*Design and specifications are subject to change without notice.
© 2014 Dahua Technology Co., Ltd.
