DH -PLZ20 C0 -L

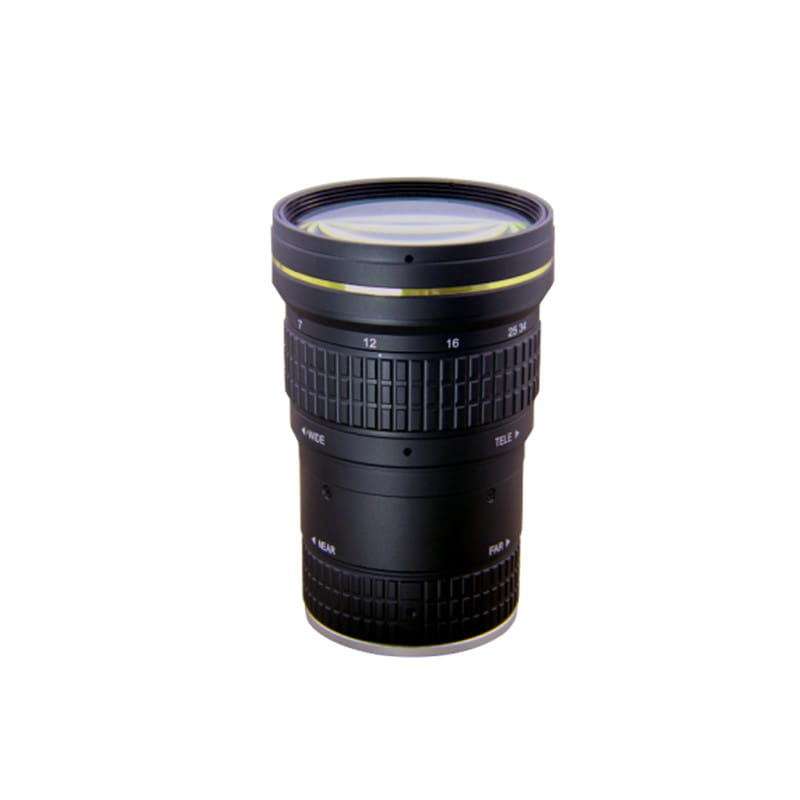

12 MegaPixel large aperture Lens



Specifications
Model DH -PLZ20 C0-L
Parameter
Image format 1/1.7 ”
Focal length 7-34 mm
Aperture F0.9
Field Angle
1/1.7”(4:3)
W: 66.5°x53.6°x40.5°
T: 20.5°x16.7°x12.4°
1/1.9”
W: 60.2°x52.0°x29.4°
T: 19.0°x16.0°x9.1°
M.O.D. 0.5m
TV Distortion 1/1.7” <-6.5% (wide)
IR Correction No
Lens Control
Focus Manual
Zoom Manual
Iris DC-Iris
Mount CS
Dimension ɸ66x109mm
Weight 545 g
Operating temperature -30 ℃～ +70 ℃



DH -PLZ20 C0 -L
Dimensions (mm)




Dahua Technology Co., Ltd. 11
99 BinAn Road, Binjiang District, Hangzhou, China
Tel: +86-571-87688883
Fax: +86-571-87688815
Email: overseas@dahuatech.com
www.dahuasecurity.com
*Design and specifications are subject to change without notice.
© 2016 Dahua Technology Co., Ltd.
