PLZ20C0-D

www.dahuasecurity.com    Lens Series | PLZ20C0-D  PLZ20C0-D   12 MP 1/1.7” 3.7-16mm Vari-focal Lens      Lens Series | PLZ20C0-D    www.dahuasecurity.com    Technical Specification  ModelPLZ20C0-D  Prameter  Image Format1/1.7”  Focal Length3.7-16mm  Lens Pixel12MP  ApertureF1.5  MountCS  Field Angle  (D*H*V)  1/1.7” W:145°(D)x109°(H)x79°(V)~T: 35.6°(D)x28.5°(H)x21.4°(V)  Lens Control  FocusManual  ZoomManual  IrisDC-Iris  IR CorrectionYes  M.O.D.0.5m (1.64ft)  Dimension ɸ54mmx82.8mm (ɸ2.12”x3.26”)  Weight0.27kg (0.6lb)  Operating Temperature-30℃~+70℃ (-22℉~+158℉)  Humidity<90% RH  Certifications  Certifications  CE (EN55022, EN55024, EN50130-4)  FCC (ANSI C63.4, FCC Part 15 Subpart B)      Ordering Information  TypePart NumberDescription  Lens  DH-PLZ20C0-D 12MP 1/1.7" 3.7-16mm vari-focal lens  PLZ20C0-D 12MP 1/1.7" 3.7-16mm vari-focal lens    Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.    Lens Series | PLZ20C0-D    www.dahuasecurity.com    Dimensions (mm/inch)    Package Information  · 12MP 1/1.7" 3.7-16mm vari-focal lens PLZ20C0-D *1...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.dahuasecurity.com

Lens Series | PLZ20C0-D
PLZ20C0-D

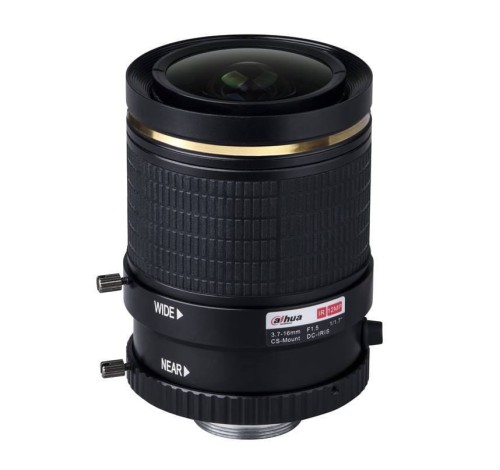

12 MP 1/1.7” 3.7-16mm Vari-focal Lens


Lens Series | PLZ20C0-D

www.dahuasecurity.com

Technical Specification
ModelPLZ20C0-D
Prameter
Image Format1/1.7”
Focal Length3.7-16mm
Lens Pixel12MP
ApertureF1.5
MountCS
Field Angle
(D*H*V)
1/1.7” W:145°(D)x109°(H)x79°(V)~T: 35.6°(D)x28.5°(H)x21.4°(V)
Lens Control
FocusManual
ZoomManual
IrisDC-Iris
IR CorrectionYes
M.O.D.0.5m (1.64ft)
Dimension ɸ54mmx82.8mm (ɸ2.12”x3.26”)
Weight0.27kg (0.6lb)
Operating Temperature-30℃~+70℃ (-22℉~+158℉)
Humidity<90% RH
Certifications
Certifications
CE (EN55022, EN55024, EN50130-4)
FCC (ANSI C63.4, FCC Part 15 Subpart B)


Ordering Information
TypePart NumberDescription
Lens
DH-PLZ20C0-D 12MP 1/1.7" 3.7-16mm vari-focal lens
PLZ20C0-D 12MP 1/1.7" 3.7-16mm vari-focal lens

Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.

Lens Series | PLZ20C0-D

www.dahuasecurity.com

Dimensions (mm/inch)

Package Information
· 12MP 1/1.7" 3.7-16mm vari-focal lens PLZ20C0-D *1
