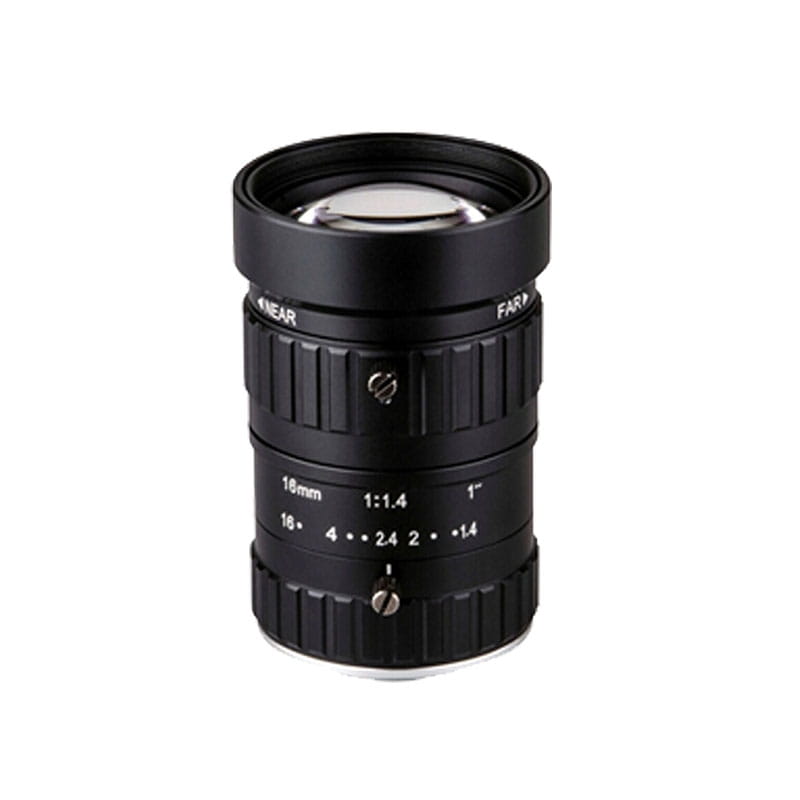

PLF2050-M
Description
Field Angle (D*H*V) 1’’ 53.6°x 43.6°x 33.0° 3/4’’ 40.9°x 33.0°x 24.9° 2/3’’ 37.7°x 30.3°x 22.8° Lens Control Focus Manual Zoom Manual Iris Manual IR Correction No M.O.D. 0.5m Filter Size M40.5x0.5 Dimension ɸ46x75mm Weight 180g Operating temperature -30℃~+70℃ Humidity <90% RH Model PLF2050-M Parameter Image format 1” Focal length 16mm Lens pixel 5MP Aperture F1.4-16 Mount C 5 MegaPixel Lens Technical Specification PLF2050-M PLF2050-M Dimensions...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Field Angle
(D*H*V)
1’’ 53.6°x 43.6°x 33.0°
3/4’’ 40.9°x 33.0°x 24.9°
2/3’’ 37.7°x 30.3°x 22.8°
Lens Control
Focus Manual
Zoom Manual
Iris Manual
IR Correction No
M.O.D. 0.5m
Filter Size M40.5x0.5
Dimension ɸ46x75mm
Weight 180g
Operating temperature -30℃~+70℃
Humidity <90% RH
Model PLF2050-M
Parameter
Image format 1”
Focal length 16mm
Lens pixel 5MP
Aperture F1.4-16
Mount C
5 MegaPixel Lens
Technical Specification
PLF2050-M
PLF2050-M
Dimensions
