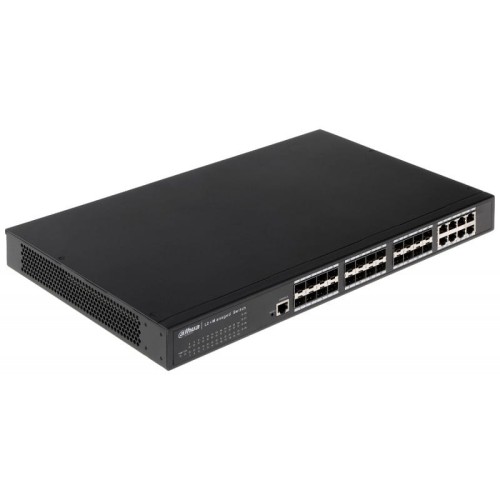

DH-PFS5924-24X

Product Overview
DH-PFS5924-24X is a type of managed switch with layer 2+, which
adopts 350G back panel design structure and realizes many functions
such as route, port mirroring, port isolation, ARP binding, spanning tree,
VLAN, ACL, DHCP snooping, multicast, link aggregation and etc. It is the
best choice in small and medium-sized enterprises.
www.dahuasecurity.com
Features
· Powerful Processing Capacity
Based on VCore-III MIPS-based CPU powerful, stable processing
capacity;
DH-PFS5424-24T provides exchange capacity up to 350Gbps, port full
linear filter forward 35.7Mpps;
Guarantee large flow data forward of backbone network without block.
· Perfect Security Control Strategy
Support user IP+MAC address certification based on port, 802.1X
certification based on port, remote Radius, NAS certifications;
Support IP ACL, MAC ACL, Vlan ACL, support ACL function based on the
third, fourth layer, effectively defend ARP attack and virus;
Support perfect storm control function, able to realize suppression over
broadcast, multicast and unicast storm;
Support specific ARP intrusion detection function; effectively prevent
increasingly popular “ARP cheat attack” implemented by hacker or
attacker via ARP message;
Support IP Source Guard features; prevent illegal address counterfeit
including MAC cheat, IP cheat, MAC/IP cheat and Dos attack brought by
large flow address counterfeit.
Provide DHCP snooping function, it can realize to snoop the MAC
address, IP address and various information of access users via creating
and maintaining DHCP Snooping binding table, which has solved the IP
and port tracking of DHCP users.
DH-PFS5924-24X
L2+ Managed Switch

· Perfect Reliability Protection Mechanism
It can implement flow classification and speed limit upon the packet
which is sent to CPU via CPU protection strategy, which is to avoid illegal
packet causing resource consumption upon CPU;
Support several spanning tree protocols such as STP, RSTP, MSTP and etc,
which can realize fast convergence and improve fault-tolerant capability;
Support industrial ERPS spanning protocol, whose convergence time
is within millisecond, which guarantees no interruption for services.
Besides, the protocol is simple and reliable, which makes it greatly
convenient for users to manage and plan network;
· Convenient Management and Maintenance
It can implement simple and convenient operation upon various functions
of the switch via easy visual WEB interface (support http and https
protocol);
Support SNMP protocol to configure management for the device,
provide convenience about centralized device management for small and
medium-sized enterprises;
Support CLI configuration, manage via Telnet and Console port, which is
suitable for professional network managers;
Support SSH2.0 and other encryption modes, make management much
safer;
Support PDP, LLDP protocol, which make network management much
simpler;
Support NTP clock protocol, which can sync network time automatically;

Technical Specification
ModelDH-PFS5924-24X
Interfaces
1000M SFP port x 16
Combo 1000BASE-T/SFP port x 8
Management PortsOne Console port
Reset ButtonOne Restore Factory Default Button
Switching Capacity350Gbps
Packet Forwarding Rate35.7Mpps
Working Temperature-10~55°C
Storage Temperature-40~70°C
Operating Humidity5%~95% Non-condensing
Dimensions440(L)x285(W)x44.5(H)mm
Weight<5Kg
Input VoltageAC: 110~240V/50~60Hz
Power Consumption<50W


Service Characteristics
Protocol Standard
IEEE 802.3ad,IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,
IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3az
MAC Table32K
VLAN
4K
Port-based VLAN
802.1Q Standard VLAN
MAC-based VLAN
Protocol-based VLAN
Spanning Tree
STP
RSTP
MSTP
Loop ProtectionERPS
Loopback DetectionSupport
Port Aggregation
Up to 14 aggregation groups, and up to 8 GE ports
for each group
LACP, Manual aggregation
Mirroring
Support many-to-one port mirroring, no limit for
the quantity of mirroring source port
Flow Control
Support half-duplex based on back pressure type
control
Support full duplex based on PAUSE frame
Port Speed LimitSupport
IP RoutingStatic Routing

Multicast
IGMP Snooping
MVR (Multicast VLAN Registration)
DHCP
DHCP Client
DHCP Server
DHCP Snooping
Storm Suppression
Support suppression upon broadcast, multicast,
unicast

Security Features
Hardware supports IP ACL,MAC ACL, VLAN ACL
Hardware supports IP+MAC binding based on port
Support IP Source Guard
Support ARP Detection
Support IEEE802.1x port authentication
Support Radius authentication
Support the user classification management and
password protection
System Maintenance
Support the configuration file upload/download
Support the updated packet upload
Restore default configuration via WEB
Support system logs
PING
Network Management
WEB(http and https protocol)
CLI
Telnet
SSH 2.0
SNMP
RMON
LLDP
Support the NTP client

Accessories
Model
PFT39501.25G 850nm,500m,LC, Multi-mode
PFT39601.25G 1310/1550nm,20km,LC, Single-mode
PFT39701.25G 1550/1310nm,20km,LC, Single-mode
