PFS5452-48GT4XF-400

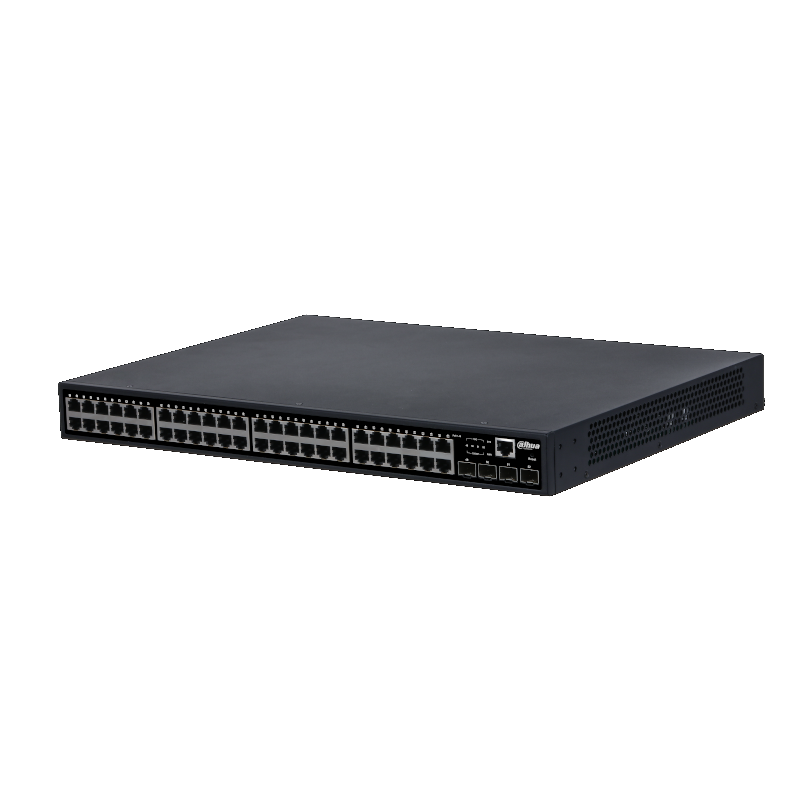

www.dahuasecurity.com  DH-PFS5452-48GT4XF-400  Dahua 48-Port Gigabit Managed PoE Switch    · Support static route, realizing layer 3 forwarding for network data.  · Support virtual stack, virtualizing several switches into one to improve   reliability and simplify configuration and management.  · Support 10 Gbps uplink with 4 ports, realizing big data transmission   without lags.  · Support various management types.  Common Series | DH-PFS5452-48GT4XF-400   Series Overview  DH-PFS5452-48GT4XF-400 is a layer 2+ gigabit managed PoE switch  that supports 48*10/100/1000 Mbps auto-negotiation ports and 4*  Ten-gigabit ports (SFP + optical fiber port). It can be used to connect  upstream devices with higher bandwidth. Combined with Dynamic  memory allocation, store and forward technique is adopted to ensure  that bandwidth is allocated to every port effectively. It supports  port-based VLAN ACL, achieving network surveillance, traffic policing,  priority remark and data forward control. It supports STP/RSTP/MSTP  to protect against layer 2 link attacks and strengthen the capability of  fault tolerance and redundant backup,...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.dahuasecurity.com
DH-PFS5452-48GT4XF-400
Dahua 48-Port Gigabit Managed PoE Switch

· Support static route, realizing layer 3 forwarding for network data.
· Support virtual stack, virtualizing several switches into one to improve
reliability and simplify configuration and management.
· Support 10 Gbps uplink with 4 ports, realizing big data transmission
without lags.
· Support various management types.
Common Series | DH-PFS5452-48GT4XF-400
Series Overview
DH-PFS5452-48GT4XF-400 is a layer 2+ gigabit managed PoE switch
that supports 48*10/100/1000 Mbps auto-negotiation ports and 4*
Ten-gigabit ports (SFP + optical fiber port). It can be used to connect
upstream devices with higher bandwidth. Combined with Dynamic
memory allocation, store and forward technique is adopted to ensure
that bandwidth is allocated to every port effectively. It supports
port-based VLAN ACL, achieving network surveillance, traffic policing,
priority remark and data forward control. It supports STP/RSTP/MSTP
to protect against layer 2 link attacks and strengthen the capability of
fault tolerance and redundant backup, stablizing network effectively.
It supports time-based ACL control to meet the need of accurate
time control access and supports port-based and MAC-based 802.1x
authentication, making user access rights easy to set. And it features
refined QoS and various VLAN functions for easy management and
maintainance.
Scene
It meets the networking and access requirements of enterprises,
intelligent communities, hotels, office and campus networks. The
built-in wide voltage input design power supply features high reliability
so that even if the grid voltage is unstable, it ensures the proper
function of equipments.
Functions
Static Route
Support static route, realizing layer 2+ forwarding for network data.
Virtual Stack
Support virtual stack, virtualizing several switches into one to improve
reliability and simplify configuration and management.
10 Gbps uplink
Support 10Gbps uplink with 4 ports, realizing big data transmission
without lags.
Various Management Type
Support Telnet, SSH, SNMP, cluster network management, and WEB.

Technical Specification
Performance
LayerLayer 2+
Managed
Yes
Hardware
Standard Power SupplyYes
PoEYes
Ethernet Port
48
Optical Port4
Ethernet Port Rate1 Gbps
Optical Port Rate10 Gbps
Modular/FixedFixed
DebuggingDebugging
Power Supply100V–240V AC
Operating Temperature0°C to 45°C (32°F to 113°F)
Operating Humidity10%–90%
Storage Temperature–40°C to 70°C (–40°F to 158°F)
Storage Humidity5%–90%
Power Consumption
Idling: 39.7W
Full load: 473.7W
Performance
Switching Capacity176 Gbps
Packet Forwarding Rate130.944 Mpps
Packet Buffer Memory12 Mbits
MAC Table Size16K
Router Ports 256
IPv4 Routing Table511

www.dahuasecurity.com
Common Series | DH-PFS5452-48GT4XF-400

QoS Queue 8
Classification Rules2
IPv4 ACL Amount128
Traffic Limit Granularity64K
ACL Traffic Limit
Granularity
64K
Standards Compliance
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az,
IEEE 802.3ae, IEEE802.3x, IEEE802.3z, IEEE802.3ad,
IEEE802.1P, IEEE802.1Q, IEEE802.3af, IEEE802.3at
PoE
PoE StandardIEEE802.3af, IEEE802.3at
PoE Budget400W
PoE ManagementYes
PoE Pin Assignment1/2(+), 3/6(-)
Long Distance PoE
Transmission
No
Function
IPv4
ARP Proxy;
DHCP Relay;
DHCP Server;
Static Route;
RIP;
OSPF
IPv6Support ICMPv6
ACLYes
Jumbo Frame12 KB
ARP
Static table items;
Free ARP
MAC Address Table16K
Spanning Tree ProtocolSTP, RSTP, MSTP, ERPS
VLAN
base on MAC/protocol/IP subnet/Strategy/port VLAN;
Dot1q tunnel;
GVRP;
VLAN-translation;
MAC Adress auto learning and aging;
source MAC address filter
Flow ControlSupport flow control based on IEEE802.3X
Link AggregationSupport IEEE 802.3ad (Link Aggregation)
Port MirroringYes
Multicast
IGMP Snooping
IPv6 Multicast; MLD
DHCP
DHCP relay;
DHCP Server;
DHCP Snooping
Security
ACL;
802.1x, Radius authentication;
DoS attack protection
QoSSPQ, WRR, SP+WRR, WFQ, SP+WFQ
ARP Table Size8K
VLAN Amount 4K
Routing Table256

System Maintenance
upload and download of configuration file;
upload of upgrade package;
system log
Device Management
Web;
Telnet;
CLI;
SNMP V1/V2C/V3
General
ESD
Air discharge: 2kV
Contact discharge: 1kV
ThunderproofCommon mode: ±2kV
Net Weight4.5 kg (9.92 lb)
Gross Weight4.8 kg (10.58 lb)
Product Dimensions440 mm x 330 mm x 44.5 mm (17.32" x 12.99" x 1.75")
Packaging Dimensions494 mm x 482 mm x 113 mm (19.45" x 18.98" x 4.45")

Dimensions (mm[inch])

Installation


www.dahuasecurity.com
Common Series | DH-PFS5452-48GT4XF-400

Application

Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
