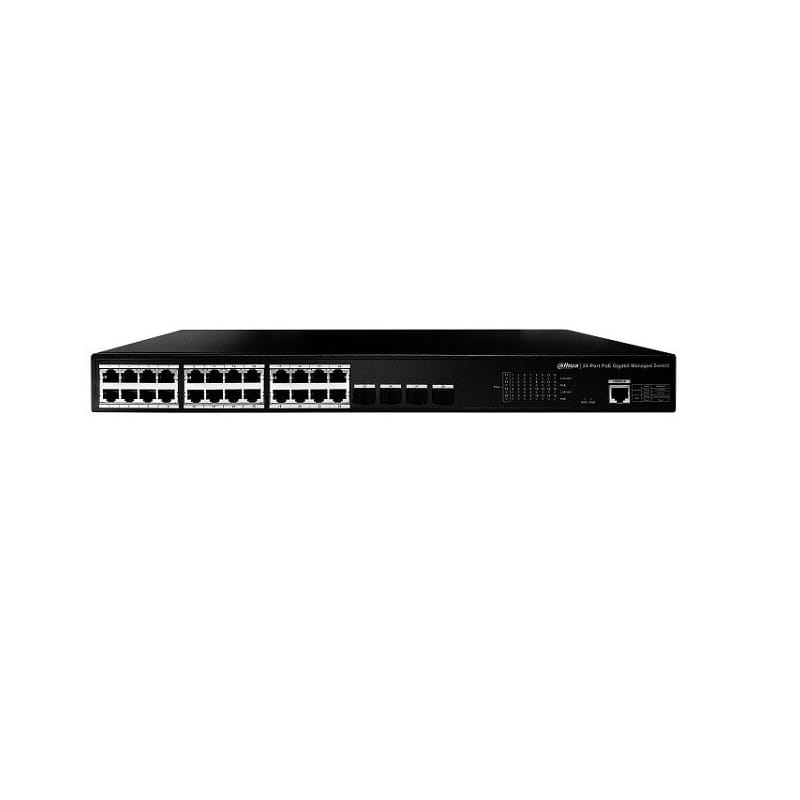

DH-PFS5428-24GT

Product Overview
DH-PFS5428-24GT is a Hardened Layer 2+ Managed Switch that features
24 10/100/1000Mbps ports, 4 10G SFP+ fiber ports. With 10Gbps uplink,
the DH-PFS5428-24GT can handle extremely large amounts of data and
provide non-blocking video transmission in the temperature from -20
to 55 degrees Celsius. In addition, the DH-PFS5428-24GT adopts fanless
heat dissipation design, which can effectively solve the problem of large
noise in indoor environment.
www.dahuasecurity.com

DH-PFS5428-24GT
L2+ Managed Switch

Technical Specification
ModelDH-PFS5428-24GT
Interfaces
24x 10/100/1000 BASE-T port
4x 1000/10000 BASE-X SFP+
Management PortsOne console port
Switching Capacity128Gbps
Packet Buffer Memory32Mb
ARP Table1K
IPv4 FIB4K
Working Temperature-20°C~55°C
Operating Humidity10%~90%
Dimensions440mmx300mmx44mm
Weight3.15Kg
Input VoltageAC: 100~240V/0.8A
Flow ControlEnable by default
Lightning Protection
Common mode 4KV
Differential mode 2KV

Features
· Hardened L2+ managed aggregation Switch
· 24GE+4 x GE/10GE SFP+
· Switching Capacity: 128Gbps
· High lightning protection: Common/Differential mode
4KV/2KV
· Wide working temperature: -20~55°C
· SFP+ fiber uplink
· Fanless thermal design
· Rack mounting

Service Characteristics
System
Username / password: admin/admin
IP Address :192.168.1.110/24
MAC Table32K
VLAN802.1Q Standard VLAN
Network Redundancy
STP /RSTP/MSTP
ERPS
Port Aggregation
Static link aggregation
Dynamic link aggregation
MirroringMany-to-one port mirroring
DHCPSupport DHCP-Client, DHCP-Server, DHCP-Relay
Flow Control
Half-duplex based on back pressure type control,
Full duplex based on PAUSE frame
Security Features
MAC binding based on port,
IEEE802.1x port authentication
System Maintenance
One-key recovery
Support the updated packet upload
System log
QoS
High and low priority,
802.1P, DSCP
Network Management
WEB(http and https protocol), Telnet, SSH,
Support SNMP V1/V2C/V3
IP RoutingStatic routing

Accessories
ModelModel
PFT39501.25G 850nm,500m,LC, Multi-modePFTOTSFP-850-MMF10G 850nm,300m,LC, Multi-mode
PFT39601.25G 1310/1550nm,20km,LC, Single-modePFTOTSFP-1270T-20-SMF10G 1270/1330nm,20km,LC, Single-mode
PFT39701.25G 1550/1310nm,20km,LC, Single-modePFTOTSFP-1270R-20-SMF10G 1330/1270nm,20km,LC, Single-mode

Dimensions (mm)
