PFS4420-16GT-DP

Availability: 0

Price: €1,067.43 1067.43

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: PFS4420-16GT-DP

ask about product or pricing

Description

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

System Overview

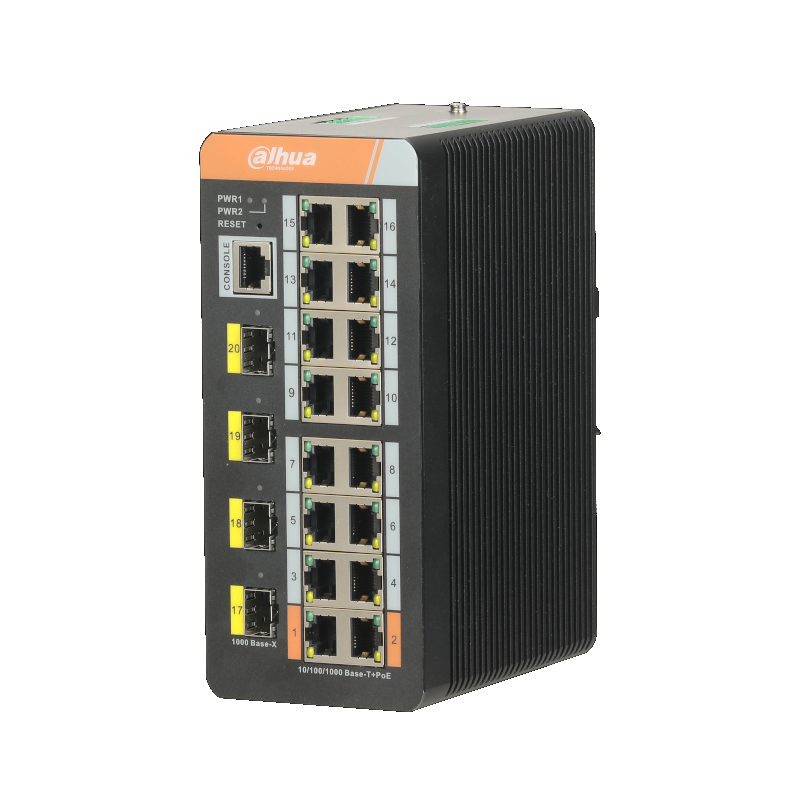

DH-PFS4420-16GT-DP is a layer 2 managed industrial PoE switch,
with 16 Gigabit PoE ports. The switch supports IEEE80.3af and
IEEE80.3at. Moreover, port 1 and port 2 (orange port) support Hi-
PoE, which provides maximum 60W with single port.
This switch supports web, Simple Network Management Protocol
(SNMP) and Command-line Interface (CLI). Also, it supports stan-
dard spanning tree protocols STP, RSTP, MSTP and ERPS, and pro-
vides rich features such as VLAN, link aggregation, port mirroring,
flow control, IGMP Snooping, SNMP, ACL and QoS. It can be mounted
on rails, supports dual power input for power redundancy and wide
operating temperature ranging from -40°C to +75°C. This switch pro-
vides high EFT and ESD protection for industrial networking applica-
tions, such as outdoor security surveillance, ITS, energy, factory and
other outdoor or harsh environment.
www.dahuasecurity.com
DH-PFS4420-16GT-DP
20-port Gigabit Industrial Switch with 16-port PoE (Managed)

Technical Speciﬁcation
Ethernet PortPort 1-16: 16 x 10/100/1000 Base-T (PoE)
SFP PortPort 17-20: 4 x 1000 Base-X
RS-232 Serial Port1 x RS-232 (Baud rate 115200)
RS-485 Port
2 x RS-485 (Baud rate 9600, TCP and UDP)
PoE Power
Each port ≤ 30W, total ≤ 240W
Port 1 and port 2 support Hi-PoE (60W)
PoE ProtocolIEEE802.3af; IEEE802.3at; Hi-PoE
PoE Budget≤240W
PoE PIN Assignment
PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Switch Capacity54 Gbps

Accessories (to be purchased separately)
SFP Module
PFT39501.25G 850nm, 500m, LC, multi-mode
PFT39601.25G 1310/1550nm, 20km, LC, single-mode
PFT3970
1.25G 1550/1310nm, 20km, LC, single-mode
DIN-Rail Power Supply
EDP-240-48
240W, 100VAC–240VAC, 48V5A

· Layer 2 managed industrial PoE switch
· Support IEEE80.3af, IEEE80.3at and Hi-PoE (60W) standard
· Support STP, RSTP and MSTP
· Support ERPS
· Support L2 features, including VLAN, link aggregation, IGMP Snooping,
LLDP ACL, QoS etc.
· Support Web, SNMP and CLI management
· IP40 full metal enclosure, fully-sealed and dustproof design
· Dual power input for power redundancy
· Wide operating temperature: -40°C to +75°C
DH-PFS4420-16GT-DP

Packet Forwarding Rate28.28 Mpps
Packet Buffer Memory
4 Mbits
MAC Address Table8K
Operating Humidity5%RH–95%RH
Operating Temperature
-40°C to +75°C (-40°F to +167°F)
Power SupplyDC 48V-57V (power adapter is not provided)
Lightning Protection
Common mode: 6 kV
Differential mode: 4 kV
Power Consumption
Idling power consumption: 15W
PoE full load power consumption: 240W
Net Weight1.35 kg (2.98 lb)
Gross Weight1.38 kg (3.04 lb)
Dimensions134.15 mm x 175 mm x 75 mm

Service Characteristics
System
(Default) username: admin, password: admin
IP address: 192.168.1.110
NTP Client
Support
DHCP
Support DHCP-Client
VLAN
802.1Q
Flow Control
Support flow control based on IEEE802.3X
Link Aggregation
Static manual aggregation, static LACP
Port Mirroring
Support one-to-one and many-to-one port
mirroring
Multicast
Support IGMP Snooping v1/v2/v3
Quality of Service (QoS)
Support strict priority (SP), WRR
Support IEEE802.1P and DSCP
Ring Network
Support STP, RSTP, MSTP and ERPS
Security
IEEE802.1x, MAC binding based on port
System Maintenance
Restore factory defaults with one button, upload
the upgrade package, upload and download
configuration file, and support system log
Device Management
Web, CLI, SSH, SNMP v1/v2c/v3

Dimensions (mm)

175.0

75.0

125.35

134.15

DH-PFS4420-16GT-DP

www.dahuasecurity.com
Rev 001.001
© 2019 Dahua . All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
