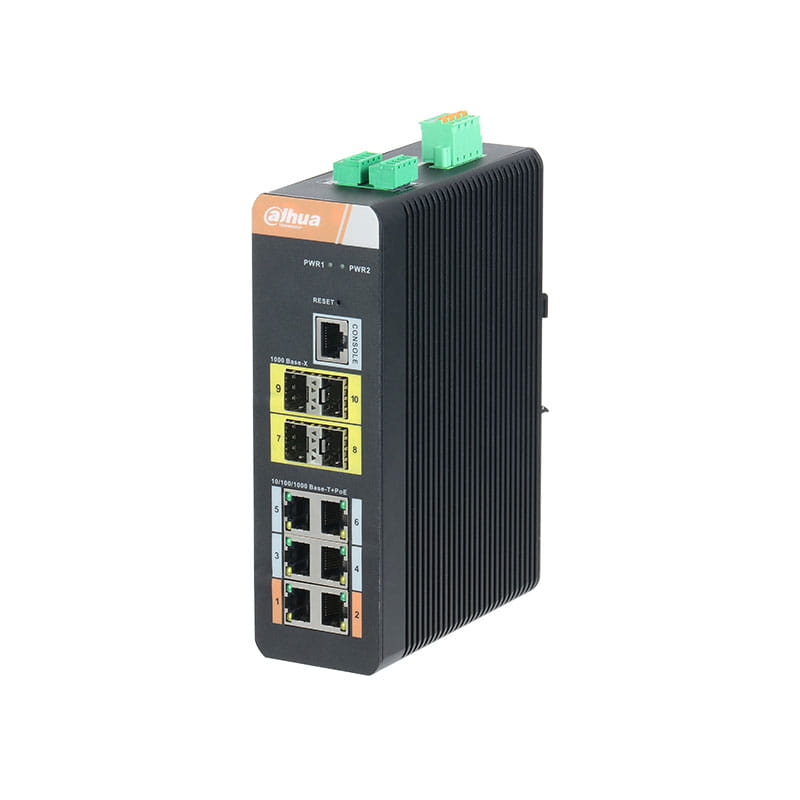

DH-PFS4410-6GT-DP

Product Overview
DH-PFS4410-6GT-DP is a 10-Port Gigabit Industrial Swicth with 6-Port
Gigabit PoE which supports IEEE 802.3af/at. Moreover, port 1&2 (orange
port) support Hi-PoE, which provides maximum 60W via a single port.
DH-PFS4410-6GT-DP is a Layer 2 managed industrial PoE switch, which
supports web, SNMP and also CLI. It supports ring network redundancy
using standard STP/RSTP/MSTP protocol and also supports rich features
such as VLAN, Link Aggregation, Port Mirroring, Flow Control, IGMP
Snooping, SNMP, ROMN, ACL, QoS, Static IP Routing, etc.
DH-PFS4410-6GT-DP is IP40 rated and DIN-rail mountable. It supports
dual power input for power redundancy and wide working temperature
range from -40°C~+75°C. It also provides high EFT and ESD protection for
industrial networking applications such as outdoor security surveillance,
ITS, power, factory and any other outdoor or harsh environment.
www.dahuasecurity.com
Features
· Layer 2 managed industrial PoE switch
· Supports IEEE802.3af/at and Hi-PoE (60W) standard
· Supports STP/RSTP/MSTP for network redundancy
· Supports rich L2 features including VLAN, Link Aggregation,
IGMP Snooping, ROMN, ACL, QoS, etc
· Supports Web, SNMP and CLI management
· IP40 full metal enclosure, fully-sealed and dustproof design
· Dual power input for power redundancy
· Wide working temperature: -40°~+75°C
DH-PFS4410-6GT-DP
10-Port Gigabit Industrial Swicth with 6-Port Gigabit PoE (Managed)

Accessories
Model
PFT39501.25G 850nm,500m,LC, Multi-mode
PFT39601.25G 1310/1550nm,20km,LC, Single-mode
PFT39701.25G 1550/1310nm,20km,LC, Single-mode

Technical Specification
ModelDH-PFS4410-6GT-DP
Ethernet Port
6*10/100/1000 Base-T(PoE power supply)
4*100/1000 Base-X
RS232 Serial Console
1*RS232
RS485 Port
2*RS485 (Baud rate 9600, TCP/UDP)
I/O Port
1*Input, 1*Output
PoE Power Consumption
Each port ≤30W ,Total≤120W
port 1 and port 2 supports Hi-PoE (60W)
PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
PoE Budget≤120W
PoE PIN Assignment
1, 2(V+), 3, 6 (V-)
1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Switching Capacity28Gbps
Packet Forwarding Rate14.88Mpps
Packet Buffer Memory4Mb
Application Humidity10%-90%
PowerDC 9~57V, PoE: 48-57V
Lightning Protection
Common Mode 6KV
Differential Mode 4KV


Working Temperature-40 ℃~75℃
Power Consumption (static)≤6W
Power Consumption (full load)≤120W
MountingDIN-Rail
Weight1.25kg
Dimension (WxDxH)175mm x 134mm x 53mm

Service Characteristics
ModelDH-PFS4410-6GT-DP
System
Username / password: admin/admin
IP Address :192.168.1.110/24
MAC Address Table8K
NTPSupport
DHCP
Support DHCP client/server
Support DHCP snooping
VLAN802.1Q
Port AggregationManual aggregation/LACP
Port MirroringSupport many-to-one port mirroring
Flow Control
Support half-duplex based on back pressure type
control
Support full duplex based on PAUSE frame
MulticastIGMP Snooping v1/v2/v3
Security
Support users management
Support SSH
Support Https
Support SNMP V1/V2/V3
Support ROMN
Support ACL
Support IP source guard
Support ARP inspection
Support 802.1x
Support loop protection
Spanning TreeSTP/RSTP/MSTP
LLDPSupport
Quality of Service
Support QoS base on CoS/DPL/PCP/DEI
Each port support 8 output queue
Support port shaping
Support port tag remarking
Support QoS based on DSCP
System Maintenance
Support the configuration file upload/download
Support firmware upgrade
Support system logs
Network Management WEB(http protocol), SNMP, CLI

Dimensions (mm)
