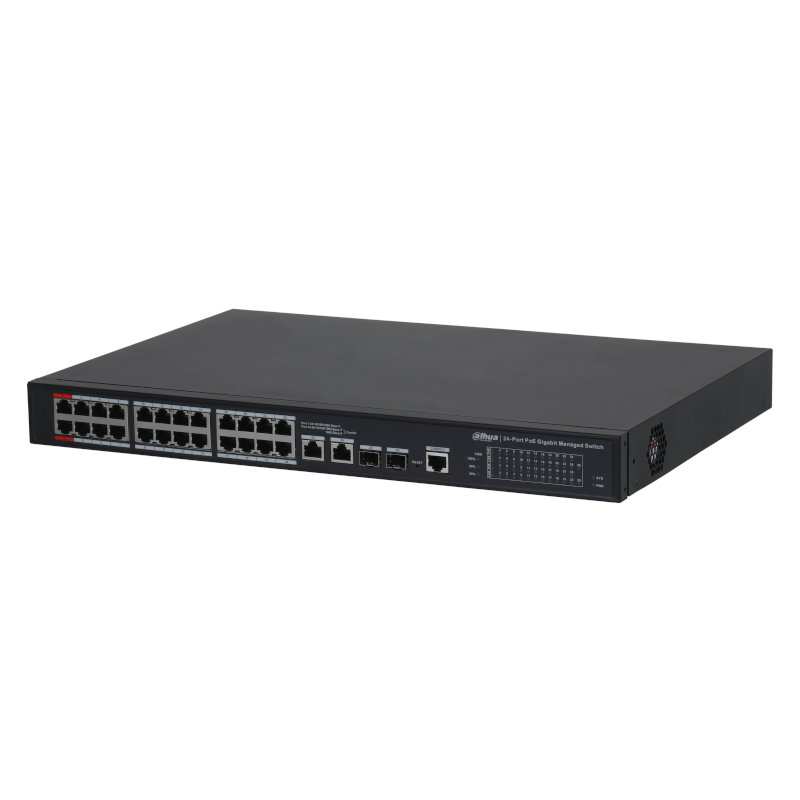

PFS4226-24GT2GF-240-V2

DH-PFS4226-24GT-240    www.dahuasecurity.com   Features  · Layer 2 network management PoE switch  · Support IEEE802.3af, IEEE802.3at standard  · Support Hi-PoE 60W  · Network Redundancy: STP/RSTP/MSTP  · Support IPv4/IPv6, and DHCP  · Network management based on SNMP  · Configuration: Web, Telnet, CLI Command  · QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism  · Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/  v3, HTTPS, and SSH/SSL  · Large data cache(4M), real-time transmission  · MAC auto study and aging, MAC address list capacity is 8K  · EMC high protection design  DH-PFS4226 -24GT-240  24-Port PoE Gigabit Managed Switch    Technical Specification  ModelDH-PFS4226-24GT-240  Ethernet Port  24*10/100/1000 Base-T (PoE power supply)  2*100/1000 Base-X  RS232 Serial Console  1*RS232 in RJ45 connector with console cable,  115.2Kbps, 8,N,1  PoE Power Consumption  Port1 and port 2 support Hi-PoE 60W  Each power ≤30W, Total≤240W  PoE ProtocolIEEE802.3af, IEEE802.3at, Hi-PoE  Switching Capacity52Gbps  Packet Forwarding Rate38.688Mpps  Packet Buffer Memory4Mb  Application Humidity5%~95%  PowerAC100-240V, 50/60Hz  Lightning Protection  Common Mode 2KV  Di...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DH-PFS4226-24GT-240

www.dahuasecurity.com
Features
· Layer 2 network management PoE switch
· Support IEEE802.3af, IEEE802.3at standard
· Support Hi-PoE 60W
· Network Redundancy: STP/RSTP/MSTP
· Support IPv4/IPv6, and DHCP
· Network management based on SNMP
· Configuration: Web, Telnet, CLI Command
· QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
· Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/
v3, HTTPS, and SSH/SSL
· Large data cache(4M), real-time transmission
· MAC auto study and aging, MAC address list capacity is 8K
· EMC high protection design
DH-PFS4226 -24GT-240
24-Port PoE Gigabit Managed Switch

Technical Specification
ModelDH-PFS4226-24GT-240
Ethernet Port
24*10/100/1000 Base-T (PoE power supply)
2*100/1000 Base-X
RS232 Serial Console
1*RS232 in RJ45 connector with console cable,
115.2Kbps, 8,N,1
PoE Power Consumption
Port1 and port 2 support Hi-PoE 60W
Each power ≤30W, Total≤240W
PoE ProtocolIEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity52Gbps
Packet Forwarding Rate38.688Mpps
Packet Buffer Memory4Mb
Application Humidity5%~95%
PowerAC100-240V, 50/60Hz
Lightning Protection
Common Mode 2KV
Differential Mode 1KV
Working Temperature-10°C~55°C
Dimension(WxDxH)440mm x300mm x44mm


Service Characteristics
System
Username / password: admin/admin
IP Address :192.168.1.110/24
PoE BudgetTotal≤240W
MAC Table8K
NTPSupport
DHCP
Support DHCP client/server
Support DHCP snooping
VLAN802.1Q Standard VLAN
Port AggregationManual aggregation/LACP
MirroringMany-to-one port mirroring
Flow Control
Half-duplex based on back pressure type control;
Full duplex based on PAUSE frame
MulticastIGMP Snooping v1/v2/v3
Security Features
Users management, SSH, HTTPS, SNMP v1/v2/
v3, ROMN, ACL, IP source guard, ARP inspection,
802.1x, loop protection
Spanning treeSupport STP/RSTP/MSTP
LLDPSupport
MAC TableSupport MAC address table configuration
QoS
Support QoS base on CoS/DPL/PCP/DEI
Each port support 8 output queue
Support port shaping
Support port tag remarking
Support QoS base on DSCP
System Maintenance
Support the configuration file upload/download
Support the updated packet upload
System log
Network ManagementWEB(http protocol), serial, SNMP

Accessories
Model
PFT39501.25G 850nm,500m,LC, Multi-mode
PFT39601.25G 1310/1550nm,20km,LC, Single-mode
PFT39701.25G 1550/1310nm,20km,LC, Single-mode


Dimensions (mm)
