PFS4218-16ET-240-V2

DH-PFS4218-16ET-240     Product Overview  DH-PFS4218-16ET-240 is a dedicated PoE switch for security industry,  which is different from general switch. PoE management function  realizes power control and real-time port consumption display. It's widely  used in surveillance project. DH-PFS4218-16ET-240 also provides 250  meters long distance PoE transmission and 'orange port' for Hi-PoE  powered device.  www.dahuasecurity.com   Features  · Layer 2 management PoE switch  · PoE budget: 240W  · Support PoE, PoE+, Hi-PoE  · 'Orange port' support Hi-PoE, can be used with the PoE  extender (PFT1300)  · 250 meters long distance PoE transmission  · PoE management, PoE Setting/Event Statistics/Green PoE  · Search and upgrade via ConfigTool  · Support Web management  · High lightning protection design  · Non-blocking video transmission  DH-PFS4218-16ET-240  16-Port PoE Switch    Technical Specification  ModelDH-PFS4218-16ET-240  Ethernet Port  2*10/100/1000 Base-T (Combo port)  2*1000 Base-X (Combo port)  16*10/100 Base-T (PoE power supply)  PoE Power Consumption  Port1/2 support Hi-PoE (60W), PoE+, PoE  Each power ≤30W  Total≤240W  PoE ProtocolIEEE802.3af, IEEE802.3at, Hi-PoE

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DH-PFS4218-16ET-240

Product Overview
DH-PFS4218-16ET-240 is a dedicated PoE switch for security industry,
which is different from general switch. PoE management function
realizes power control and real-time port consumption display. It's widely
used in surveillance project. DH-PFS4218-16ET-240 also provides 250
meters long distance PoE transmission and 'orange port' for Hi-PoE
powered device.
www.dahuasecurity.com
Features
· Layer 2 management PoE switch
· PoE budget: 240W
· Support PoE, PoE+, Hi-PoE
· 'Orange port' support Hi-PoE, can be used with the PoE
extender (PFT1300)
· 250 meters long distance PoE transmission
· PoE management, PoE Setting/Event Statistics/Green PoE
· Search and upgrade via ConfigTool
· Support Web management
· High lightning protection design
· Non-blocking video transmission

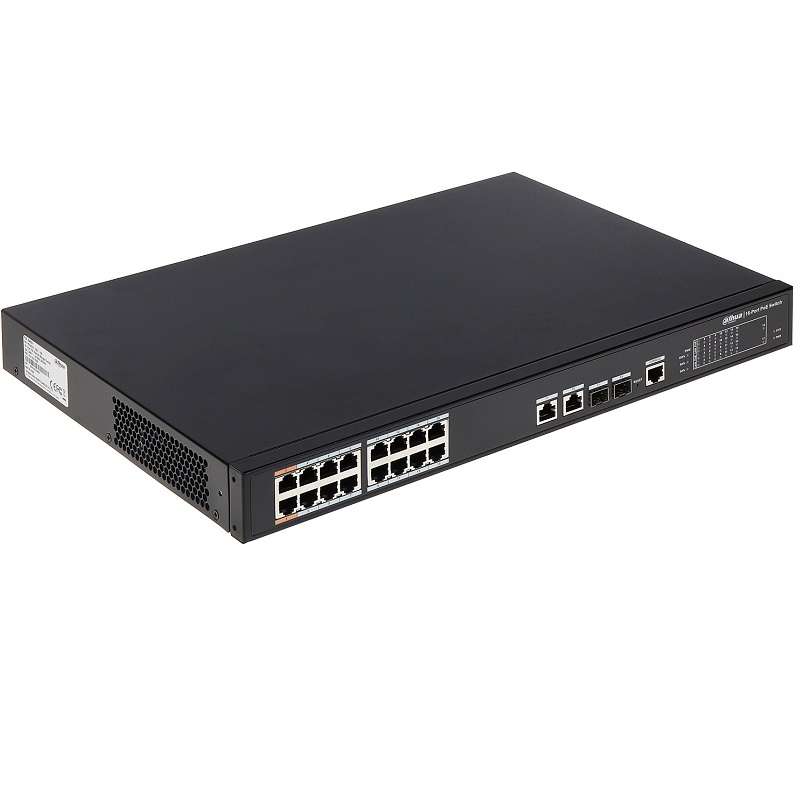

DH-PFS4218-16ET-240
16-Port PoE Switch

Technical Specification
ModelDH-PFS4218-16ET-240
Ethernet Port
2*10/100/1000 Base-T (Combo port)
2*1000 Base-X (Combo port)
16*10/100 Base-T (PoE power supply)
PoE Power Consumption
Port1/2 support Hi-PoE (60W), PoE+, PoE
Each power ≤30W
Total≤240W
PoE ProtocolIEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity8.8G
Packet Forwarding Rate5.36Mpps
Humidity10%~90%
PowerAC 100~240V
Lightning Protection
Common Mode 4KV
Differential Mode 2KV
Working Temperature-10℃~55℃
Weight3.51kg
Dimension(WxDxH)440mm x300mm x44mm


Service Characteristics
System
Username / password: admin/admin
IP Address :192.168.1.110/24
PoE Budget240W
MAC Table4K
VLAN802.1Q Standard VLAN
Spanning Tree
STP
RSTP
Port Aggregation
Static link aggregation
LACP protocol
MirroringMany-to-one port mirroring
DHCPSupport DHCP-Client
Long Distance Mode"Power & Data" transmission distance up to 250m
Flow Control
Half-duplex based on back pressure type control;
Full duplex based on PAUSE frame
Security Features
IP+MAC binding based on port;
IEEE802.1x port authentication
System Maintenance
One-key recovery
Support the updated packet upload
System log
QoS
High and low priority, WRR
802.1P, DSCP
Support priority according to protocol
Network Management
WEB(http and https protocol)
Support SNMP V1/V2C/V3
PoE Management
PoE setting (real-time port comsumption)
PoE event statistics
Green PoE

Accessories
Model
PFT39501.25G 850nm,500m,LC, Multi-mode
PFT39601.25G 1310/1550nm,20km,LC, Single-mode
PFT39701.25G 1550/1310nm,20km,LC, Single-mode
