PFS4206-4P-96
Description
DH-PFS4206-4P-96 www.dahuasecurity.com Features · Two-layer managed PoE switch · MAC auto study and aging, MAC address list capacity is 8K · Support private fast ring network, recovery time <=50ms · Support IEEE802.3af, IEEE802.3at, Hi-PoE standard · Industrial wide temperature design · PoE Management DH-PFS4206-4P-96 4-Port PoE Managed Switch Technical Specification ModelDH-PFS4206-4P-96 Ethernet Port 2*1000 Base-X(SFP) 1*10/100/1000 Base-T(Hi-PoE/PoE+/PoE) 3*10/100 Base-T (PoE+/PoE) PoE Power Consumption Port1, 2, 3 ≤30W Port4≤60W Total≤96W PoE ProtocolPoE(802.3af), PoE+(802.3at), Hi-PoE Switching Capacity6.8Gbps Packet Forwarding Rate4.91Mpps Packet Buffer Memory1Mb Application Humidity10%~90% PowerDC48~57V Lightning Protection Common Mode 4KV Differential Mode 2KV Working Temperature-30°C~65°C Weight480g Dimension(WxDxH)150mmx100mmx30mm Service Characteristics System Username / password: admin/(empty) IP Address :192.168.1.110/24 PoE Budget96W MAC Table Size8K VLAN802.1Q Standard VLAN Port MirroringSupport many-to-one port mirroring Flow Control Support half-duplex based on back pressu...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DH-PFS4206-4P-96
www.dahuasecurity.com
Features
· Two-layer managed PoE switch
· MAC auto study and aging, MAC address list capacity is 8K
· Support private fast ring network, recovery time <=50ms
· Support IEEE802.3af, IEEE802.3at, Hi-PoE standard
· Industrial wide temperature design
· PoE Management

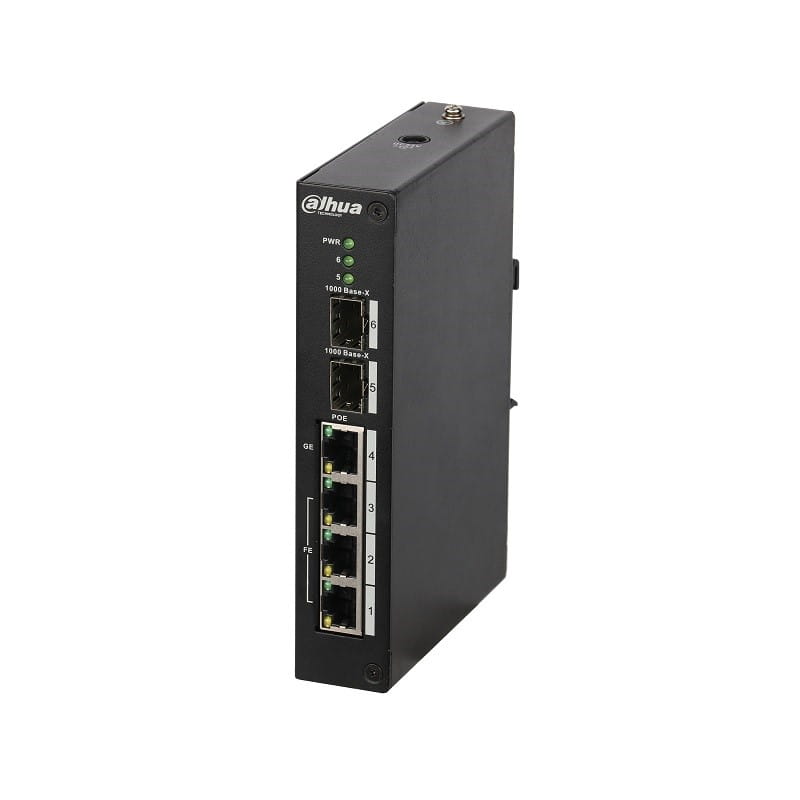

DH-PFS4206-4P-96
4-Port PoE Managed Switch
Technical Specification
ModelDH-PFS4206-4P-96
Ethernet Port
2*1000 Base-X(SFP)
1*10/100/1000 Base-T(Hi-PoE/PoE+/PoE)
3*10/100 Base-T (PoE+/PoE)
PoE Power Consumption
Port1, 2, 3 ≤30W
Port4≤60W
Total≤96W
PoE ProtocolPoE(802.3af), PoE+(802.3at), Hi-PoE
Switching Capacity6.8Gbps
Packet Forwarding Rate4.91Mpps
Packet Buffer Memory1Mb
Application Humidity10%~90%
PowerDC48~57V
Lightning Protection
Common Mode 4KV
Differential Mode 2KV
Working Temperature-30°C~65°C
Weight480g
Dimension(WxDxH)150mmx100mmx30mm
Service Characteristics
System
Username / password: admin/(empty)
IP Address :192.168.1.110/24
PoE Budget96W
MAC Table Size8K
VLAN802.1Q Standard VLAN
Port MirroringSupport many-to-one port mirroring
Flow Control
Support half-duplex based on back pressure type
control
Support full duplex based on PAUSE frame
Network Management WEB, SNMP V1/V2C
Ring Network
Support private fast ring network, recovery time
<=50ms
Support Spanning Tree, STP/RSTP
Support Loop Detection
PoE Management
Support PoE power consumption, PoE on/off of
IPC configuration, power down when exceeding
the value of overload power
