www.dahuasecurity.com

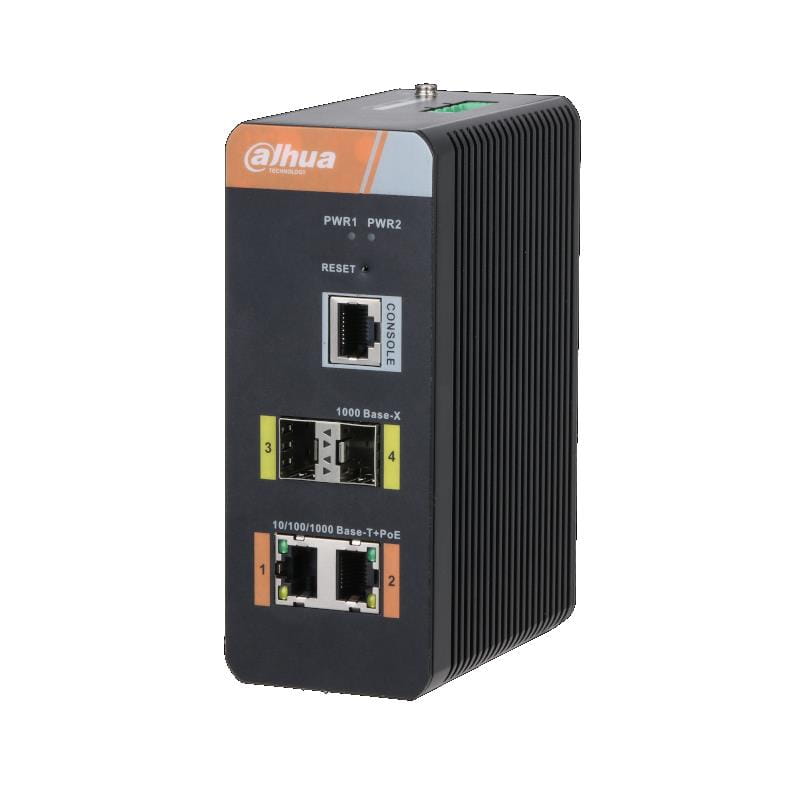

DH-PFS4204-2GT-DP
4-port Gigabit Industrial Switch with 2-port PoE(Managed)

· Support 2 x 10/100/1000 Mbps Ethernet ports and 2 x 100/1000
Mbps fiber ports
· Support VLAN and port aggregation
· Support STP, RSTP, MSTP and ERPS
· Support WEB, CLI and SNMP management
DH-PFS4204-2GT-DP
Functions
Rich port types
2 Ethernet ports with 10/100/1000 Mbps Base-T
2 fiber ports with 100/1000 Mbps Base-X
Rich L2 features
Support VLAN, link aggregation, flow control and port mirroring.
High link reliability
Support ring network protocol, including STP, RSTP, MSTP and ERPS.
Rich device management
Support Web (HTTP and HTTPs), Telnet, CLI, SNMP V1/V2C/V3.
System Overview
Industrial 2-port PoE switch supports ring network, and is applicable
to scenarios with 1 or 2 access points. Featured with industrial
wide temperature range, IP40 full metal enclosure, DIN mount, and
dual power input backup, it can be widely used in safe cities, scenic
spots, transportation, energy, electricity and other harsh outdoor
environments.

Application
Industrial 2-port PoE switch supports ring network, and is applicable to
scenarios with 1 or 2 access points. It can be widely used in safe cities,
scenic spots, transportation, energy, electricity and other harsh outdoor
environments.


Technical Specification
Hardware
Data transmission port
2 Ethernet ports with 10/100/1000 Mbps Base-T
2 fiber ports with 100/1000 Mbps Base-X
Debugging1 console port (Baud rate: 115200 bps)
Power Supply
9V–57V DC
PoE power supply: 48V–57V DC
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Operating Humidity10%–90%
Power Consumption
Idling power consumption: 6W
Full load power consumption: 120W
PoE
PoE BudgetPort 1–2 <=60W, whole PoE budget <=120W
PoE StandardIEEE802.3af, IEEE802.3at, Hi-PoE
PoE Pin AssignmentHi-PoE: 1,2,4,5(V+),3,6,7,8(V-)
Performance
Switching Capacity14 Gbps
Packet Forwarding Rate5.95 Mpps
Packet Buffer Memory1.75 Mbits
MAC Table Size4 K
Static MAC Address256
VLAN Amount 4K
Standards Compliance
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab,
IEEE 802.3z, IEEE 802.3ad
Function
MAC Address TableSupport static MAC address
Spanning Tree ProtocolSTP, RSTP, MSTP, ERPS
VLAN802.1Q
Flow Control
Support flow control based on IEEE802.3X
(full duplex)
Link Aggregation
Support static manual aggregation and static LACP
aggregation
Port MirroringSupport one-to-one and many-to-one port mirroring
MulticastSupport IGMP Snooping
DHCP
Support DHCP-Server, DHCP-Client and DHCP-
Snooping
SecurityIEEE802.1x, support ACL and loop protection
QoS
Support QoS based on COS
Support 8 output queues per port
Support port shapers
Support QoS based on DSCP
System Maintenance
Support upload and download of configuration file
Support upload of upgrade package
Support system log
Device Management
Support Web (HTTP and HTTPs), Telnet, CLI, SNMP
V1/V2C/V3

www.dahuasecurity.com

General
Thunderproof
Common mode: 6kV
Differential mode: 4kV
MountingDIN-Rail
Net Weight0.60 kg (1.32 lb)
Gross Weight0.80 kg (1.76 lb)
Dimensions (L x W x H)
103.2 mm x 53.5 mm x 135.0 mm
(4.06”x 2.11”x 5.31”)
Packaging Dimensions
(L x W x H)
Packing box: 254 mm x 187 mm x 101 mm
(10”x 7.36”x 3.98”)
Protective box: 530 mm x 396 mm x 539 mm
(20.87”x 15.59”x 21.22”)
Package20 devices in one package
CertificationsCE, FCC
DH-PFS4204-2GT-DP

Accessories (to be purchased separately)
SFP Module
PFT39501.25G 850nm, 500m, LC, multi-mode
PFT39601.25G 1310/1550nm, 20km, LC, single-mode
PFT3970
1.25G 1550/1310nm, 20km, LC, single-mode
DIN-Rail Power Supply
DRL-48V120W1AA
120W, 100VAC–240VAC, 48V2.5A
EDP-75-48
75W, 100VAC–240VAC, 48V1.6A

Installation

Dimensions (mm[inch])

53.5
[2.11]

94.4
[3.71]
104.9
[4.13]

135.0
[5.32]

151.9
[5.98]
