Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DH-PFS3409-4GT

www.dahuasecurity.com
Features
· Layer 2 Hardened Ethernet switch
· MAC auto study and aging, MAC address list capacity is 4K
· Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and
IEEE802.3X standards
· Adopts metal structure
· Industrial wide working temperature design: -30°C~+65°C
· High protection grade, supports common mode 4KV,
differential mode 2KV
· Supports dual power backup
DH-PFS3409-4GT
9-Port Gigabit Switch (Unmanaged)

Technical Specification
ModelDH-PFS3409-4GT
Ethernet Port
5*10/100/1000 Mbps Base-T
4*1000Mbps Base-X
Switching Capacity33Gbps
Packet Forwarding Rate13.39Mpps
Packet Buffer Memory1.75Mb
MAC Table Size4K
Flow ControlEnable by default
Application Humidity10%~90%
PowerDC9~57V
Lightning Protection
Common Mode 4KV
Differential Mode 2KV
ESD
Contact discharge: ±6kV
Air discharge: ±8kV
Working Temperature-30°C~65°C
Weight0.62kg
Dimension(WxDxH)150mmx110mmx42mm


Accessories
Model
PFT39501.25G 850nm,500m,LC, Multi-mode
PFT39601.25G 1310/1550nm,20km,LC, Single-mode
PFT39701.25G 1550/1310nm,20km,LC, Single-mode
Product Overview

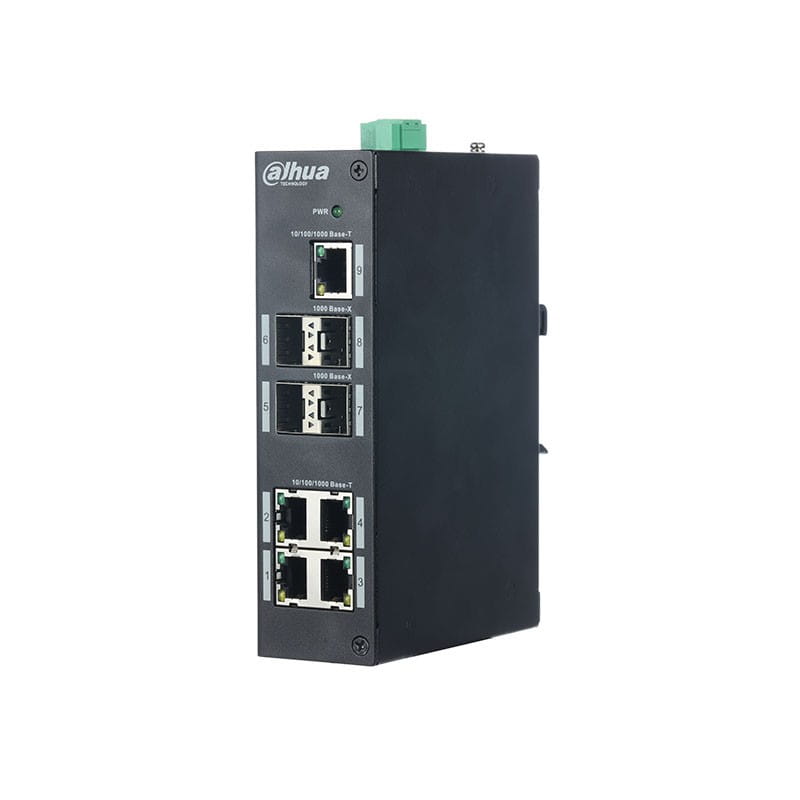

DH-PFS3409-4GT is a layer two Hardened Switch, which provides 5
*10/100/1000Mbps Ethernet ports, 4 *1000Mbps optical ports. With
high level lightning protection and wide working temperature range
makes it a better performance in outdoor or harsh environment.
