www.dahuasecurity.com

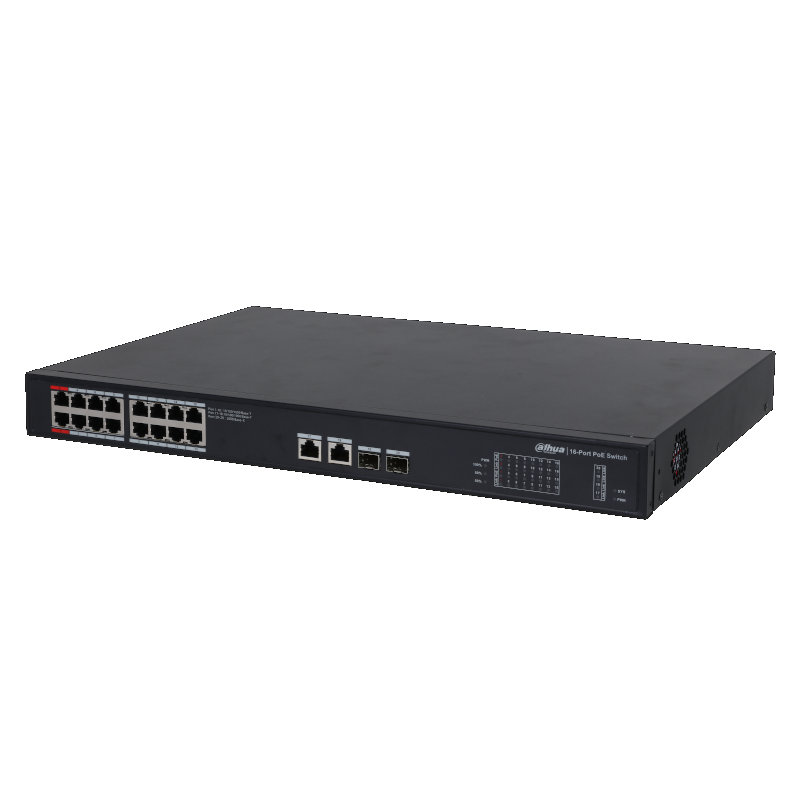

DH-PFS3220-16GT-240

· Intelligent PoE
· Red Port Supports BT 90W
· All-giga Ports
· Smooth Transmission
· Wide Working Temperature: –10 to 55°C (14°F to 131°F)
· Plug and Play
All-giga PoE Switch | DH-PFS3220-16GT-240
System Overview
DH-PFS3220-16GT-240 is an unmanaged PoE switch with red port
supporting IEEE802.3bt standard. It supports maximum 90W power
supply and power consumption management strategy to ensure
the stable operation under extreme circumstances. Gigabit accesses
support high definition. Gigabit uplink optical fiber supports long
distance transmission.
Scene
Applicable to small and micro-scale monitoring networks such as office
desktops, schools, hotels, supermarkets, hospitals.

Technical Specification
Certification
Layer
Layer 2
ManagedNo
Switching Capacity52 Gbps
Packet Forwarding Rate29.76 Mpps
Packet Buffer Memory
4 Mbit
MAC Table Size8K
Standards Compliance
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab,
IEEE802.3z
Hardware Feature
Standard Power SupplyYes
PoEYes
Ethernet Port16
Optical Port2

Ethernet Port Rate1 Gbps
Optical Port Rate1 Gbps
Number of Bussiness Card
Slots
Port 1–16: 16 x RJ45 10/100/1000 M (PoE)
Port 17–18: 2 x RJ45 10/100/1000 M (uplink)
Port 19–20: 2 x SFP 1000 M (uplink)
Power Supply100V AC–240V AC
Operating Temperature–10°C to 55°C (14°F to 131°F)
Operating Humidity10%–90%
Storage Humidity5%–95%
Power Consumption
Idling: 7W
Full load: 240W
PoE
PoE StandardIEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt
PoE BudgetPort 1–2≤90W, Port 3–16≤30W, total≤240W
PoE Pin AssignmentPoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
General
ESD
Air discharge: 8kV
Contact discharge: 6kV
Thunderproof
Common mode: 4kV
Differential mode: 2kV
Dimensions440 mm x 300 mm x 44 mm (17.32" x 11.81" x 1.73")
Packaging Dimensions527 mm x 412 mm x 110 mm (20.75" x 16.22" x 4.33")

1G
红口90W
90W


www.dahuasecurity.com

All-giga PoE Switch | DH-PFS3220-16GT-240
Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

Dimensions (mm[inch])
