PFS3218-16ET-135

www.dahuasecurity.com  DH - PFS3218 -16E T-135    · Intelligent PoE  · PD Alive(PoE Watchdog)  · Long Distance PoE Transmission  · Smooth Transmission  · Wide Working Temperature: –10 to 55°C (14°F to 131°F)  · Port Isolation  Desktop PoE Switch | DH-PFS3218-16ET-135   System Overview  DH-PFS3218-16ET-135 is a 100 Mbps dual-port uplink unmanaged PoE  switch. It supports functional DIP switch which provides port isolation,  long distance power supply, PoE watchdog and QoS control. Featured  with Gigabit uplink optical ports, it meets the need of long distance  transmission.   Scene  Applicable to small and micro-scale monitoring networks such as office  desktops, schools, hotels, supermarkets, hospitals.    Technical Specification  Performance  Layer  Layer 2  ManagedNo  Switching Capacity7.2 Gbps  Packet Forwarding Rate5.3568 Mpps  Packet Buffer Memory  4 Mbit  MAC Table Size8K  Standards Compliance  IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab,  IEEE802.3z  Hardware Feature  Standard Power SupplyYes  PoEYes  Ethernet Port16  Optical Port2  Ethernet Port Rate100 Mbps    Optical Port Rate1 Gbps  Number of Bussiness Card  Slots  "Port 1–16:...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.dahuasecurity.com
DH - PFS3218 -16E T-135

· Intelligent PoE
· PD Alive(PoE Watchdog)
· Long Distance PoE Transmission
· Smooth Transmission
· Wide Working Temperature: –10 to 55°C (14°F to 131°F)
· Port Isolation

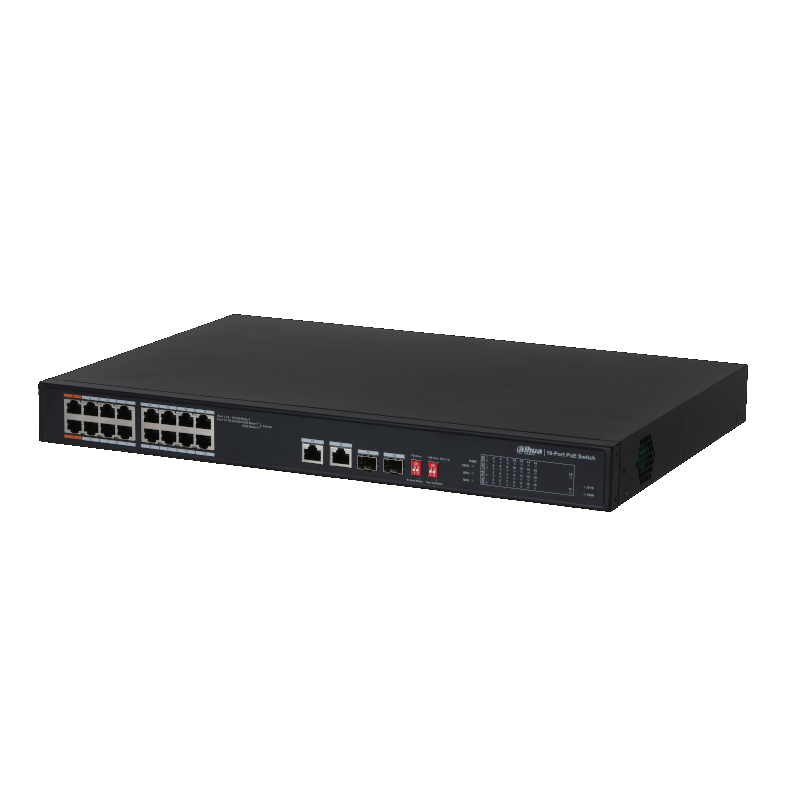

Desktop PoE Switch | DH-PFS3218-16ET-135
System Overview
DH-PFS3218-16ET-135 is a 100 Mbps dual-port uplink unmanaged PoE
switch. It supports functional DIP switch which provides port isolation,
long distance power supply, PoE watchdog and QoS control. Featured
with Gigabit uplink optical ports, it meets the need of long distance
transmission.
Scene
Applicable to small and micro-scale monitoring networks such as office
desktops, schools, hotels, supermarkets, hospitals.

Technical Specification
Performance
Layer
Layer 2
ManagedNo
Switching Capacity7.2 Gbps
Packet Forwarding Rate5.3568 Mpps
Packet Buffer Memory
4 Mbit
MAC Table Size8K
Standards Compliance
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab,
IEEE802.3z
Hardware Feature
Standard Power SupplyYes
PoEYes
Ethernet Port16
Optical Port2
Ethernet Port Rate100 Mbps

Optical Port Rate1 Gbps
Number of Bussiness Card
Slots
"Port 1–16: 16 x RJ45 10/100 Mbps
Port 17–18: 2 x RJ45 10/100/1000 Mbps (uplink)
Port 17–18: 2 x SFP 1000 Mbps (uplink) (combo)"
Power Supply100V AC–240V AC
Operating Temperature–10°C to 55°C (14°F to 131°F)
Operating Humidity10%–90%
Storage Humidity5%–95%
Power Consumption
"Idling: 5W
Full load: 135W"
PoE
PoE StandardIEEE802.3af, IEEE802.3at, Hi-PoE
PoE BudgetPort 1–2≤60W, Port 3–16≤30W, total≤135W
PoE Pin AssignmentPoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE
Transmission
Yes
Function
VLANPort Isolation
QoSYes
System MaintenancePD Alive
General
ESD
Air discharge: 8kV
Contact discharge: 6kV
Thunderproof
Common mode: 4kV
Differential mode: 2kV
Dimensions440 mm x 300 mm x 44 mm (17.32" x 11.81" x 1.73")
Packaging Dimensions527 mm x 412 mm x 110 mm (20.75" x 16.22" x 4.33")

250m

PoE atchdog

Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
