PFS3211-8GT-120-V2

DH-PFS3211-8GT-120    www.dahuasecurity.com   Features  · Layer 2 Hardened PoE switch  · MAC auto study and aging, MAC address list capacity is 4K  · Support IEEE802.3af, IEEE802.3at and Hi-PoE standard  · Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and  IEEE802.3X standards  · Adopts metal structure  · Industrial wide working temperature design: -30°C~+65°C  · High protection grade, supports common mode 4KV,  differential mode 2KV  · Supports dual power backup  DH-PFS3211-8GT-120  11-Port Gigabit Switch with 8-Port PoE (Unmanaged)    Technical Specification  ModelDH-PFS3211-8GT-120  Ethernet Port  8*10/100/1000Mbps Base-T (PoE power supply)  1*10/100/1000 Mbps Base-T  2*1000Mbps Base-X  PoE Power Consumption  Port1&5 ≤60W, Port2~4&Port6~8≤30W, Total  power≤120W  PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE  Switching Capacity33Gbps  Packet Forwarding Rate16.37Mpps  Packet Buffer Memory1.75Mb  MAC Table Size4K  Flow ControlEnable by default  Application Humidity10%~90%  PowerDC48~57V  Lightning Protection  Common Mode 4KV  Differential Mode 2KV  ESD  Contact discharge: ±6kV  Air discharge: ±8kV  Working Temperature-30°C~65°C  Weight0.62kg...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DH-PFS3211-8GT-120

www.dahuasecurity.com
Features
· Layer 2 Hardened PoE switch
· MAC auto study and aging, MAC address list capacity is 4K
· Support IEEE802.3af, IEEE802.3at and Hi-PoE standard
· Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and
IEEE802.3X standards
· Adopts metal structure
· Industrial wide working temperature design: -30°C~+65°C
· High protection grade, supports common mode 4KV,
differential mode 2KV
· Supports dual power backup
DH-PFS3211-8GT-120
11-Port Gigabit Switch with 8-Port PoE (Unmanaged)

Technical Specification
ModelDH-PFS3211-8GT-120
Ethernet Port
8*10/100/1000Mbps Base-T (PoE power supply)
1*10/100/1000 Mbps Base-T
2*1000Mbps Base-X
PoE Power Consumption
Port1&5 ≤60W, Port2~4&Port6~8≤30W, Total
power≤120W
PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
Switching Capacity33Gbps
Packet Forwarding Rate16.37Mpps
Packet Buffer Memory1.75Mb
MAC Table Size4K
Flow ControlEnable by default
Application Humidity10%~90%
PowerDC48~57V
Lightning Protection
Common Mode 4KV
Differential Mode 2KV
ESD
Contact discharge: ±6kV
Air discharge: ±8kV
Working Temperature-30°C~65°C
Weight0.62kg
Dimension(WxDxH)150mmx110mmx42mm


Accessories
Model
PFT39501.25G 850nm,500m,LC, Multi-mode
PFT39601.25G 1310/1550nm,20km,LC, Single-mode
PFT39701.25G 1550/1310nm,20km,LC, Single-mode

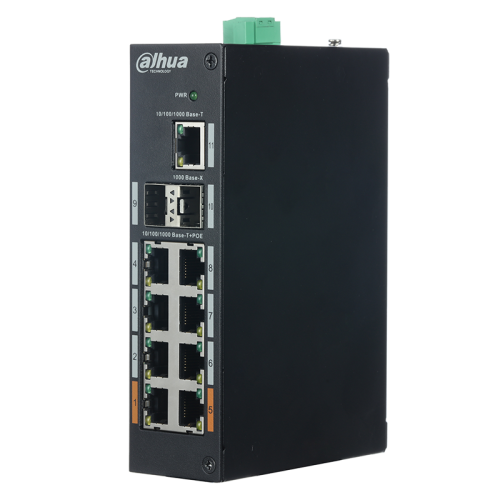

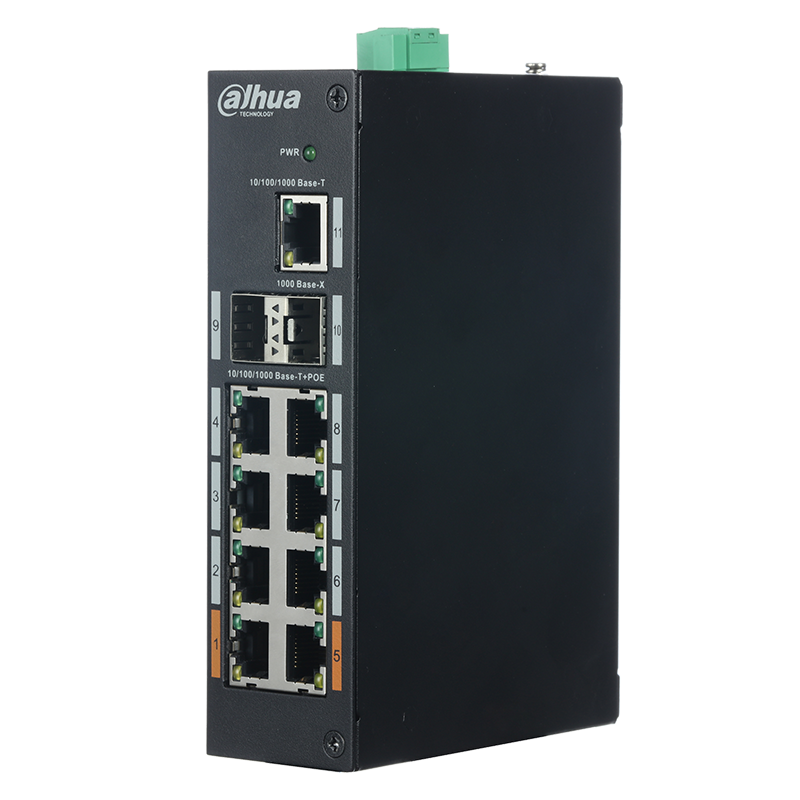

Product Overview
DH-PFS3211-8GT-120 is a layer two Hardened PoE Switch, which
provides 8 *10/100/1000Mbps PoE ports, 2 *1000Mbps optical ports
and 1*10/100/1000Mbps Ethernet uplink port. With high level lightning
protection and wide working temperature range makes it a better
performance in outdoor or harsh environment.
