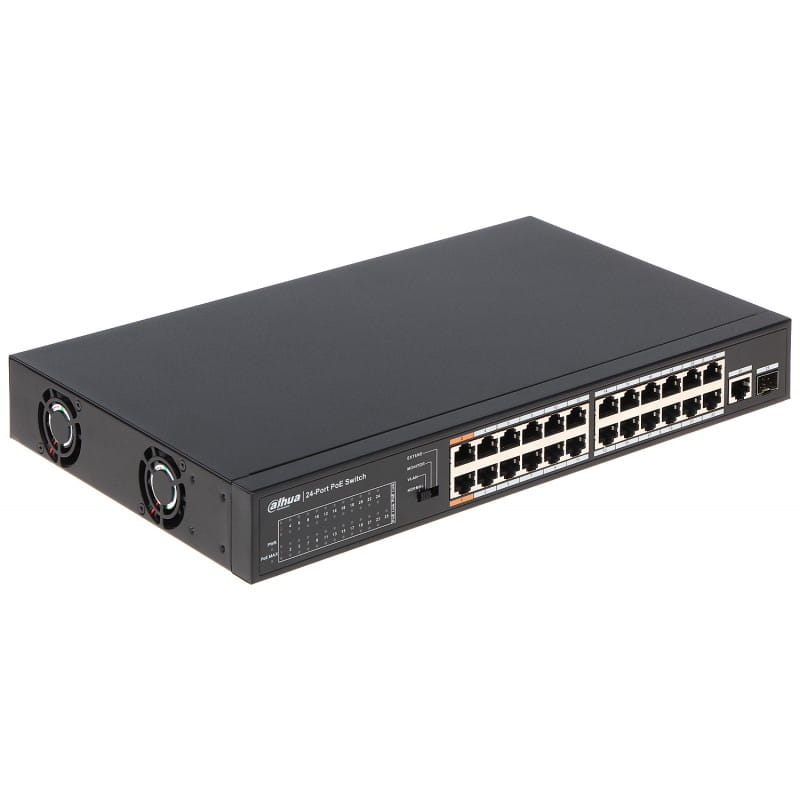

PFS3125-24ET-190
Description
DH-PFS3125-24ET-190 www.dahuasecurity.com Features · Compliant IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x standards · Supports IEEE802.3af, IEEE802.3at, Hi-PoE standards · Supports normal working mode, port isolation (VLAN) mode, monitoring mode, network extend mode. · Supports Store-and-Forward · 24*10/100Mbps ports, 1*Gigabit Combo port, support port auto flipping (Auto MDI / MDIX) · Port 1-2 support the maximum power of 60W, PoE output total power up to 190W · Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode · 4K entry MAC address table with auto-learning and auto-aging · LED indicators for monitoring power, link and activity DH-PFS3125-24ET-190 24-Port FE PoE+ 1-Port Gigabit Combo PoE Switch Technical Specification ModelDH-PFS3125-24ET-190 Standards IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z,IEEE802.3x, IEEE802.3af, IEEE802.3at, Hi-PoE Interface 24 x 10/100Mbps RJ45 1 x Gigabit Combo (RJ45/SFP) Transfer MethodStore-and-Forward Switching Capacity6.8Gbps Packet Forwarding Rate5.06Mbps Packet Buffer4Mbit PoE Ports(RJ45) Port 1/2 : Hi-PoE/PoE+/PoE; Port 1-24 : PoE+/PoE...
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DH-PFS3125-24ET-190
www.dahuasecurity.com
Features
· Compliant IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x
standards
· Supports IEEE802.3af, IEEE802.3at, Hi-PoE standards
· Supports normal working mode, port isolation (VLAN) mode,
monitoring mode, network extend mode.
· Supports Store-and-Forward
· 24*10/100Mbps ports, 1*Gigabit Combo port, support port
auto flipping (Auto MDI / MDIX)
· Port 1-2 support the maximum power of 60W, PoE output
total power up to 190W
· Supports IEEE802.3x flow control for Full-duplex Mode and
backpressure for Half-duplex Mode
· 4K entry MAC address table with auto-learning and
auto-aging
· LED indicators for monitoring power, link and activity
DH-PFS3125-24ET-190
24-Port FE PoE+ 1-Port Gigabit Combo PoE Switch
Technical Specification
ModelDH-PFS3125-24ET-190
Standards
IEEE 802.3, IEEE 802.3u, IEEE802.3ab,
IEEE802.3z,IEEE802.3x, IEEE802.3af, IEEE802.3at,
Hi-PoE
Interface
24 x 10/100Mbps RJ45
1 x Gigabit Combo (RJ45/SFP)
Transfer MethodStore-and-Forward
Switching Capacity6.8Gbps
Packet Forwarding Rate5.06Mbps
Packet Buffer4Mbit
PoE Ports(RJ45)
Port 1/2 : Hi-PoE/PoE+/PoE;
Port 1-24 : PoE+/PoE
Power Pin Assignment
1 to 2 port: 1/2/4/5 (+), 3/6/7/8 (-)
Other PoE port: 4/5 (+), 7/8 (-)
PoE Budget190W
Mode
Default modeAll ports can communicate with each other
Isolation mode
PoE port cannot communicate with each other, but
can communicate with the uplink Combo port
CCTV mode
1 to 8 ports support port priority, optimize port
cache, switch all ports can communicate with each
other
Extender mode
1 to 8 port rate down to 10Mbps, the farthest
transmission distance of up to 250 meters, all ports
can communicate with each other
Accessories
Model
PFT39501.25G 850nm,500m,LC, Multi-mode
PFT39601.25G 1310/1550nm,20km,LC, Single-mode
PFT39701.25G 1550/1310nm,20km,LC, Single-mode
Indicators
Per DevicePower: Green MAX : Red
Per PortLink/Act: Green PoE: Yellow
Power SupplyAC 100V~240V 50/60HZ
Dimensions (W x D x H)340*200*43 mm (13” metal case)
Environment
Operating Temperature: 0°C ~ 45°C
Storage Temperature: -40°C ~ 70°C
Operating Humidity: 10%~90% RH No condensation
Storage humidity: 5%~90% RH No condensation
