PFS3110-8ET-96-V2

DH-PFS3110-8ET-96    www.dahuasecurity.com   Features  · Layer two Hardened PoE switch  · Supports PoE power management  · MAC auto learning and aging, MAC address capacity is 8K  · Conforms to IEEE802.3af and IEEE802.3at power supply  standard. Port 1-2 supports Hi-PoE 60W power supply  · Supports IEEE802.3, IEEE802.3u, IEEE802.3ab/z and  IEEE802.3X standards  · Wide working temperature design: -30°C~ 65°C  · Supports dual power backup  DH-PFS3110-8ET-96  8-Port PoE Switch (Unmanaged)    Technical Specification  ModelDH-PFS3110-8ET-96  Ethernet Port  1*1000 Base-X  1*10/100/1000 Base-T  8*10/100 Base-T (PoE power supply)  PoE Power ConsumptionPort1-2≤60W, Port3-8≤30W, Total≤96W  PoE PIN Assignment1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)  PoE Power ManagementSupport  PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE  Switching Capacity7.6G  Packet Forwarding Rate4.17Mpps  Packet Buffer Memory1Mb  MAC Table Size8K  Flow ControlEnable by default  Application Humidity5%~95%  PowerDC 48~57V power adapter  Lightning Protection  Common Mode 6KV  Differential Mode 4KV  ESD Protection  Air Discharge 15KV  Contact Discharge 8KV  Working Temperature-30°C~65°C  Weight...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DH-PFS3110-8ET-96

www.dahuasecurity.com
Features
· Layer two Hardened PoE switch
· Supports PoE power management
· MAC auto learning and aging, MAC address capacity is 8K
· Conforms to IEEE802.3af and IEEE802.3at power supply
standard. Port 1-2 supports Hi-PoE 60W power supply
· Supports IEEE802.3, IEEE802.3u, IEEE802.3ab/z and
IEEE802.3X standards
· Wide working temperature design: -30°C~ 65°C
· Supports dual power backup
DH-PFS3110-8ET-96
8-Port PoE Switch (Unmanaged)

Technical Specification
ModelDH-PFS3110-8ET-96
Ethernet Port
1*1000 Base-X
1*10/100/1000 Base-T
8*10/100 Base-T (PoE power supply)
PoE Power ConsumptionPort1-2≤60W, Port3-8≤30W, Total≤96W
PoE PIN Assignment1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
PoE Power ManagementSupport
PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
Switching Capacity7.6G
Packet Forwarding Rate4.17Mpps
Packet Buffer Memory1Mb
MAC Table Size8K
Flow ControlEnable by default
Application Humidity5%~95%
PowerDC 48~57V power adapter
Lightning Protection
Common Mode 6KV
Differential Mode 4KV
ESD Protection
Air Discharge 15KV
Contact Discharge 8KV
Working Temperature-30°C~65°C
Weight540g
Dimension(WxDxH)150mmx100mmx42mm


Accessories
Model
PFT39501.25G 850nm,500m,LC, Multi-mode
PFT39601.25G 1310/1550nm,20km,LC, Single-mode
PFT39701.25G 1550/1310nm,20km,LC, Single-mode

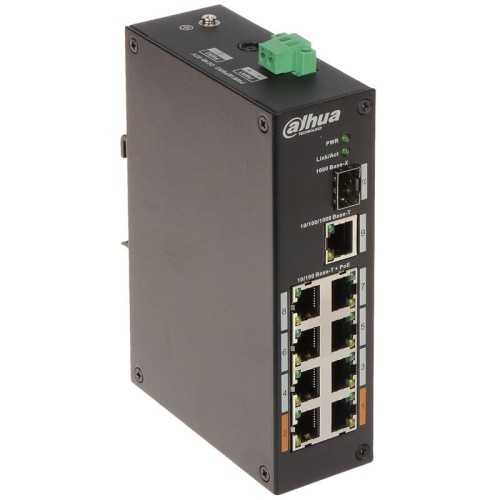

DH-PFS3110-8ET-96 is a layer two Hardened PoE Switch, which
provides 8*10/100Mbps PoE ports, 1*100/1000 Mbps optical port and
1*10/100/1000Mbps Ethernet uplink port. With high level lightning
protection and wide working temperature range makes it a better
performance in outdoor or harsh environment.

Product Overview
