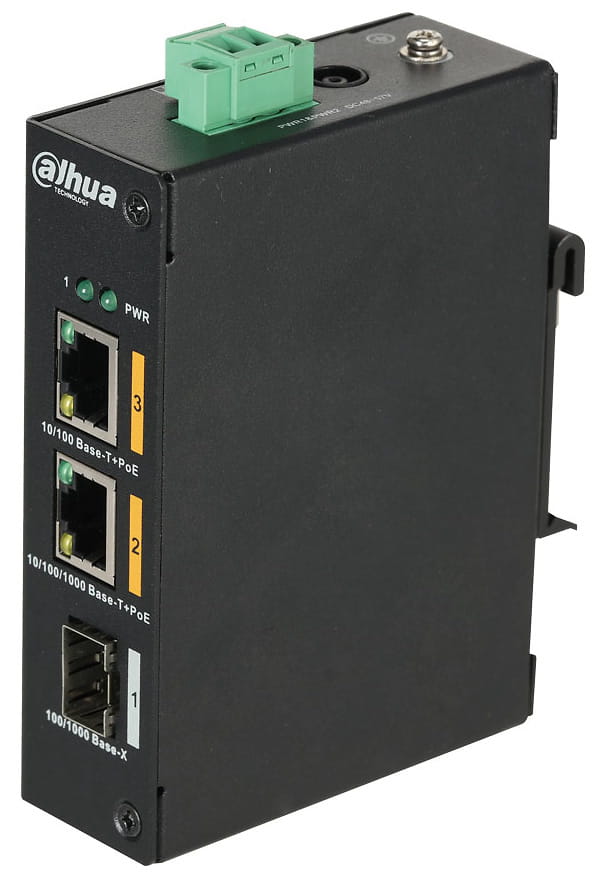

PFS3103-1GT1ET-60

DH-PFS3103-1GT1ET-60    www.dahuasecurity.com   Features  · Layer-two Unmanaged PoE Switch  · Conforms to IEEE802.3, IEEE802.3u and IEEE802.3X  standards  · MAC auto study and aging, MAC address list capacity is 8K  · Conforms to IEEE802.3af and IEEE802.3at power supply  standard. Port 2 and 3 support Hi-PoE 60W power supply  · Adopts metal structure  · High protection grade, supports common mode 4KV,  differential mode 2KV  · Supports DC 48V-DC 57V power supply and dual power  backup  · Supports -30°C~65°C operating temperature  DH-PFS3103-1GT1ET-60  3-Port Switch with 2-Port PoE    Technical Specification  ModelDH-PFS3103-1GT1ET-60  Ethernet Port  1*RJ45 10/100M (PoE)  1*RJ45 10/100/1000M (PoE)  1*SFP 100/1000M (uplink)  PoE Power Consumption  Port2 and port 3 support Hi-PoE 60W  Total≤60W  PoE ProtocolIEEE802.3af, IEEE802.3at, Hi-PoE  Switching Capacity6.8Gbps  Packet Forwarding Rate3.12Mpps  Packet Buffer Memory1Mb  Application Humidity10%~90%  PowerDC48-57V  Lightning Protection  Common Mode 4KV  Differential Mode 2KV  Working Temperature-30°C~65°C  Dimension(WxDxH)105mm x75mm x30mm      Dimensions (mm)    Accessories  Model  PFT395...

Warning! Product withdrawn from production!

Replacement product: PFS3103-1GT1ET-60-V2

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DH-PFS3103-1GT1ET-60

www.dahuasecurity.com
Features
· Layer-two Unmanaged PoE Switch
· Conforms to IEEE802.3, IEEE802.3u and IEEE802.3X
standards
· MAC auto study and aging, MAC address list capacity is 8K
· Conforms to IEEE802.3af and IEEE802.3at power supply
standard. Port 2 and 3 support Hi-PoE 60W power supply
· Adopts metal structure
· High protection grade, supports common mode 4KV,
differential mode 2KV
· Supports DC 48V-DC 57V power supply and dual power
backup
· Supports -30°C~65°C operating temperature
DH-PFS3103-1GT1ET-60
3-Port Switch with 2-Port PoE

Technical Specification
ModelDH-PFS3103-1GT1ET-60
Ethernet Port
1*RJ45 10/100M (PoE)
1*RJ45 10/100/1000M (PoE)
1*SFP 100/1000M (uplink)
PoE Power Consumption
Port2 and port 3 support Hi-PoE 60W
Total≤60W
PoE ProtocolIEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity6.8Gbps
Packet Forwarding Rate3.12Mpps
Packet Buffer Memory1Mb
Application Humidity10%~90%
PowerDC48-57V
Lightning Protection
Common Mode 4KV
Differential Mode 2KV
Working Temperature-30°C~65°C
Dimension(WxDxH)105mm x75mm x30mm


Dimensions (mm)

Accessories
Model
PFT39501.25G 850nm,500m,LC, Multi-mode
PFT39601.25G 1310/1550nm,20km,LC, Single-mode
PFT39701.25G 1550/1310nm,20km,LC, Single-mode
