Warning! Product withdrawn from production!

Replacement product: PFS3010-8ET-96-V2

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

PFS3010-8ET-96

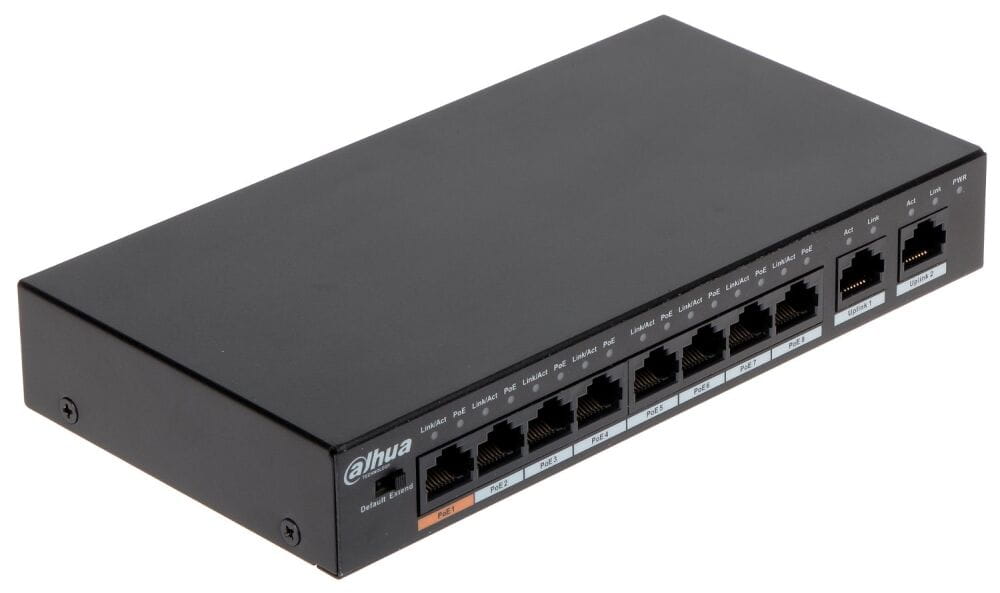

Product Overview
PFS3010-8ET-96 is an 8-port fast ethernet switch, which supports 250
meters long distance PoE transmission. It provides 8*10/100Mbps PoE
ports and 2*10/100/1000Mbps uplink ports. The product is equipped
with two transmission modes (Default/Extend), which are controlled by
DIP switch.
www.dahuasecurity.com
Features
· Layer two commercial switch
· Supports PoE power management
· Supports wall-mount installation
· Supports anti-theft lock hole
· MAC auto learning and aging, MAC address capacity is 16K
· Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
· RJ45 port supports 10/100 Mbps self-adaptation
· Supports 250 meters long distance PoE transmission
· Conforms to IEEE802.3af and IEEE802.3at power supply
standard. Port 1 supports Hi-PoE 60W power supply
PFS3010 -8E T-96
8-Port PoE Switch (Unmanaged)

Technical Specification
ModelPFS3010-8ET-96
Ethernet Port
8*10/100Mbps PoE ports
2*10/100/1000Mbps ports
PoE Power ConsumptionPort1≤60W, Port2-8≤30W, Total≤96W
PoE PIN Assignment1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
PoE Power ManagementSupport
PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
Switching Capacity5.6Gbps
Packet Forwarding Rate4.17Mpps
Packet Buffer Memory4Mb
MAC Table Size16K
Flow ControlEnable by default
Application Humidity5%~95%
PowerDC 48~57V power adapter
Lightning Protection
Common Mode 2KV
Differential Mode 1KV
ESD Protection
Air Discharge 8KV
Contact Discharge 6KV
Working Temperature-10°C~55°C
Weight490g
Dimension(WxDxH)190mmx100mmx30mm
