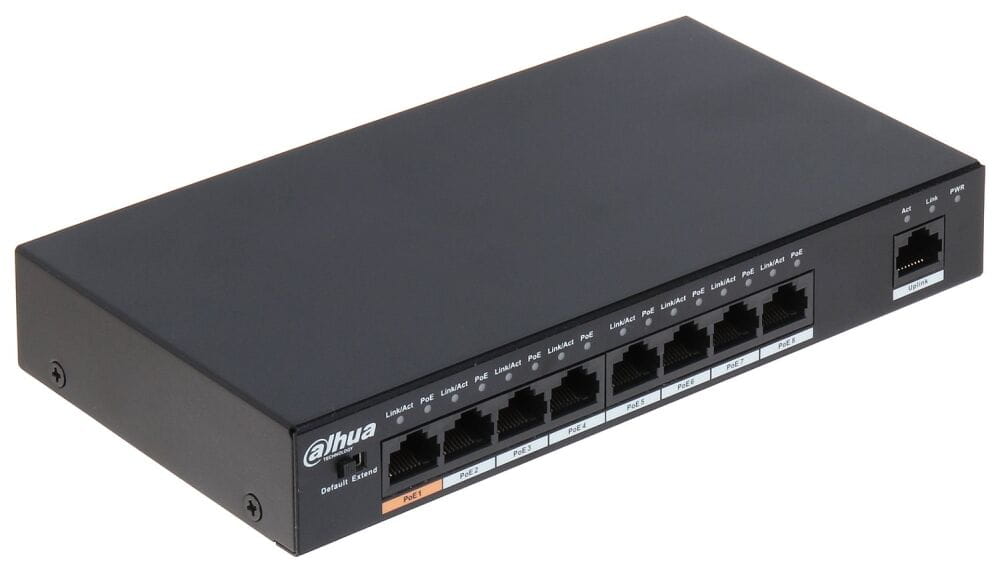

PFS3009-8ET-96

DH-PFS3009-8ET-96     Product Overview  DH-PFS3009-8ET-96 is an 8-port fast ethernet switch, which supports  250 meters long distance PoE transmission. It provides 8*10/100Mbps  PoE ports and 1*100 Mbps uplink port. The product is equipped with  two transmission modes (Default/Extend), which are controlled by DIP  switch.  www.dahuasecurity.com  Features  · Layer two commercial switch  · Supports PoE power management  · Supports wall-mount installation  · Supports anti-theft lock hole  · MAC auto learning and aging, MAC address capacity is 2K  · Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards  · RJ45 port supports 10/100 Mbps self-adaptation  · Supports 250 meters long distance PoE transmission  · Conforms to IEEE802.3af and IEEE802.3at power supply  standard. Port 1 supports Hi-PoE 60W power supply  DH-PFS3009-8ET-96  8-Port PoE Switch (Unmanaged)    Technical Specification  ModelDH-PFS3009-8ET-96  Ethernet Port  1*10/100 Base-T  8*10/100 Base-T (PoE power supply)  PoE Power ConsumptionPort1≤60W, Port2-8≤30W, Total≤96W  PoE PIN Assignment1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)  PoE Power ManagementSupport   PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE  Switching Cap...

Warning! Product withdrawn from production!

Replacement product: PFS3009-8ET1GT-96

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DH-PFS3009-8ET-96

Product Overview
DH-PFS3009-8ET-96 is an 8-port fast ethernet switch, which supports
250 meters long distance PoE transmission. It provides 8*10/100Mbps
PoE ports and 1*100 Mbps uplink port. The product is equipped with
two transmission modes (Default/Extend), which are controlled by DIP
switch.
www.dahuasecurity.com
Features
· Layer two commercial switch
· Supports PoE power management
· Supports wall-mount installation
· Supports anti-theft lock hole
· MAC auto learning and aging, MAC address capacity is 2K
· Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
· RJ45 port supports 10/100 Mbps self-adaptation
· Supports 250 meters long distance PoE transmission
· Conforms to IEEE802.3af and IEEE802.3at power supply
standard. Port 1 supports Hi-PoE 60W power supply
DH-PFS3009-8ET-96
8-Port PoE Switch (Unmanaged)

Technical Specification
ModelDH-PFS3009-8ET-96
Ethernet Port
1*10/100 Base-T
8*10/100 Base-T (PoE power supply)
PoE Power ConsumptionPort1≤60W, Port2-8≤30W, Total≤96W
PoE PIN Assignment1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
PoE Power ManagementSupport
PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
Switching Capacity1.8Gbps
Packet Forwarding Rate1.34Mpps
Packet Buffer Memory768Kb
MAC Table Size2K
Flow ControlEnable by default
Application Humidity5%~95%
PowerDC 48~57V power adapter
Lightning Protection
Common Mode 4KV
Differential Mode 2KV
ESD Protection
Air Discharge 8KV
Contact Discharge 6KV
Working Temperature-10°C~55°C
Weight490g
Dimension(WxDxH)190mmx100mmx30mm
