Warning! Product withdrawn from production!

Replacement product: PFS3006-4ET-60-V2

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

PFS3006-4ET-60

Product Overview

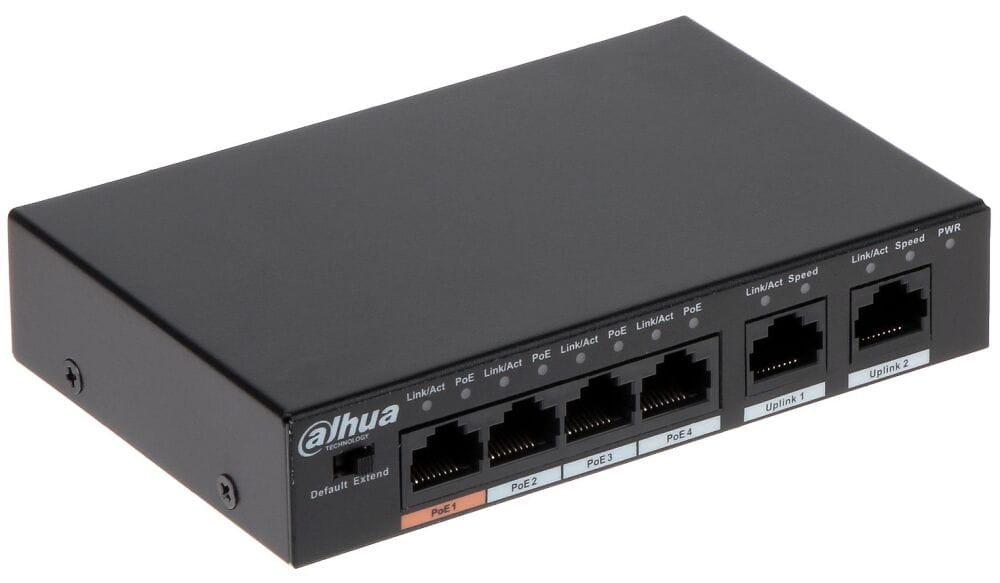

PFS3006-4ET-60 is a 4-port fast ethernet switch, which supports 250
meters long distance PoE transmission. It provides 4*10/100Mbps
PoE ports and 2*100 Mbps uplink ports. The product is equipped with
two transmission modes (Default/Extend), which are controlled by DIP
switch.
www.dahuasecurity.com
Features
· Layer two commercial switch
· Supports PoE power management
· Supports wall-mount installation
· Supports anti-theft lock hole
· MAC auto learning and aging, MAC address capacity is 2K
· Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
· RJ45 port supports 10/100 Mbps self-adaptation
· Supports 250 meters long distance PoE transmission
· Conforms to IEEE802.3af and IEEE802.3at power supply
standard. Port 1 supports Hi-PoE 60W power supply
PFS30 06 - 4E T- 60
4-Port PoE Switch (Unmanaged)

Technical Specification
ModelPFS3006-4ET-60
Ethernet Port
2*10/100Mbps Uplink ports
4*10/100 Mbps PoE ports
PoE Power ConsumptionPort1≤60W, Port2-4≤30W, Total≤60W
PoE PIN Assignment1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
PoE Power ManagementSupport
PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
Switching Capacity1.8Gbps
Packet Forwarding Rate890kpps
Packet Buffer Memory768Kb
MAC Table Size2K
Flow ControlEnable by default
Application Humidity5%~95%
PowerDC 48~57V power adapter
Lightning Protection
Common Mode 2KV
Differential Mode 1KV
ESD Protection
Air Discharge 8KV
Contact Discharge 6KV
Working Temperature-10°C~55°C
Weight290g
Dimension(WxDxH)130mmx85mmx26mm
