DH-PFS3005-4P-58

Product Overview
DH-PFS3005-4P-58 is layer-2 PoE Ethernet switch. It can reach lightning
protection level 3. The device can support up to 2 IEEE802.3at or 4
IEEE802.3af PDs (The total PoE power is 58W). In order to acquire
smooth monitoring, it’s recommended to connect max 4 IP cameras at a
bit rate of less than 4Mbps respectively.
www.dahuasecurity.com
Features
· Two-layer PoE Ethernet switch
· MAC auto study and aging, MAC address list capacity is 1K
Support IEEE802.3af, IEEE802.3at standard
· Conform IEEE802.3, IEEE802.3u and IEEE802.3X standards
· Default Mode: The device works as a general switch and all
ports support 10/100Mbps auto-negotiation.
· Extend Mode: VLAN isolation is enabled. Ports 1-4 will be
isolated respectively (10Mbps auto-negotiation), but they can
communicate with the Uplink port. Besides, the transmission
distance of power and network data is up to 250m.

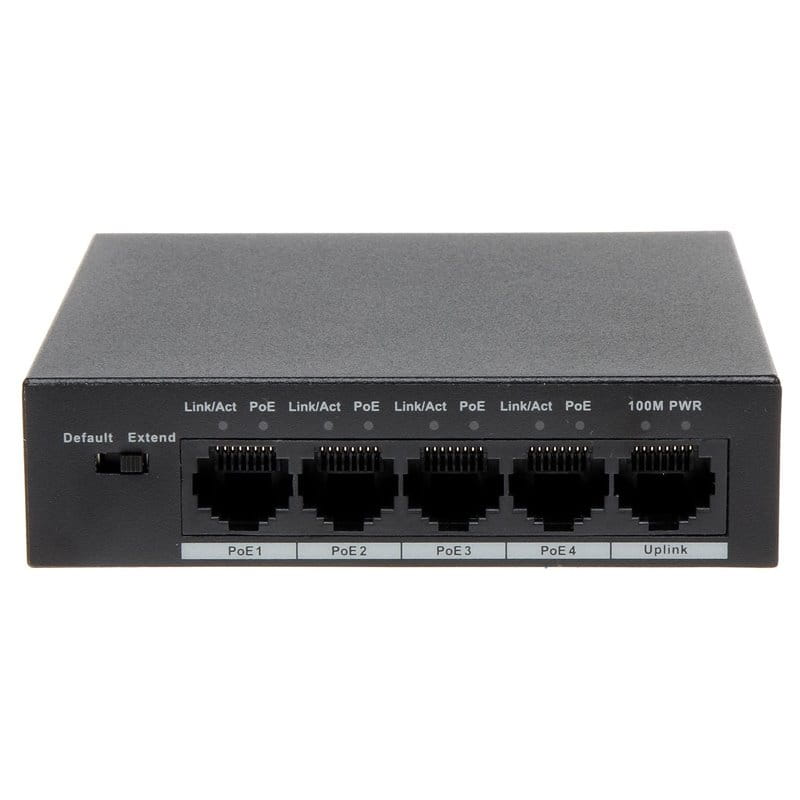

DH-PFS3005-4P-58
4-Port PoE Switch (Unmanaged)

Technical Specification
ModelDH-PFS3005-4P-58
Ethernet Port
1*10/100 Base-T
4*10/100 Base-T (PoE power supply)
PoE Power ConsumptionEach power ≤30W, Total≤58W
PoE ProtocolIEEE802.3af, IEEE802.3at
Switching Capacity1Gbps
Packet Forwarding Rate744Kpps
Packet Buffer Memory448Kb
MAC Table Size1K
Flow ControlEnable
Application Humidity10%~90%
PowerDefault DC51V/1.25A power adapter
Lightning Protection
Common Mode 2KV
Differential Mode 1KV
Working Temperature-10°C~50°C
Weight259g
Dimension(WxDxH)100mmx100mmx26mm
