· Radar and video integration.
· 60 GHz high frequency radar is not affected by severe weather.
Extremely low rate of false alarms and no missing alarms.
· 4MP 1/1.8" CMOS image sensor, low illuminance, high image definition.
· Easy to calibrate: One-click auto calibration and manul calibration.
· Supports drawing protection zone on live view which can be transformed
to radar protection zone automatically; applicable to various scenes.
· Target filtering of human and vehicles.
· Speed filtering of target with a speed of 0–40 km/h, achieving accurate
and efficient detection.
· Outputs max. 4MP (2560 x 1440) @30 fps.
· H.265 codec, high compression rate, ultra-low bit rate.
· Built-in IR illuminator, and the max. illumination distance is 35 m.
· Built-in warning white light and speaker links alarm to performs sound
and light alarm.

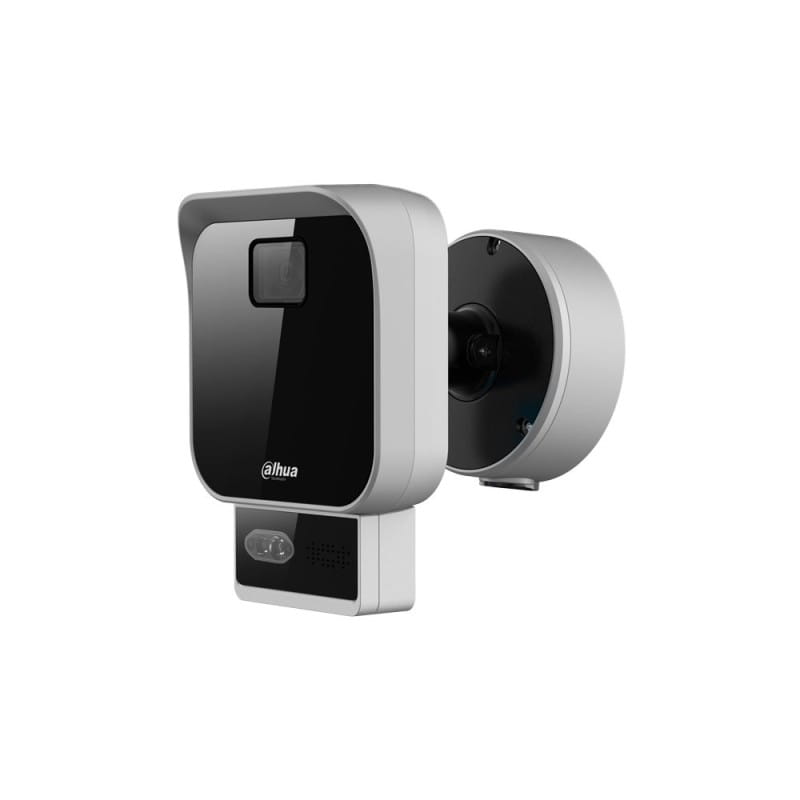

DH-PFR5QI-E60-PV
4MP IR 60 m Sound & Light Visual Radar

General | DH-PFR5QI-E60-PV

www.dahuasecurity.com

Equipped with a 60 GHz radar chip and a 4MP wide-angle lens, the visual
radar realizes all-weather and high-precision detection. The visual radar
supports speed filtering, automatic calibration, changing live view pro-
tection zone into radar protection zone. With the intelligent algorithm,
the visual radar achieves extremely low rate of false alarms and no miss-
ing alarms, which greatly improves the video quality in severe environ-
ment. The visual radar supports alarm linkage with sound and light, and
integrates radar detection and video playback.
System Overview
Functions
60 GHz Radar & 4MP Video Integration
The Self-developed Dahua 60 GHz radar algorithm combines high-quality
video display, improving perimeter/area intrusion protection and realizing
wide-range, 7/24 all-weather and high-precision detection.
One-click Calibration
Dahua intelligent algorithm realizes one-click auto/manual calibration
which is easy to operate and applicable to various scenes.
Multi-level Perimeter Protection
Support region setting with different alarm priority, external alarm
linkage, human and vehicle filtering, vehicle detection with low and
medium speed, and intrusion/tripwire rules.
Intelligent Algorithm of Radar
Intelligent algorithm is used to identify complex scenes and achieve high
accuracy in different scenarios. Support human and vehicle recognition
and speed filtering of moving targets.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart en-
coding technology realizes higher encoding efficiency than H.265 and
H.264, provides high-quality video, and reduces the cost of storage and
transmission.
Protection and Certifications
Meet IP66 and CE RED standards.

Applicable to various perimeter intrusion scenes, such as villa, ware-
house, prison and parking lot. It provides a safer and more comprehen-
sive solution for protection.
Scene

Lar ge D et ec tion A r ea
24/7 A ll- W ea ther
24H

H igh A c cur ac y

IP66

CE RED
T ar get F ilt er ing


www.dahuasecurity.com

Technical Specification
Radar
Max. Target Number64
Distance60 m (196.85 ft)
Angle
Horizontal: 120°
Pitch angle: 26°
Distance Accuracy±0.5 m (1.64 ft)
Angle Accuracy±1°
Max. Detection Speed43.2 km/h, continuous trace
Min. Detection Speed0.72 km/h, continuous trace
Modulation MethodFMCW
Scan Frequency20 Hz
Working Frequency60 GHz–61 GHz
Supported Target TypeHuman; vehicle
Transmission Power< 20 dBm (100mW)
Camera
Image Sensor1/1.8" CMOS
Pixel4MP
Max. Resolution2560 (H) x 1440 (V)
Electronic Shutter Speed 1/3 s–1/100000 s
Min. Illumination
0.0036 Lux @F1.6 (Color); 0.0036 Lux @F1.6 (B/W);
0 Lux (IR on)
S/N Ratio> 56 dB
Illumination Distance35 m (114.83 ft) (0°, visible human body shape)
Illuminator Number4
Lens
Lens TypeFixed-focal
Lens MountM16
Focal Length2.8 mm (equivalent focal distance of 1/2.7")
Max. ApertureF1.6
Field of ViewHorizontal: 104°; Vertical: 55°; Diagonal: 121°
Iris ControlFixed
Close Focus Distance0.2 m
Video
Video Compression H.265; H.264; H.264H; H.264B
Smart CodecH.264/H.265
Video Frame Rate
Main stream:
50 Hz: 25 fps (2560 x 1440); 25 fps (2048 x 1536);
25 fps (1920 x 1080); 25 fps (1280 x 960); 25 fps
(1280 x 720)
60 Hz: 30 fps (2560 x 1440); 30 fps (2048 x 1536);
30 fps (1920 x 1080); 30 fps (1280 x 960); 30 fps
(1280 x 720)

50 Hz: 25 fps (704 x 576); 25 fps (352 x 288)
60 Hz: 30 fps (704 x 480); 30 fps (352 x 240)
Third stream:
50 Hz: 25 fps (1920 x 1080); 25 fps (1280 x 960);
25 fps (1280 x 720)
60 Hz: 30 fps (1920 x 1080); 30 fps (1280 x 960);
30 fps (1280 x 720)
Video Bit RateH.264: 3 Kbps–8192 Kbps; H.265: 3 Kbps–8192 Kbps
Day/NightColor/B/W
BLCYes
HLCYes
WDR102 dB
White BalanceAuto/manual/natural/street lamp/outdoor
Gain ControlAuto/manual
Noise Reduction2D NR/3D NR
Default Bit Rate with Default
Resolution
6144 Kbps (2560 x 1440)
DefogYes
Image Stabilization Yes
LDCYes
Alarm
Alarm Event
Network disconnection; IP conflict; illegal access;
intrusion; tripwire
Alarm Input3
Alarm Output2, support alarm linkage
Alarm LinkageSnapshot/SD card recording/email
Network
Network Port1 (RJ-45; support 10 M/100 M network data)
Network Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP;
ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP;
DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour;
802.1x
InteroperabilityONVIF (Profile S); CGI; Imou
StorageNAS; FTP; Micro SD card (128 G)
Browser
IE 7 and later
Chrome 45 and earlier
Firefox 46 and earlier
User/Host20 (total bandwidth: 64 M)
SDK and APIYes
Management SoftwareDSS
Sound and Light Alarm
Number of Warning Light2
Warning Light ModeYes, flashing mode, solid on mode
Warning Light DelayYes, 5 s–30 s
Max. Distance of Warning
Speaker
10 m (32.81 ft) (outdoor open space, 60 dB)
General | DH-PFR5QI-E60-PV

www.dahuasecurity.com

Warning Speaker Mode1–3 times
Alarm Audio Upload & RecordYes, up to 10 audios
Alarm Audio Import & OutputYes
Function
Image SettingBrightness; Contrast; Sharpness; Saturation; Gamma
OSD OverlayTime; channel; location; custom
Record Mode
Manual record; scheduled record; alarm record;
Record priority: Manual > external > schedule
DefaultSupport one-click restoring
User ManagementUp to 20
Security
Username and password; MAC address; HTTPS; IEEE
802.1x ; network access control
Region ManagementPre-warning zone; alarm zone; shield zone
Target FilteringYes, human/vehicle
Speed Filtering
Yes, 0–40 km/h
(Objects whose speeds are not within the target
speed range will not trigger alarms)
Recognition Sensitivity
Yes, human, vehicle recognition sensitivity
configurable
Radar Structuring
Yes, target track displayed on live view, including
distance, angle, speed and type
Radar OSD Detection OverlayYes, 8 positions
Device AttitudeYes, display pitch angle and roll angle
Protection Zone Mapping
Yes, draw on live view to define actual radar
protection zone
Auto CalibrationYes, automatically calibrate radar and image
Manual CalibrationYes, manually calibrate radar and image
Sound and Light LinkageYes
Power
Operating Voltage12V DC (±30%); PoE (802.3at)
Power Supply12V DC/POE
Power Consumption
Basic power consumption: 10W; Max. power
consumption: 22W
PortTerminal block
Port
SD CardYes
Indicator Light
Yes. Network indicator (yellow); operation indicator
(red and green); power indicator (green)
Audio Input1 x 3.5 mm port
Audio Output1 x 3.5 mm port
RS-4851 (baud rate range: 1200 bps–115200 bps )
Environment
Operating Temperature–40°C to +70°C (–40°F to +158°F)
Operating Humidity≤ 95%
ProtectionIP66

Structure
CasingMetal + plastic
Product Dimensions
160.0 mm x 194.4 mm x 210.0 mm
(6.30" x 7.65" x 8.27") (L x W x H)
Packaging Dimensions
277.0 mm x 274.0 mm x 224.0 mm
(10.91" x 10.79" x 8.82") (L x W x H)
Packaging Method4 in one package
Net Weight2.51 kg (5.53 lb)
Gross Weight3.10 kg (6.83 lb)
InstallationPole mount; wall mount
BracketPFA154
Power AdapterOptional
Certifications
Certifications
CE: EN 50385; EN 55032; EN 55024; EN 55035; EN
50130-4; ETSI EN 301 489-1; ETSI EN 301 489-3; EN
62368-1

Ordering Information
TypeModelDescription
Visual RadarDH-PFR5QI-E60-PV
4MP IR 60 m Sound & Light Visual
Radar
AccessoryPFA154Pole mount bracket
Accessory

PFA154
Pole mount bracket

Wall MountPole Mount
General | DH-PFR5QI-E60-PV

www.dahuasecurity.com
