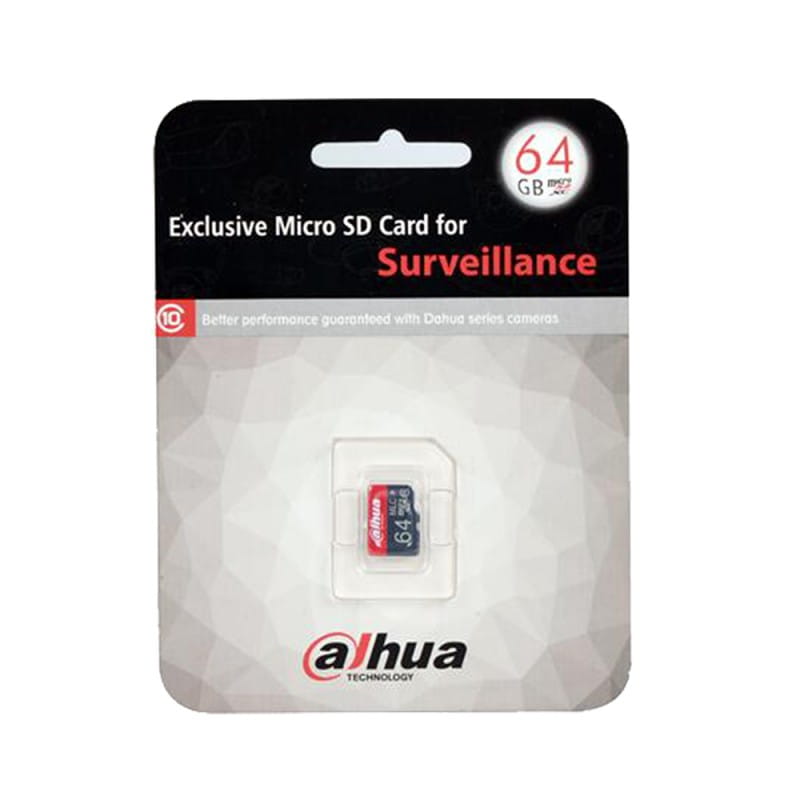

PFM111

DH-PFM110/111/112/113            Features  * Use TLC storage medium, cost-effective;  * High transmission speed, to be a higher class UHS-I, at least to be 10MB/s;  * High adaptability, water-proof, shock-proof, X-ray proof, high and low temperature  resistance, etc.  * Wide application, be applied on the scenarios which will be light storage in the consumer  products, relatively low video intensity or used in the relatively simple environment.    Specifications  Model DH-PFM110 DH-PFM111 DH-PFM112 DH-PFM113  Image    Product type Dedicated TF card, Micro SD card  Nominal capacity 16GB 32GB 64GB 128GB  Property/Speed Class 10, UHS-I(reading speed: 48MB/s, writing speed: 20MB/s)  Compatibility  Compatible with the devices which can support micro SDHC, micro  SDXC, micro SDHC UHS-I and micro SDXC UHS-I, especially with  DAHUA cameras!  Dimension(L*W*H) 15.0mmx11.0mmx1.0mm  Color Red& grey  Storage Temperature -25℃~85℃  Working Temperature -15℃~70℃  Humidity 0~95%(non-condensing)  Carried standard CE/FCC  Warranty 2 years        DH-PFM110/111/112/113      Dimensions (mm)         ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DH-PFM110/111/112/113





Features
* Use TLC storage medium, cost-effective;
* High transmission speed, to be a higher class UHS-I, at least to be 10MB/s;
* High adaptability, water-proof, shock-proof, X-ray proof, high and low temperature
resistance, etc.
* Wide application, be applied on the scenarios which will be light storage in the consumer
products, relatively low video intensity or used in the relatively simple environment.

Specifications
Model DH-PFM110 DH-PFM111 DH-PFM112 DH-PFM113

Product type Dedicated TF card, Micro SD card
Nominal capacity 16GB 32GB 64GB 128GB
Property/Speed Class 10, UHS-I(reading speed: 48MB/s, writing speed: 20MB/s)
Compatibility
Compatible with the devices which can support micro SDHC, micro
SDXC, micro SDHC UHS-I and micro SDXC UHS-I, especially with
DAHUA cameras!
Dimension(L*W*H) 15.0mmx11.0mmx1.0mm
Color Red& grey
Storage Temperature -25℃~85℃
Working Temperature -15℃~70℃
Humidity 0~95%(non-condensing)
Carried standard CE/FCC
Warranty 2 years



DH-PFM110/111/112/113


Dimensions (mm)




Dahua Technology Co., Ltd.
1199 BinAn Road, Binjiang District, Hangzhou, China
Tel: +86-571-87688883
Fax: +86-571-87688815
Email: overseas@dahuatech.com
www.dahuasecurity.com
*Design and specifications are subject to change without notice.
© 2016 Dahua Technology Co., Ltd.
