PFL25-K10M

Lens Series | DH-PFL25-K10M            www.dahuasecurity.com  DH-PFL25-K10M  10 MP 1’’ 25mm Fixed Lens                              Lens Series | DH-PFL25-K10M    www.dahuasecurity.com  Technical Specifications  Model DH-PFL25-K10M  Parameter  Image format 1”  Focal length 25mm  Lens pixel 10MP  Aperture F1.4  Mount C  Field Angle  (D*H*V)  1” 36.7°x32.5°x17.2°  1/1.1” 31.2°x26.9°x15.9°  Lens Control Manual  IR Correction No  M.O.D. 1m(3.28ft)  Dimension ɸ43.7x62.8mm(ɸ1.72”x2.47”)  Weight 0.188kg(0.41lb)  Operating temperature -30℃～+70℃(-22℉~158℉)  Humidity <90% RH    Order Information  Type Model Description  Lens  DH-PFL25-K10M 10 MP 25mm Lens  PFL25-K10M 10 MP 25mm Lens        Lens Series | DH-PFL25-K10M      Rev 001.001 © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.    www.dahuasecurity.com      Dimensions(mm/inch)      Package Information   10 MP 1’’ 25mm Fixed Lens DH-PFL25-K10M *1...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Lens Series | DH-PFL25-K10M





www.dahuasecurity.com
DH-PFL25-K10M

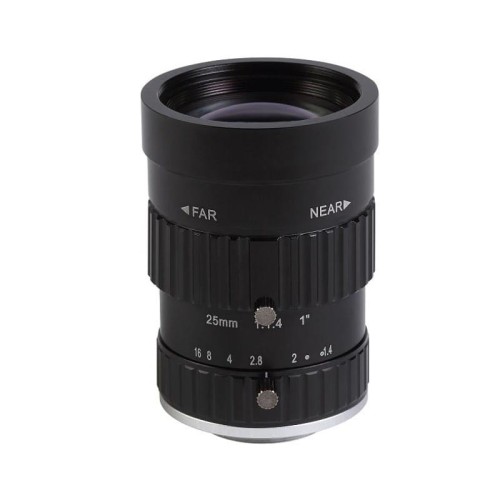

10 MP 1’’ 25mm Fixed Lens














Lens Series | DH-PFL25-K10M

www.dahuasecurity.com
Technical Specifications
Model DH-PFL25-K10M
Parameter
Image format 1”
Focal length 25mm
Lens pixel 10MP
Aperture F1.4
Mount C
Field Angle
(D*H*V)
1” 36.7°x32.5°x17.2°
1/1.1” 31.2°x26.9°x15.9°
Lens Control Manual
IR Correction No
M.O.D. 1m(3.28ft)
Dimension ɸ43.7x62.8mm(ɸ1.72”x2.47”)
Weight 0.188kg(0.41lb)
Operating temperature -30℃～+70℃(-22℉~158℉)
Humidity <90% RH

Order Information
Type Model Description
Lens
DH-PFL25-K10M 10 MP 25mm Lens
PFL25-K10M 10 MP 25mm Lens



Lens Series | DH-PFL25-K10M


Rev 001.001 © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.

www.dahuasecurity.com


Dimensions(mm/inch)


Package Information
 10 MP 1’’ 25mm Fixed Lens DH-PFL25-K10M *1
