PFH600N
Description
DH-PFH600N Housing Features * IP66, Housing * Water-proof coating film * Neat & Integrated design Specifications Model DH-PFH600N General Material ASA +PC Product Dimension 312mm(L) x 133mm(W) x 103mm(H) Inside Dimension 170mm(L) x 74mm(W) x 80(H) Window Dimension 63(L) x 72(W) Operating Temperature Set -30ºC ~60ºC Heater N/A Cooler N/A Ingress Protection IP66 Humidity ≤90% RH (no condensation) IR Distance N/A Wiper N/A Weight 0.7kg Applicable Model IPC-HF, HDC-HF, HAC-HF, CA-F, SDZ DH-PFH600N Dimensions (mm) Application Dahua Technology Co., Ltd. 1199 BinAn Road, Binjiang District, Hangzhou, China Tel: +86-571-87688883 Fax: +86-571-87688815 Email: overseas@dahuatech.com www.dahuasecurity.com *Design and specifications are subject to change without notice. © 2014 Dahua Technology Co., Ltd....
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:

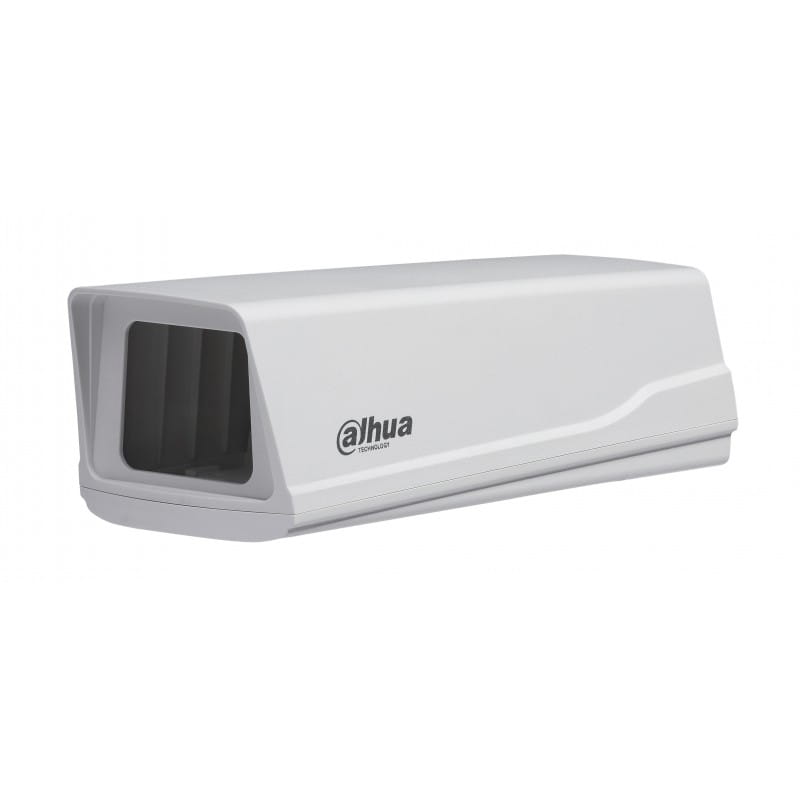

DH-PFH600N
Housing
Features
* IP66, Housing
* Water-proof coating film
* Neat & Integrated design
Specifications
Model DH-PFH600N
General
Material ASA +PC
Product Dimension 312mm(L) x 133mm(W) x 103mm(H)
Inside Dimension 170mm(L) x 74mm(W) x 80(H)
Window Dimension 63(L) x 72(W)
Operating
Temperature
Set -30ºC ~60ºC
Heater N/A
Cooler N/A
Ingress Protection IP66
Humidity ≤90% RH (no condensation)
IR Distance N/A
Wiper N/A
Weight 0.7kg
Applicable Model IPC-HF, HDC-HF, HAC-HF, CA-F, SDZ
DH-PFH600N
Dimensions (mm)
Application
Dahua Technology Co., Ltd.
1199 BinAn Road, Binjiang District, Hangzhou, China
Tel: +86-571-87688883
Fax: +86-571-87688815
Email: overseas@dahuatech.com
www.dahuasecurity.com
*Design and specifications are subject to change without notice.
© 2014 Dahua Technology Co., Ltd.
