PFB510W

Camera Mount Series | DH-PFB510W    www.dahuasecurity.com  DH-PFB510W  Radar Bracket    Features  · Aluminum alloy  · Radar dedicated  · Compatible with wall mounting and ceiling mounting  · Inner cable connection without exposure  · Junction box function  · Easy installation and adjustment  · Vertical angle adjustment with high accuracy    Camera Mount Series | DH-PFB510W    Technical Specification  Model  DH-PFB510W  Material  Aluminum alloy  Dimensions  134.0 x 134.4 x 195.8 mm (5.28" x 5.29"x 7.71")  Net Weight  1.1kg (2.43 lb)  Gross Weight  1.3kg (2.87 lb)  Load Bearing  4.0 kg (8.82 lb)  Operating Temperature  –40°C to 70°C (–40°F to 158°F)  Operating Humidity<90%  Installation  Wall-mounted or ceiling-mounted  Adjusting Range  Vertical: –20° to 90° with 1° accuracy  Horizontal: –48° to 48° with 12° accuracy  ColorWhite  Applicable ModelPFR4K-E series and PFR4K-D series      www.dahuasecurity.com    Ordering Information  TypePart NumberDescription  Radar Mount Bracket  DH-PFB510WRadar bracket, support wall mounting and ceiling mounting  PFB510WRadar bracket, support wall mounting and ceiling mounting    Dimensions (mm/in...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Camera Mount Series | DH-PFB510W

www.dahuasecurity.com

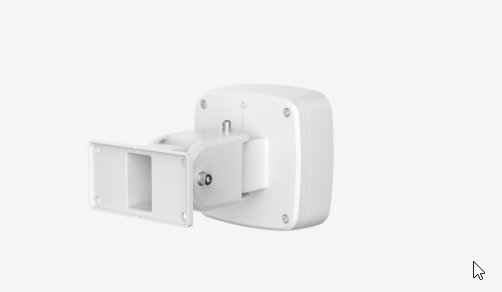

DH-PFB510W
Radar Bracket

Features
· Aluminum alloy
· Radar dedicated
· Compatible with wall mounting and ceiling mounting
· Inner cable connection without exposure
· Junction box function
· Easy installation and adjustment
· Vertical angle adjustment with high accuracy

Camera Mount Series | DH-PFB510W

Technical Specification
Model
DH-PFB510W
Material
Aluminum alloy
Dimensions
134.0 x 134.4 x 195.8 mm (5.28" x 5.29"x 7.71")
Net Weight
1.1kg (2.43 lb)
Gross Weight
1.3kg (2.87 lb)
Load Bearing
4.0 kg (8.82 lb)
Operating Temperature
–40°C to 70°C (–40°F to 158°F)
Operating Humidity<90%
Installation
Wall-mounted or ceiling-mounted
Adjusting Range
Vertical: –20° to 90° with 1° accuracy
Horizontal: –48° to 48° with 12° accuracy
ColorWhite
Applicable ModelPFR4K-E series and PFR4K-D series


www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
Radar Mount Bracket
DH-PFB510WRadar bracket, support wall mounting and ceiling mounting
PFB510WRadar bracket, support wall mounting and ceiling mounting

Dimensions (mm/inch)


Camera Mount Series | DH-PFB510W

Package Information
· Bracket x 1
· ST6 screw x 4
· Expansion bolt x 4
· Gasket x 4
· S3.0 wrench x 1
· S5.0 wrench x 1
· Positioning map x 1
· Waterproof connector group x 1



www.dahuasecurity.com

Rev 001.001 © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

Application
