PFB210W

Camera Mount Series | DH -PFB210W          www.dahuasecurity.com     DH-PFB2 10W   Water-proof Wall Mount Bracket                        Features  * Neat & Integrated design.  * Wall mount bracket, fast loading structure.  * Material: Aluminum.  * Come with a space at the bottom of the bracket, there are two out-holes (G3/4) designed at the  bottom, which is convenient for cable hiding and wiring.  * Safety rope hook attached, secure and reliable.          Camera Mount Series | DH -PFB210W    www.dahuasecurity.com  Technical Specifications  Model DH -PFB210W  General  Material Aluminum  Dimension (W x H x D) 229.7mm x168.7mmx113.2 mm (9.04 ”x6.64”x4.46”)  Weight 0.93kg(2.05lb)  Load Bearing 3kg(6.61lb)  Color White  Operating Temperature -40ºC ~60 ºC(- 40 ℉~140 ℉)  Humidity <90% RH    Order Information  Type Part Number Description  Camera mount  DH-P FB 210W  Wall mount bracket  _ Dahua brand  PFB2 10W  Wall mount bracket  _Neutral, no brand    Dimens...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Camera Mount Series | DH -PFB210W




www.dahuasecurity.com

DH-PFB2 10W

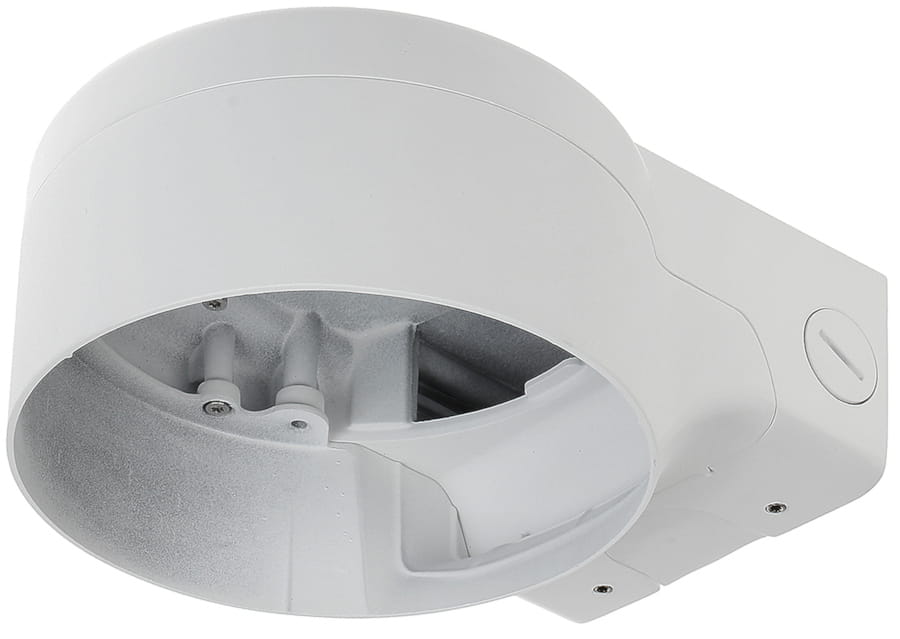

Water-proof Wall Mount Bracket











Features
* Neat & Integrated design.
* Wall mount bracket, fast loading structure.
* Material: Aluminum.
* Come with a space at the bottom of the bracket, there are two out-holes (G3/4) designed at the
bottom, which is convenient for cable hiding and wiring.
* Safety rope hook attached, secure and reliable.




Camera Mount Series | DH -PFB210W

www.dahuasecurity.com
Technical Specifications
Model DH -PFB210W
General
Material Aluminum
Dimension (W x H x D) 229.7mm x168.7mmx113.2 mm (9.04 ”x6.64”x4.46”)
Weight 0.93kg(2.05lb)
Load Bearing 3kg(6.61lb)
Color White
Operating Temperature -40ºC ~60 ºC(- 40 ℉~140 ℉)
Humidity <90% RH

Order Information
Type Part Number Description
Camera mount
DH-P FB 210W
Wall mount bracket
_ Dahua brand
PFB2 10W
Wall mount bracket
_Neutral, no brand

Dimensions (mm/inch)


Camera Mount Series | DH -PFB210W

Rev 001.001 © 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice.

www.dahuasecurity.com
Application


Package Information
* Wall-proof wall mount Bracket *1
* Application manual *1
* ST4x25 screw&anchor *4
* M4x18 *3
* Wrench *1
* Safety rope *1
