Camera Mount Series | DH-PFB203W
www.dahuasecurity.com
DH-PFB203W

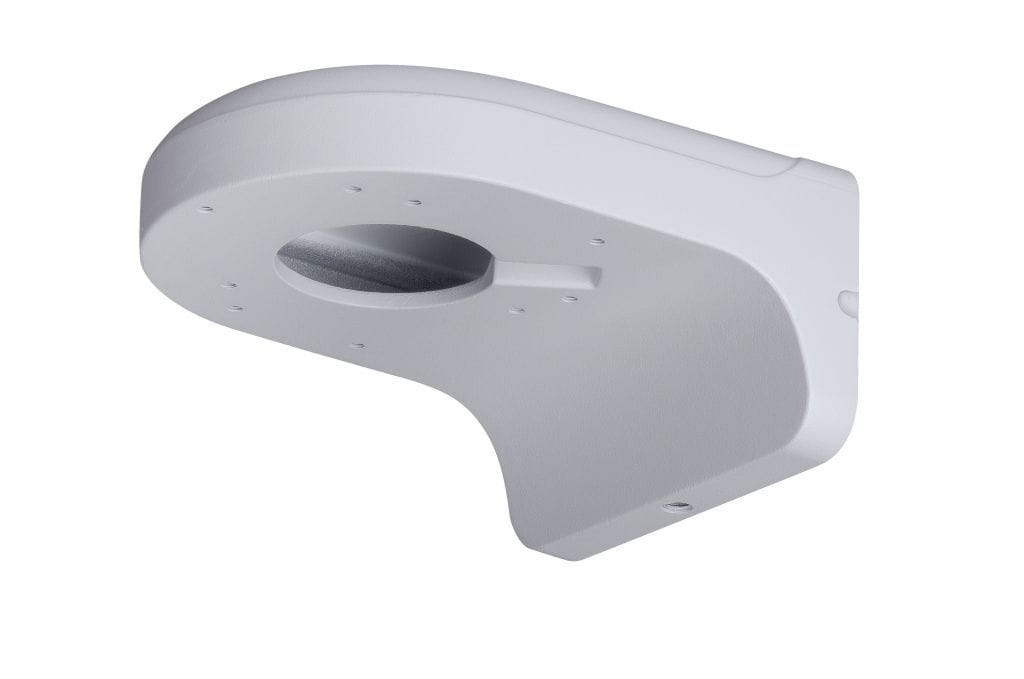

Water-proof Wall Mount Bracket
Features
* Aesthetic design
* Water-proof wall mount bracket
* Material: aluminum & SECC
Camera Mount Series | DH-PFB203W
www.dahuasecurity.com
Technical Specifications
Model DH-PFB203W
General
Material Aluminum & SECC
Dimension(WxHxD) 160mmx122mmx76mm (6.30”x4.80”x2.99”)
Weight 0.5kg(1.1lb)
Load Bearing 1kg(2.2lb)
Color White
Operating Temperature -40ºC~+60ºC(-40℉~+140℉)
Humidity <90% RH
Applicable Model Please see ”Accessory Selection”
Order Information
Type Part Number Description
Camera Mount
DH-PFB203W Wall mount bracket
PFB203W Wall mount bracket
Dimensions (mm/inch)
Camera Mount Series | DH-PFB203W
Rev 001.001 © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com
Application
Package Information
* Wall mount bracket *1
* M4 screw *3
* ST4 screw *4
* Plastic anchor *4
* Wrench *1
