PFA162
Description
Camera Mount Series | DH-PFA162 www.dahuasecurity.com DH-PFA162 Housing Bracket Features * Aesthetic design * Material: aluminum * Housing bracket * Support three-axis rotation for housing installation Camera Mount Series | DH-PFA162 www.dahuasecurity.com Technical Specifications Model DH-PFA162 General Material Aluminum Dimension (WxHxD) 115mmx115mmx98.8mm (4.53”x4.53”x3.89”) Weight 0.5kg(1.1lb) Load Bearing 6.0kg(13.23lb) Color White Operating Temperature -40℃~+60℃(-40℉~+140℉) Humidity 0~90% RH Applicable Model PFH610N/V/A series housing Order Information Type Part Number Description Camera Mount DH-PFA162 Housing bracket PFA162 Housing bracket Dimensions (mm/inch) Camera Mount Series | DH-PFA162 Rev 001.001 © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com Application Package Information * H...
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Camera Mount Series | DH-PFA162
www.dahuasecurity.com
DH-PFA162

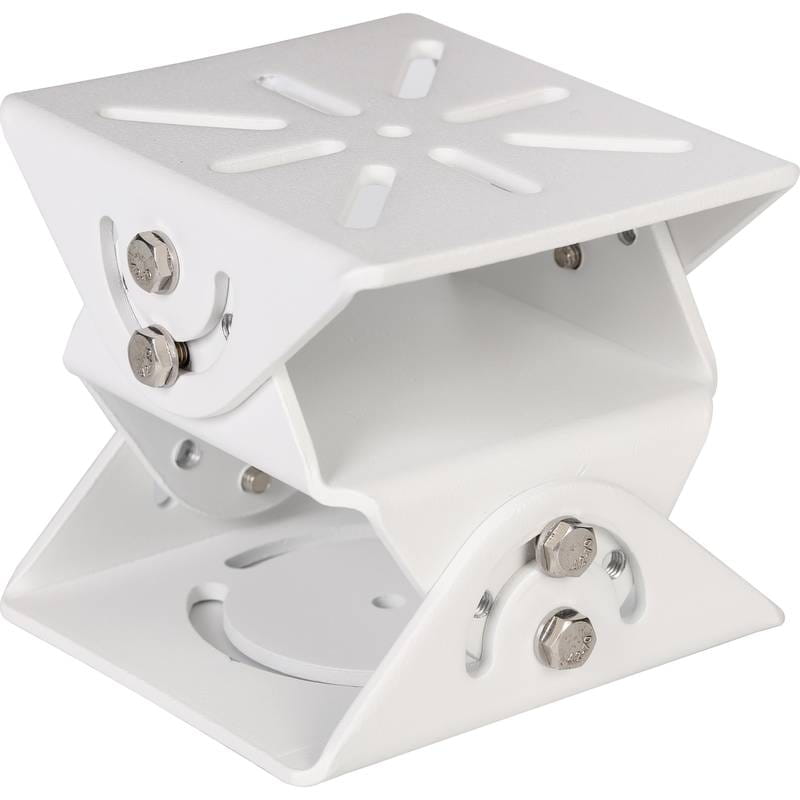

Housing Bracket
Features
* Aesthetic design
* Material: aluminum
* Housing bracket
* Support three-axis rotation for housing installation
Camera Mount Series | DH-PFA162
www.dahuasecurity.com
Technical Specifications
Model DH-PFA162
General
Material Aluminum
Dimension (WxHxD) 115mmx115mmx98.8mm (4.53”x4.53”x3.89”)
Weight 0.5kg(1.1lb)
Load Bearing 6.0kg(13.23lb)
Color White
Operating Temperature -40℃~+60℃(-40℉~+140℉)
Humidity 0~90% RH
Applicable Model PFH610N/V/A series housing
Order Information
Type Part Number Description
Camera Mount
DH-PFA162 Housing bracket
PFA162 Housing bracket
Dimensions (mm/inch)
Camera Mount Series | DH-PFA162
Rev 001.001 © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com
Application
Package Information
* Housing bracket *1
* M6x14 screw *2
* 1/4-20x12UNC screw *2
* Wrench *1
