AI series | DHI-NVR5216-16P-I

System Overview
Dahua new NVR5000-I network video recorder delivers excellent
performance and high recording quality that is ideally suitable for IP
video surveillance applications. This NVR adopts powerful processor,
providing the capability of 4K resolution processing for applications
where image details are highly required. Additionally, the NVR can
be served as edge storage, central storage or backup storage with an
intuitive shortcut operation menu for remote management and control.
With build-in deep learning module, NVR5000-I series products adopt
video image structuring technology based on deep learning algorithms,
achieving high-precision human face recognition and perimeter
protection. By applying deep learning artificial intelligence, NVR5000-I
allows users to focus on what matters most, improves event response
time and helps make video actionable.
The NVR is compatible with numerous third-party devices, which make it
the perfect solution for surveillance systems that work independently of
video management system (VMS).
Functions
Perimeter Protection
Automatically filtering out false alarms caused by animals, rustling
leaves, bright lights, etc. Enables system to act secondary recognition for
the targets. Improving alarm accuracy.
www.dahuasecurity.com

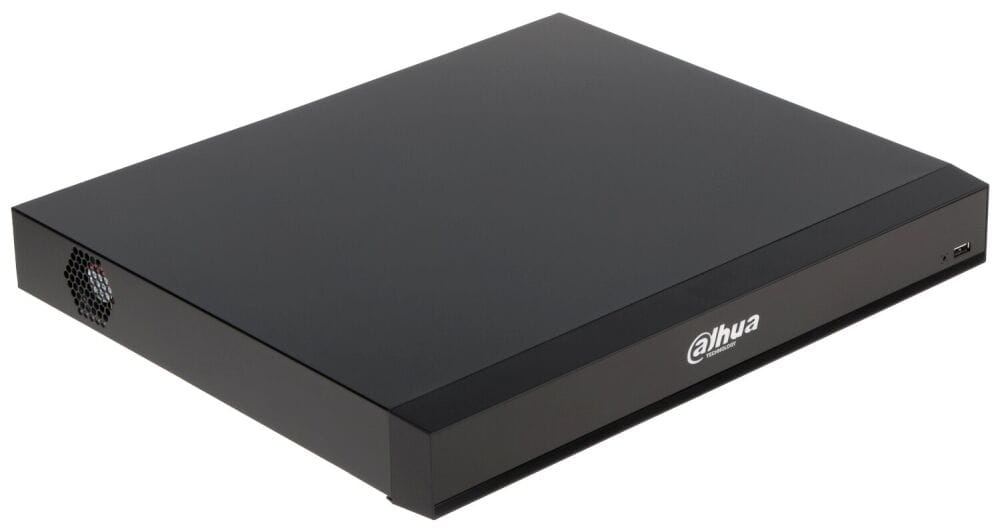

DHI-NVR5216-16P-I
16Channel 1U 16PoE AI Network Video Recorder

AI series products adopt the most advanced AI technologies, including
deep learning algorithms that primarily target people and vehicles,
which provides higher flexibility and accuracy for end-users. This enables
the Dahua AI series to offer various advanced applications such as Face
Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc.
The complete lineup of Dahua AI includes network (PTZ) cameras,
network video recorders, servers, and platform management products.
Beyond seeing the world, the power of AI allows devices to perceive the
environment and understand the world in a better way.
· 16 Channel IP video access
· Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
· Up to 16 Channel perimeter protection
· Up to 4 Channel video stream face recognition
· Up to 24 face pictures /sec processing
· Up to 20 face databases with 100,000 face images in total
· 1-8 PoE Ports support ePoE & EoC
Real Time Face Recognition
Video stream & picture stream real time face recognition. Facial
attributes analysis features including gender, age, expression, glasses,
moustache, mouth mask. Identify people and also capture, record faces
with metadata. Facial feature filtering while real time display, only show
faces with target features.
Face Database Management
Configurable multiple face databases. Powerful face database
management. Face database can be applied to video channels
independently. Name, gender, birthday, nationality, address, ID
information can be added to each face picture.
Common/Stranger Mode
NVR5000-I supports common and stranger mode. In stranger mode,
when NVR detects a strange face(not in device's face database), it can
trigger alarm, buzzer, snapshot, record, etc. Similarity threshold can be
set manually. This function is developed for important infrastructure sites
for which access control is critical.
AI Search
Support seach by metadata of human and vehicles. Support uploading
face pictures to NVR and compare them with recorded faces in NVR by
similarity. Enable operators to quickly and easily search through multi
channels and long duration, efficiently find out when and where a person
of interest appeard.
ANPR
Automatic Number Plate Recognition available for convenient entrance/
exit management. Support license plate recognition(working with Dahua
ITC camera), black/white list import/export, add/delete B/W list number,
search result from recorded video.
Point of Sale (POS)
Ideal for grocery and retail stores, the optional POS solution allows the
NVR to receive a POS transaction via corresponding video. This feature
allows merchants to analyze specific transactions via the Fuzzy search
algorithm.


www.dahuasecurity.com
AI series | DHI-NVR5216-16P-I

Technical Specification
System
Main ProcessorMulti-core embedded processor
Operating System
Embedded LINUX
Perimeter Protection
Performance16 channel, 10 IVS rules for each channel
Object classification
Human/Vehicle secondary recognition for tripwire and
intrusion
AI SearchSearch by target classification (Human, Vehicle)
Face Recognition
Performance
Max 24 face pictures /sec processing (modeling and
comparing)
4 channel video stream face recognition / 16 channel
picture stream face recognition ( with FD camera)
Stranger Mode
Detect strangers' faces(not in device's face database).
Similarity threshold can be set manually.
AI Search
Up to 8 target face images search at same time, similarity
threshold can be set for each target face image.
Database Management
Up to 20 face databases with 100,000 face images in total.
Name, gender, birthday, nationality, address, ID information
can be added to each face picture.
Database Application
Each database can be applied to video channels
independently.
Trigger Events
Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm
Out, PTZ Activation, etc.
Metadata
FaceGender, age, glasses, beard, mask.
Vehicle
Vehicle color, vehicle model, vehicle logo, plate color,
vehicle decorations, call, seatbelt.
Human BodyTops style,tops color,bottom style,bottom color, hat, bag.
Non-motor VehicleType, color, people number.
AI SearchSupport search target video by metadata.
Audio and Video
IP Camera Input16 Channel
Two-way Talk1 Channel Input, 1 Channel Output, RCA
Display
Interface1 HDMI, 1 VGA
Resolution
HDMI/VGA: 3840 x 2160 , 1920 x 1080 , 1280 x 1024, 1280
x 720 , 1024 x 768
Decoding Capability4-ch@8MP(30fps), 16-ch@1080P(30fps)
Multi-screen Display 1/4/8/9/16
Recording
Bandwidth320Mbps (160Mbps when AI function enabled)
CompressionSmart H.265+/H.265/Smart H.264+/H.264/MJPEG
Resolution
16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP,
720P, D1 etc.
Record Mode
Manual, Schedule (Continuous, MD(Motion Detection) ,
Alarm, IVS)
Record Interval
1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-
record: 10 ~ 300 sec

Video Detection and Alarm
Trigger Events
Alarm Out, Video Push, Email, Recording, PTZ, Tour,
Snapshot, Voice Prompt, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 x 18), Video Loss,
Tampering and Scene Change
Alarm input4 Channel
Relay Output2 Channel
Playback and Backup
Sync Playback1/4/9/16
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to
second)
Backup ModeUSB Device/Network
Third-party Support
Third-party Support
Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG,
Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet
and more
Network
Interface1 RJ-45 Ports (10/100/1000Mbps)
PoE
16 ports (IEEE802.3af/at)
1-8 ports support ePoE & EoC
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP,
SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm
Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.),
P2P
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 2.4, SDK, CGI
Storage
Internal HDD2 SATA III Ports, Up to 8 TB capacity for each HDD
eSATAN/A
Auxiliary Interface
USB2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 )
RS2321 Port, for PC Communication and Keyboard
RS4851 Port, for PTZ Control

AI series | DHI-NVR5216-16P-I
Rev 001.001© 2016 Dahua . All rights reserved. Design and specifications are subject to change without notice

Ordering Information
TypePart NumberDescription
16 Channel
AI NVR
DHI-NVR5216-16P-I
16 Channel 1U 16PoE AI Network Video
Recorder
www.dahuasecurity.com

Dimensions (mm)
Rear Panel

Electrical
Power SupplySingle, AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption
NVR: <16.5W (Without HDD)
PoE: Max 25.5W for single port
130W total rated power, 80% control for protection
FanSmart fan, automatically adjust running speed
Environmental
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions
1U, 375mm x 327.3mm x 53mm ;
(14.8" x 12.9" x 2.1")
Net Weight2.70kg (6.0 lb) (without HDD)
Gross Weight4.00kg (8.8 lb) (without HDD)
Certifications
CEEN55032, EN55024, EN50130-4, EN60950-1
FCCPart 15 Subpart B, ANSI C63.4-2014
ULUL 60950-1
