NVR4216-4KS2/L

www.dahuasecurity.com  DHI-NVR4216-4KS2/L  16 Channel 1U 4K&H.265 Lite Network Video Recorder    · New UI interface with more easier operation experience  · Smart H.265+/ Smart H.264+  · P2P remote surveillance, video play on mobile device  · 16–ch@720P(30FPS), self-adaptive decoding capability  · Supports mainstream cameras of ONVIF and RTSP protocol  · VGA/HDMI simultaneous video output, maximum resolution of HDMI   is 4K  · Remote configuration and management of IPCs, such as setting   parameters, acquiring information and upgrading IPCs of the same   model in batches  · DHCP(Dynamic Host Configuration Protocol), HTTP(Hypertext Transfer   Protocol), NTP(Network Time Protocol) and DDNS(Dynamic Domain   Name System)  Lite Series | DHI-NVR4216-4KS2/L     System Overview  Dahua NVR4000-4KS2 is introduced as the first Lite series NVR  that supports for 4K and H.265 encoding technology with excellent  performance at an affordable price. For applications where image  details are highly required, it delivers the capability of 4K resolution  processing. The NVR can be served as edge storage, central storage or  backup storage with an intuitive shortcut operation menu for remote  manageme...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.dahuasecurity.com
DHI-NVR4216-4KS2/L

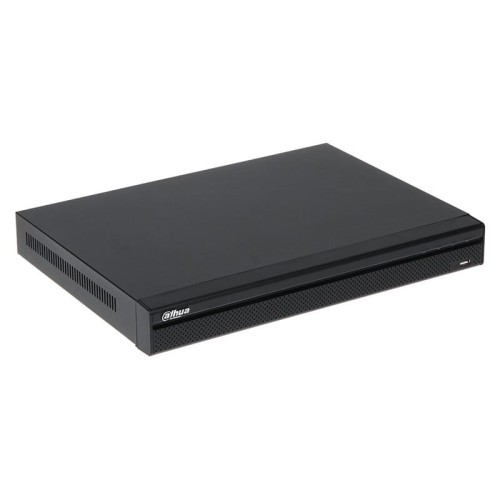

16 Channel 1U 4K&H.265 Lite Network Video Recorder

· New UI interface with more easier operation experience
· Smart H.265+/ Smart H.264+
· P2P remote surveillance, video play on mobile device
· 16–ch@720P(30FPS), self-adaptive decoding capability
· Supports mainstream cameras of ONVIF and RTSP protocol
· VGA/HDMI simultaneous video output, maximum resolution of HDMI
is 4K
· Remote configuration and management of IPCs, such as setting
parameters, acquiring information and upgrading IPCs of the same
model in batches
· DHCP(Dynamic Host Configuration Protocol), HTTP(Hypertext Transfer
Protocol), NTP(Network Time Protocol) and DDNS(Dynamic Domain
Name System)
Lite Series | DHI-NVR4216-4KS2/L

System Overview
Dahua NVR4000-4KS2 is introduced as the first Lite series NVR
that supports for 4K and H.265 encoding technology with excellent
performance at an affordable price. For applications where image
details are highly required, it delivers the capability of 4K resolution
processing. The NVR can be served as edge storage, central storage or
backup storage with an intuitive shortcut operation menu for remote
management and control.
Due to its cost-effective and easy-to-install design, this NVR is ideal for
a wide range of applications such as public safety, water conservancy,
transportation, city centers, education, and financial institutions.
The NVR is compatible with numerous third-party devices making it
the perfect solution for surveillance systems that work independently
of video management system (VMS). It features an open architecture
that supports for multi-user access and is compatible with ONVIF 2.4
protocol, enabling interoperability with IP cameras.
Functions
Perimeter Protection by Camera
Automatically filtering out false alarms caused by animals, rustling
leaves, bright lights, etc. Enables system to act secondary recognition for
the targets. Improving alarm accuracy.
SMD Plus by Camera
With intelligent algorithm, Dahua Smart Motion Detection technology
can categorize the targets that trigger motion detection and filter the
motion detection alarm triggered by non-concerned targets to realize
effective and accurate alarm.
Heat Map by Camera
Dahua heat map technology is used to display the crowd density and
people appearance probability. Export and display the crowd status by
different colors. Generally, the crowd status is the statistics of people
quantity in space and time dimensions.
AI Search
Support AI seach by metadata of different targets or uploading
face pictures to device and comparing them with recorded faces by
similarity. Enable operators to quickly and easily search through multi
channels and long duration, efficiently find out when and where a
person of interest appeard.
ANR (Automatic Network Replenishment Technology)
Video record in SD card in IP cameras when the network breaks down,
and after the network recovered, the video will be transferred to device
and then recorded in it.
Smart Codec
With advanced scene-adaptive rate control algorithm, Dahua smart
codec technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
DMSS
The DMSS app is available on the iOS App Store and Google Play. It
makes surveillance easy and simple, allowing you to remotely access
back-end devices, view live video, receive event push notifications, and
search for recorded videos from an iPhone, iPad, or Android phone at
anytime from virtually anywhere.

IVS
Heat MapPeople counting

4K

HDMIP2P
Decoding


www.dahuasecurity.com

Technical Specification
System
Main ProcessorIndustrial-grade embedded processor
OS
Embedded Linux
Operation InterfaceWeb/operating in local GUI
Video
Access Channel16 channels
Network Bandwidth
128 Mbps for access, 128 Mbps for storage and 64 Mbps
for forwarding
Resolution8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
Decoding Capability2ch@4K(30fps)/4ch@4MP(30fps)/8ch@1080P(30fps)
Video Output
1 VGA/1 HDMI simultaneous video output
HDMI: 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280
x 720
VGA: 1920 x 1080, 1280 x 1024, 1280 x 720
Multi-screen Display1/4/8/9/16
Third Party Camera AccessONVIF, RTSP
Compression
VideoSmart H.265+/H.265/Smart H.264+/H.264
AudioG.711A/G.711U/PCM/G726
Network
Network Protocol
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS,
P2P
Mobile Phone Access iDMSS (iOS)/gDMSS (Android)
Access StandardONVIF (profile S), CGI, SDK
BrowserChrome, IE9 or above, Firefox
Record Playback
Multi-channel PlaybackUp to 16 channels playback
Record Mode
Priority of record mode: Manual recording > alarm
recording > motion detection recording > timed
recording
StorageLocal HDD
BackupUSB device
Playback Function
1. Play, pause, stop, fast forward, fast backward, rewind,
play by frame
2. Full screen, backup (cut/file), partially enlarge, audio
on/off
Alarm
General AlarmMotion detection, privacy masking, video loss, IPC alarm
Anomaly Alarm
Front-end device going offline, storage error, full
storage, IP conflict, MAC conflict, login lock, network
security anomaly
Alarm LinkageVideo recording, snapshot, log, preset point, tour
External Port
HDD
2 SATA ports, up to 10 TB for a single HDD. The
maximum HDD capacity varies with environment
temperature.

USB1 front USB 2.0 port, 1 rear USB 2.0 port
HDMI1
VGA1
RCA Input1
RCA Output1
Alarm4 alarm input ports, 2 alarm output ports
Network1 RJ–45 port (10/100/1000 Mbps)
General Parameter
Power SupplyDC12V, 4A
Power ConsumptionTotal output of NVR is ≤ 10W (without HDD)
Net Weight1.51 kg (3.33 lb) (without HDD)
Gross weight2.76 kg (6.08 lb) (without HDD)
Dimensions
375 mm x 282.4 mm x 53 mm (W x L x H)
14.76 inch x 11.12 inch x 2.09 inch (W x L x H)
Packaging Dimensions
141mm x 433mm x 366mm (W x L x H)
5.55 inch x 17.05 inch x 14.41 inch (W x L x H)
Operating Temperature-10°C to +55°C (+14°F to +131°F)
Storage Temperature0°C to +40°C (+32°F to +104°F)
Operating Humidity10%–90%
Storage Humidity30%–85%
Operating Altitude3000 m (9843 ft)
InstallationDesktop mounted
CertificationCE/FCC
Rev 001.001
Lite Series | DHI-NVR4216-4KS2/L

www.dahuasecurity.com
Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
Lite Series | DHI-NVR4216-4KS2/L

Dimensions (mm[inch])

Panels

Ordering Information
TypeModel Description
16 Channel NVR
DHI-NVR4216-
4KS2/L
16 Channel 1U Network Video
Recorder

<>

<>

<>

<>

1
5

9

1
Power Switch
2
DC 12V Power Input
3
Network Port
4
VGA Port
5
Mic Out
6
Mic In
7
HDMI Port
8
USB Port
9
Alarm Input/Output

2
3
4
6
8
7
