NVR4208-8P-I

Availability: 0

Price: €823.16 823.16

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: NVR4208-8P-I

ask about product or pricing

Description

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

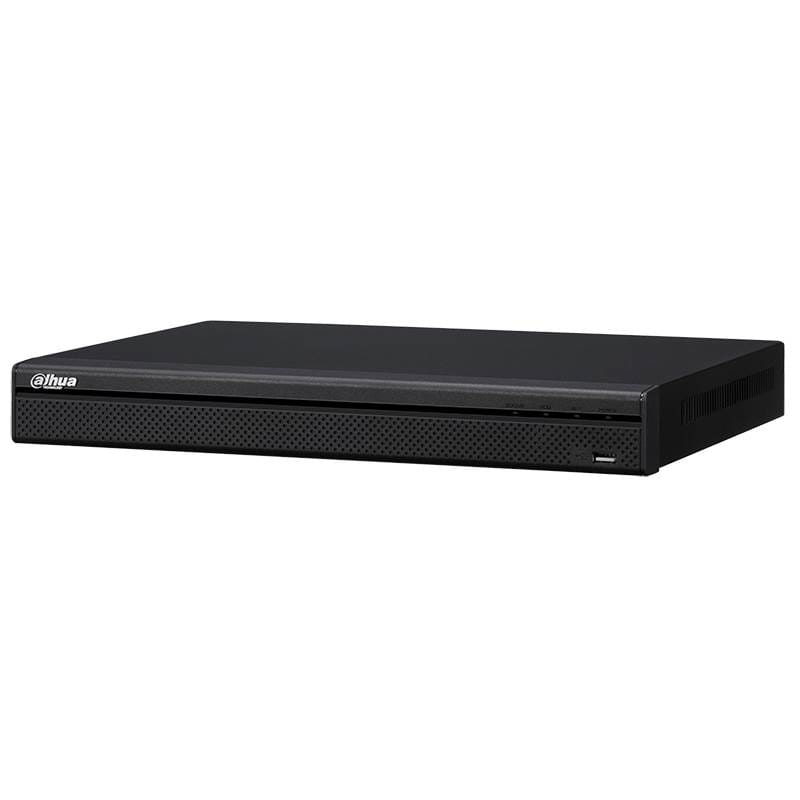

AI series | DHI-NVR4208-8P-I

System Overview
Dahua new NVR4000-I network video recorder delivers excellent
performance and high recording quality that is ideally suitable for IP
video surveillance applications. This NVR adopts powerful processor,
providing the capability of 4K resolution processing for applications
where image details are highly required. Besides, the NVR supports
input, recording and transmission functions. Additionally, the NVR can
be served as edge storage, central storage or backup storage with an
intuitive shortcut operation menu for remote management and control.
With build-in deep learning module, NVR4000-I series products adopt
video image structuring technology based on deep learning algorithms,
achieving high-precision human face recognition and perimeter
protection. By applying deep learning artificial intelligence, NVR4000-I
allows users to focus on what matters most, improves event response
time and helps make video actionable.
The NVR is compatible with numerous third-party devices, which make it
the perfect solution for surveillance systems that work independently of
video management system (VMS).
Functions
Perimeter Protection
Automatically filtering out false alarms caused by animals, rustling
leaves, bright lights, etc. Enables system to act secondary recognition for
the targets. Improving alarm accuracy.
Real Time Face Recognition
Video stream & picture stream real time face recognition. Facial
attributes analysis features including gender, age, expression, glasses,
moustache, mouth mask. Identify people and also capture, record faces
with metadata. Facial feature filtering while real time display, only show
faces with target features.
Face Database Management
Configurable multiple face databases. Powerful face database
management. Face database can be applied to video channels
independently. Name, gender, birthday, address, certificate type,
certificate No., countries&regions and state can be added to each face
picture.
Common/Stranger Mode
NVR4000-I supports common and stranger mode. In stranger mode,
when NVR detects a strange face(not in device's face database), it can
trigger alarm, buzzer, snapshot, record, etc. Similarity threshold can be
set manually. This function is developed for important infrastructure sites
for which access control is critical.
AI Search
Support seach by metadata of human and vehicles. Support uploading
face pictures to NVR and compare them with recorded faces in NVR by
similarity. Enable operators to quickly and easily search through multi
channels and long duration, efficiently find out when and where a person
of interest appeard.
ANPR
Automatic Number Plate Recognition available for convenient entrance/
exit management. Support license plate recognition(working with Dahua
ITC camera), black/white list import/export, add/delete B/W list number,
search result from recorded video.
www.dahuasecurity.com

· 8 Channel IP video access
· Smart H.265+/H.265/Smart H.264+/H.264 /MJPEG
· Up to 4 Channel perimeter protection
· Up to 2 Channel video stream face recognition/8 channel
picture stream face recognition ( with FD camera)
· Up to 12 face pictures /sec processing
· Up to 10 face databases with 20,000 face images in total
· 1-8 PoE Ports support ePoE & EoC
DHI-NVR4208-8P-I
8Channel 1U 8PoE AI Network Video Recorder

AI series products adopt the most advanced AI technologies, including
deep learning algorithms that primarily target people and vehicles,
which provides higher flexibility and accuracy for end-users. This enables
the Dahua AI series to offer various advanced applications such as Face
Recognition, ANPR, People Counting, traffic data statistics, etc.
The complete lineup of Dahua AI includes network (PTZ) cameras,
network video recorders, servers, and platform management products.
Beyond seeing the world, the power of AI allows devices to perceive the
environment and understand the world in a better way.

www.dahuasecurity.com
AI Series | DHI-NVR4208-8P-I

Technical Speciﬁcation
System
Main ProcessorMulti-core embedded processor
Operating System
Embedded LINUX
Perimeter Protection
Performance4 channel, 10 IVS rules for each channel
Object classification
Human/Vehicle secondary recognition for tripwire and
intrusion
AI SearchSearch by target classification (Human, Vehicle) by targe
Face Recognition
Performance
Max 12 face pictures /sec processing
2 channel video stream face recognition / 8 channel picture
stream face recognition ( with FD camera)
Stranger Mode
Detect strangers' faces(not in device's face database).
Similarity threshold can be set manually.
AI Search
Up to 8 target face images search at same time, similarity
threshold can be set for each target face image.
Database Management
Up to 10 face databases with 20,000 face images in total.
Name, gender, birthday, address, certificate type, certificate
No., countries&regions and state can be added to each face
picture.
Database Application
Each database can be applied to video channels
independently.
Trigger Events
Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm
Out, PTZ Activation, etc.
Audio and Video
IP Camera Input8 Channel
Two-way Talk1 Channel Input, 1 Channel Output, RCA
Display
Interface1 HDMI, 1 VGA
Resolution
HDMI/VGA: 3840 x 2160, 1920 x 1080 , 1280 x 1024, 1280 x
720 , 1024 x 768
Decoding Capability2-ch@8MP(30fps), 8-ch@1080P(30fps)
Multi-screen Display1/4/8/9
Recording
Bandwidth
200Mbps (80Mbps when AI function enabled, based on
Dahua private protocol)
CompressionSmart H.265+/H.265/Smart H.264+/H.264/MJPEG
Resolution
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1
etc.
Record Mode
Manual, Schedule (Continuous, MD(Motion Detection) ,
Alarm, IVS)
Record Interval
1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-
record: 10 ~ 300 sec

Video Detection and Alarm
Trigger Events
Alarm Out, Video Push, Email, Recording, PTZ, Tour,
Snapshot, Voice Prompt, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 x 18), Video Loss,
Tampering and Scene Change
Alarm Input4 Channel
Alarm Output2 Channel
Playback and Backup
Sync Playback1/4/9
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to
second)
Backup ModeUSB Device/Network
Third-party Support
Third-party Support
Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG,
Panasonic, Pelco, Xunmei, Samsung, Sanyo, Sony, Watchnet
and more
Network
Interface1 RJ-45 Port (10/100/1000Mbps)
PoE
8 ports (IEEE802.3af/at)
1-8 ports support ePoE & EoC
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP,
SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm
Center, IP Search (Support Dahua IP camera, DVR, NVS,
etc.), P2P
Max. User Access128 users
Mobile AppiPhone, iPad, Android
InteroperabilityONVIF (Profile S), SDK, CGI
Storage
Internal HDD2 SATA III Ports, Up to 8 TB capacity for each HDD
eSATANA
Auxiliary Interface
USB2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 )
RS232NA
RS485NA

AI series | DHI-NVR4208-8P-I
Rev 001.001© 2016 Dahua . All rights reserved. Design and specifications are subject to change without notice

Ordering Information
TypePart NumberDescription
8 Channel
AI NVR
DHI-NVR4208-8P-I
8 Channel 1U 8PoE AI Network Video
Recorder
www.dahuasecurity.com

Dimensions (mm)
Rear Panel

Electrical
Power SupplySingle, AC100-240V, 3.5A
Power Consumption
NVR: <6.0W (Without HDD)
PoE: Max 25.5W for single port
130W total rated power
Environmental
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions
1U, 375mm x 321mm x 53.8mm ;
(14.8" x 12.6" x 2.1")
Net Weight2.57kg (5.7lb) (without HDD)
Gross Weight3.72kg (8.2lb) (without HDD)
Certifications
CEEN55035, EN55032, EN55024, EN50130-4, EN60950-1
FCCPart 15 Subpart B, ANSI C63.4-2014
