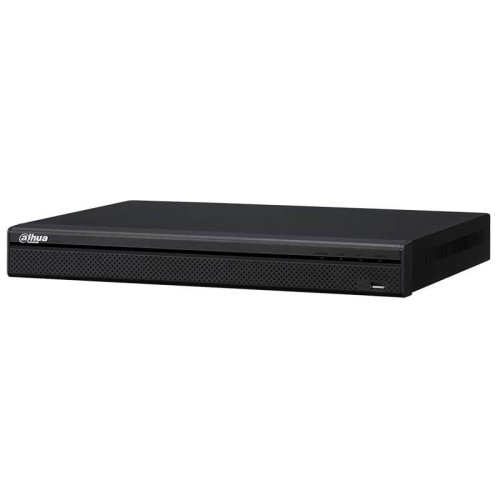

NVR4208-8P-4KS2
Description
System Overview Functions K R TR NVR K HD I V S O W R IP R NVR R R TR NVR R R R IVS T R R R P C F D R S A WR R S A R IP R NVR R R PE R I R R R NVR R R ANR A N RR TR V SD IP R R R R NVR R E Y R R E WR R · H H · M M I BR · U MP R P P · HDMI VGA · S IPC UPP PE · S ANR R R R R R CR U PE K H L N V R 8Mp IntrusionPeople Counting Heat Map COUNTING Tripwire H.265 Lite series | NVR4208-8P-4KS2 NVR4208-8P-4KS2 DR NVR KS R L NVR RR K H A R R TR L NVR MP F R R K A R NVR R D R NVR R TR NVR R R R R R VMS I R R ONVIF R R IP www.csmerchants.com.au O I Type Part NumberD NVR4208-8P-4KS2-S 8Channel NVR T S...
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
System Overview
Functions
K R
TR NVR K HD
I V S O
W R IP R NVR R
R
TR NVR R
R R
IVS T R
R R P
C F D
R
S A
WR R S A R IP
R NVR R R PE R
I R R R NVR R R
ANR A N RR TR
V SD IP R R
R R NVR
R
E
Y R R E WR R
· H H
· M M I BR
· U MP R P P
· HDMI VGA
· S IPC UPP PE
· S ANR R R R
R R
CR U PE K H L N V R
8Mp
IntrusionPeople Counting
Heat Map
COUNTING
Tripwire
H.265
Lite series | NVR4208-8P-4KS2
NVR4208-8P-4KS2
DR NVR KS R L NVR RR K
H A R R TR L
NVR MP F R
R
K A R NVR R
D R NVR
R
TR NVR R R
R R R
VMS I R
R ONVIF R
R IP
www.csmerchants.com.au
O I
Type Part NumberD
NVR4208-8P-4KS2-S
8Channel NVR
T S
S
Main ProcessorQuad-core embedded processor
Operating System
Embedded LINUX
D
Interface1 HDMI, 1 VGA
Resolution
3840x2160, 1920x1080, 1280x1024, 1280x720,
1024x768
Multi-screen Display1/4/8/9
OSD
Camera title, Time, Video loss, Camera lock,
Motion detection, Recording
V D A
Trigger Events
Recording, PTZ, Tour, Alarm out, Video Push, Email,
FTP, Snapshot, Buzzer & Screen tips
Video Detection
Motion Detection, MD Zones: 396(22x18), Video
Loss & Tampering
Alarm input
4 Channel, Low Level Effective,
Green Terminal Interface
Relay Output
2 Channel, NO/NC Programmable,
Green Terminal Interface
P B
Playback1/4/8
Search Mode
Time/Date, Alarm, MD & Exact search
(accurate to second), Smart search
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play,
Next File, Previous File, Next Camera,
Previous Camera, Full Screen, Repeat, Shuffle,
Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
S
Internal HDD2 SATA III Port, Up to 6 TB capacity for each HDD
HDD ModeSingle
eSATAN/A
A I
USB2 USB Ports (1 USB2.0, 1 USB3.0)
RS232N/A
RS485N/A
TR S
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom,
Canon, CP Plus, Dynacolor, Honeywell, Panasonic,
Pelco, Samsung, Sanyo, Sony, Videotec, and more
Audio and Video
IP Camera Input8 Channel
Two-way Talk1 Channel Input, 1 Channel Output, RCA
R
CompressionH.265/H.264
Resolution
8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P
etc.
Record Rate200Mbps
Bit Rate16Kbps ~ 20Mbps Per Channel
Record Mode
Manual, Schedule (Regular, Continuous), MD
(Video detection: Motion Detection, Tampering,
Video Loss), Stop
Record Interval
1 ~ 120 min (default: 60 min), Pre-record:
1 ~ 30 sec, Post-record: 10 ~ 300 sec
N
Interface1 RJ-45 Port (10/100/1000Mbps)
Ethernet Port1 Independent 1000Mbps Ethernet Port
PoE8 ports (IEEE802.3at/af)
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP,
SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,
IP Search (Support Dahua IP camera, DVR, NVS,
etc.), Easy4ip
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 2.4, CGI Conformant
E
Power SupplyAC100V ~ 240V, 50 ~ 60 Hz
Power Consumption
NVR: <9.6W (Without HDD)
PoE: Max 25.5w for single port, 80w in total
E
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
C
Dimensions
1U, 375mmx327.5mmx53mm
(14.8" x 12.9" x2.1")
Net Weight2.6kg (5.7lb) (without HDD)
Gross Weight4kg(8.8lb)(without HDD)
C
CEEN55032, EN55024, EN50130-4, EN60950-1
FCCPart 15 Subpart B, ANSI C63.4-2014
ULUL60950-1+CAN/CSA C22.2 No.60950-1
Lite Series | NVR4208-8P-4KS2
*Design and specifications are subject to change without notice.
© 2016 Dahua Technology Co., Ltd.
