Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

EZ-IP | NVR1B08HS-8P/E

System Overview
EZ-IP is perfect for small to medium size applications like home/
residential security, small retail shops, and other typical SMB
applications. It offers a perfect alternative to migrate from analog to an
IP system with its easy to use nature and cost effectiveness.
EZ-IP is fully in line with Dahua’s quality. Stable and reliable components
are utilized and Various tests such as anti-vibration, water resistance, and
aging tests are performed to ensure Dahua quality standards.

Functions
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that
uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
flexible multi-frame reference structure and intelligent noise reduction to
deliver high-quality video without straining the network. Smart H.265+
technology reduces bit rate and storage requirements by up to 70% when
compared to standard H.265 video compression.
Automatic Network Replenishment (ANR) Technology
Network Video Recorders with the ANR function automatically store video
data on an IP camera SD card when the network is disconnected. After
recovery of the network, the NVR automatically retrieves the video data
stored on the camera.
DMSS
The DMSS app is available on the iOS App Store and Google Play. It
makes surveillance easy and simple, allowing you to remotely access NVR
devices,view live video, receive event push notifications, and search for
recorded videos from an iPhone, iPad, or Android phone at anytime from
virtually anywhere.

· H.265+/H.264+ codec decoding
· Max 40Mbps/20Mbps incoming/outgoing bandwidth
· Max 8 channel IP camera inputs
· Up to 6MP resolution preview&playback
· Up to 1ch@6MP/4ch@1080P 25fps decoding
· HDMI/VGA simultaneous video output
· Support IPC UPnP, 8PoE ports

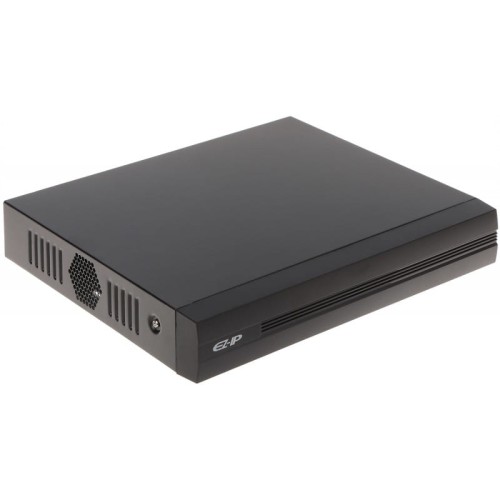

NVR1B08HS-8P/E
8 Channel Compact 1U 8PoE H.265 Network Video Recorder

Series


6Mp

Max 4TB
H.265
+

EZ-IP | NVR1B08HS-8P/E

Technical Specification
System
Main Processor Dual-core embedded processor
Operating System
Embedded LINUX
Audio and Video
IP Camera Input8 Channel
Two-way TalkN/A
Display
Interface1 HDMI, 1 VGA
Resolution1920x1080, 1280x1024, 1280x720
Decoding Capacity1ch@6MP 30fps, 4ch@1080P 25fps
Multi-screen Display1/4
OSD
Camera title, Time, Camera lock, Motion detection,
Recording
Recording
CompressionH.265+/H.264+
Resolution6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc.
Record Rate40Mbps
Bit Rate16Kbps ~ 20Mbps Per Channel
Record ModeManual, Schedule(Regular(Continuous), MD, Stop
Record Interval
1~120 min (default: 60 min), Pre-record: 1~30 sec,
Post-record: 10~300 sec
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Snapshot, and
Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 x 18),
and Tampering
Alarm inputN/A
Relay OutputN/A
Playback and Backup
Sync Playback1/4/9
Search Mode
Time /Date, MD and Exact Search
(accurate to second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next
File, Previous File, Next Camera, Previous Camera,
Full Screen, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network


Third-party Support
Third-party Support
Arecont Vision, AXIS, Bosch, Brickcom, Canon,
CP Plus, Dynacolor, Honeywell, Panasonic, Pelco,
Samsung, Sanyo, Sony, Videotec, and more
Network
Interface1 RJ-45 port (10/100Mbps)
PoE8 ports(IEEE802.3at/af)
Network Function
HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP,
DHCP, DNS, IP Filter, IP Search(Support Dahua IP
camera, DVR, NVS and etc.), P2P
Optical Fiber InterfaceN/A
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF ,SDK, CGI Conformant
Storage
Internal HDD1 SATA III Port, up to 4TB capacity for each HDD
HDD ModeSingle
eSATAN/A
Auxiliary Interface
USB2 ports (2 Rear USB2.0)
RS232N/A
RS485N/A
Electrical
Power SupplySingle, DC48V/2A
Power Consumption
NVR: <4.29W (without HDD)
PoE: Max 25.5w for single port, 72w in total
Environmental
Operating Conditions-10°C ~ +45°C (+14°F ~ +113°F), 86 ~ 106kpa
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions(WxDxH)
Cooper 1U, 260mmx227mmx47.6mm
(10.24" x 8.94" x 1.87")
Net Weight2 kg (4.41 lb) (without HDD)
Gross Weight2.5 kg(5.51 lb)(without HDD)
Certifications
CEEN55032, EN55024, EN50130-4, EN60950-1
FCCPart 15 Subpart B, ANSI C63.4-2014

EZ-IP | NVR1B08HS-8P/E
Rev 001.001© 2016 Dahua . All rights reserved. Design and specifications are subject to change without notice

Ordering Information
TypePart NumberDescription
8 Channel NVR NVR1B04HS-8P/E
8 Channel Compact 1U 8PoE
H.265 Network Video Recorder
Accessories N/AN/A
Dimensions (mm)

Rear Panel

260.00
47.60
226.95
220.70
