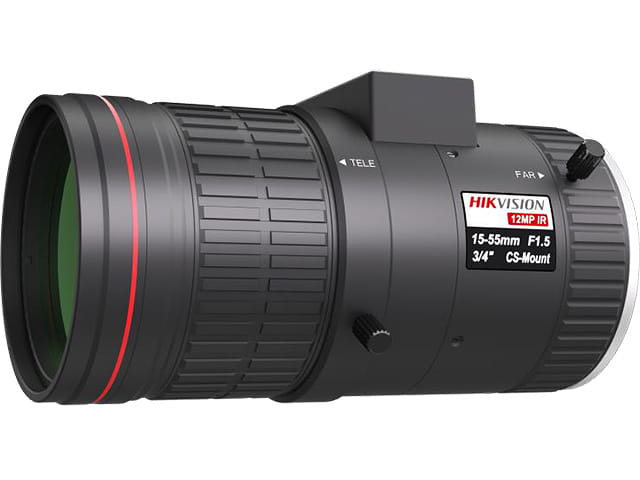

MV1555D-12MPIR
Description
Specification Vari-focal DC Auto Iris 12MP IR MountCS-Mount Flange Back Length12.5mm M.O.D0.3m IrisDimensionΦ57*112mm FocusWeight481.5g Zoom Operating Temperature -20~60℃ D47.3°～12.6°42.6°～11.8° H36.7°～10.3°33.4°～9.5° V27.1°～7.7°24.7°～7.1° CCTV LENS SPEC Model NO.MV1555D-12MPIR Focallength15-55mm Control DC Auto Iris Manual Manual F numberF1.5-C Max. Image formatΦ12.3mm（3/4"） Lens Picture Field of View 3/4"2/3" Dimension...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Specification
Vari-focal DC Auto Iris
12MP IR
MountCS-Mount
Flange Back Length12.5mm
M.O.D0.3m
IrisDimensionΦ57*112mm
FocusWeight481.5g
Zoom
Operating
Temperature
-20~60℃
D47.3°～12.6°42.6°～11.8°
H36.7°～10.3°33.4°～9.5°
V27.1°～7.7°24.7°～7.1°
CCTV LENS SPEC
Model NO.MV1555D-12MPIR
Focallength15-55mm
Control
DC Auto Iris
Manual
Manual
F numberF1.5-C
Max. Image formatΦ12.3mm（3/4"）
Lens Picture
Field of
View
3/4"2/3"
Dimension
