Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Essential Security Series | LM24-L200

www.dahuasecurity.com
Features：
· Industrial level LCD panel, suitable for continuous 24/7
operation
· High fidelity digital processing for a brilliant and vivid video
· Built in speakers
· Support CVBS signal input and output
· Included desk stand is easily removable for standard VESA
mounting

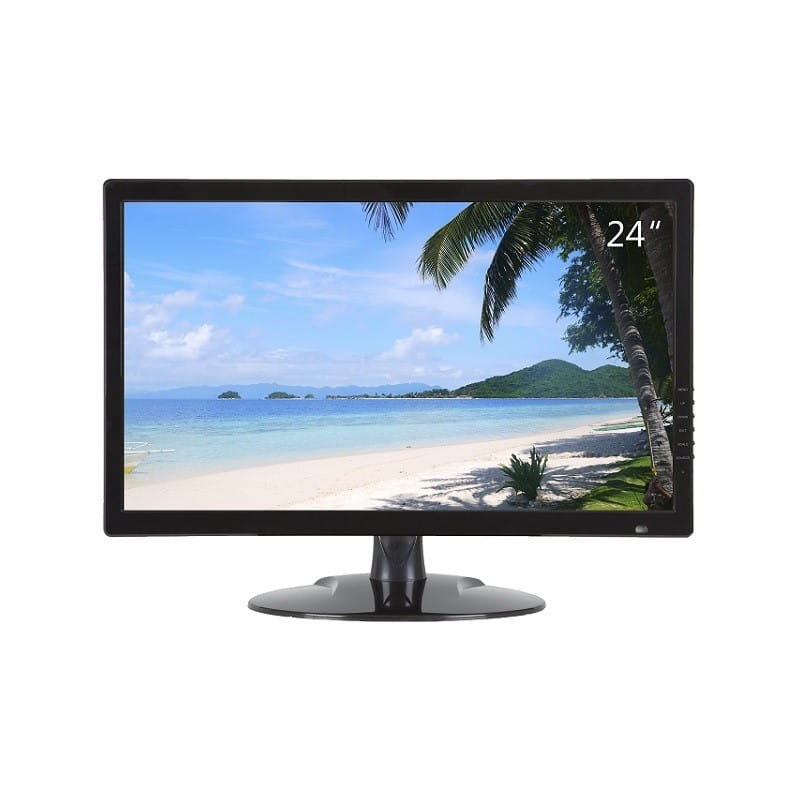

LM24-L200
23.8'' FHD LCD Monitor

Technical Specification
Model
ModelLM24-L200
Display
Screen Size23.8"
Aspect Ratio16:9
Resolution1920x1080 (FHD)
BacklightLED
Brightness/Luminance250cd/㎡
Contrast1000:1
Display Color16.7M(8bit)
Viewing Angle(H/V)H178°(H)/V178°(V)
Response Time14ms
Refresh Rate60Hz
Interfaces
Input BNCx1, VGAx1, HDMIx1, Audiox1
Output
BNCx1
Speaker2Wx2
General
Power SupplyAC100~240V (+/-10%), 50/60 Hz


Consumption (Standard)≤35W
Consumption (Standby)≤0.5W
TypeInternal
Net Weight 4.25kg (9.4lb)
Gross Weight5.9kg (13.0lb)
Bezel Width23mm (U), 22mm (R/L), 24.5mm (B)
Wall Mount100x100mm (3.9"x3.9")
Dimension without standard
(WxHxD)
577.00x347.70x51.20mm (22.7"x13.7"x2.0")
Package(WxHxD)626x453x116mm (24.6"x17.8"x4.6")
Work Environment
Temperature0°C~ 40°C
Humidity10%~85%
Accessory
StandardVGA cable, power cable, pedestal
OptionalHanging bracket
Certifications
CertificationsCE/FCC

24h* 7

BNC


Essential Security Series | LM24-L200

www.dahuasecurity.com

Dimensions(mm)
