LDV49-SAI200

LDV49-SAI200    www.dahuasecurity.com  Features：  ·A+ grade IPS panel, industrial-grade design, full metal casing,  5mm tempered protective glass.  ·Supports picture, audio, video, office, IPC stream, time,  weather, etc.  ·Dahua MPS platform provides unified remote management for  system integrators and media operators.  ·Strong 4 core processor provides powerful decoding  capabilities, enabling premium display performance.  ·Multiple installation modes satisfy a broad range of project  requirements.  LDV49-SAI200  49'' Floor-standing Digital Signage    Technical Specification  Display  ModelLDV49-SAI200  Screen Size 49'' TFT LCD  Aspect Ratio 9:16  Resolution1080x1920  Display Colors16.7M (8 bits)  Brightness400nits  Contrast Ratio1200:1  Viewing Angle(HxV)178°/178°  Display ModePortrait  Response Time8ms  24/7 OperationYes  Connectivity  InputSD, RJ45, USB2.0*2, HDMI(optional)  OutputN/A  External ControlRS232  WifiYes  Speaker2Wx2  SMART Signage PlatformMedia Publish System    Power & Environmental Conditions  Power SupplyAC100-240V (+/- 10%), 50/60Hz  Consumption(Typical)70W  Consumption(Standby)Less than 0.5W  Operating Temperature-10℃~+55℃(14℉~...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

LDV49-SAI200

www.dahuasecurity.com
Features：
·A+ grade IPS panel, industrial-grade design, full metal casing,
5mm tempered protective glass.
·Supports picture, audio, video, office, IPC stream, time,
weather, etc.
·Dahua MPS platform provides unified remote management for
system integrators and media operators.
·Strong 4 core processor provides powerful decoding
capabilities, enabling premium display performance.
·Multiple installation modes satisfy a broad range of project
requirements.

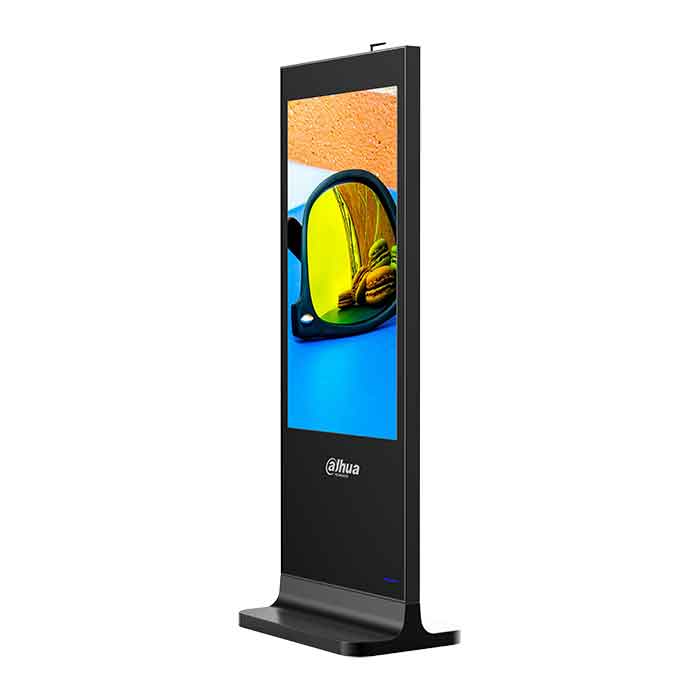

LDV49-SAI200
49'' Floor-standing Digital Signage

Technical Specification
Display
ModelLDV49-SAI200
Screen Size 49'' TFT LCD
Aspect Ratio 9:16
Resolution1080x1920
Display Colors16.7M (8 bits)
Brightness400nits
Contrast Ratio1200:1
Viewing Angle(HxV)178°/178°
Display ModePortrait
Response Time8ms
24/7 OperationYes
Connectivity
InputSD, RJ45, USB2.0*2, HDMI(optional)
OutputN/A
External ControlRS232
WifiYes
Speaker2Wx2
SMART Signage PlatformMedia Publish System

Power & Environmental Conditions
Power SupplyAC100-240V (+/- 10%), 50/60Hz
Consumption(Typical)70W
Consumption(Standby)Less than 0.5W
Operating Temperature-10℃~+55℃(14℉~131℉)
Operating Humidity10%~90%
Dimensions(WxHxD) & Weight
With Pedestal1990.0x720.0x63.6mm (78.3"x28.3"x2.5")
Packaging
Screen: 2043x902x299mm(80.4"x35.5"x11.8")
Pedestal:902x683x354mm(35.5"x26.9"x13.9")
Gross Weight
Screen: 77.2kg(170.2lb)
Pedestal:20.5kg (45.2lb)
Accessory
Included in Box
Power cord, Wi-Fi Antenna, User Manual, Remote
Control
PedestalLDV49-DZ, Hex bolt, Screws(M8*30)


LDV49-SAI200

www.dahuasecurity.com

Internal Player
ProcessorCortex-A7 1.5GHz Quad Core CPU
RAM1GB(2G optional)
Storage8GB
Multimedia
mp4, avi, mov, asf, wmv, rm, rmvb, mkv, jpg, jpeg,
gif, bmp, png, mp3, wma, wav, pdf
Operating SystemAndroid 4.4(Android 5.1 optional)
Decoding Capacity1ch@4K or 4ch@1080P
Dimensions(mm)
