LDV43-SAI200

LDV43-SAI200    www.dahuasecurity.com  Features：  ·High quality panel, industrial-grade design, full metal casing,  5mm tempered protective glass.  ·Supports picture, audio, video, PDF, IPC stream, time, weather,  etc.  ·Dahua MPS platform provides unified remote management for  system integrators and media operators.  ·Strong 4 core processor provides powerful decoding  capabilities, enabling premium display performance.  ·Built-in media player software and USB player provide multiple  methods to play contents.  LDV43-SAI200  43'' Floor-standing Digital Signage    Technical Specification  Display  ModelLDV43-SAI200  Screen Size 43''  Aspect Ratio 9:16  Resolution1080x1920  Display Colors16.7M (8 bits)  Brightness450nits  Contrast Ratio1200:1  Viewing Angle(HxV)178°/178°  Display ModePortrait  Response Time8ms  Lifespan30,000h  Connectivity  InputRJ45x1, USB2.0x2, SDx1, HDMI(customized)  OutputN/A  External ControlRS232  Wi-FiYes  Speaker2Wx2  Smart Signage PlatformMedia Publish System    Power & Environmental Conditions  Power SupplyAC100-240V (+/- 10%), 50/60Hz  TypeInternal  Consumption(Typical)60W  Consumption(Standby)Less than 0.5W  Operating ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

LDV43-SAI200

www.dahuasecurity.com
Features：
·High quality panel, industrial-grade design, full metal casing,
5mm tempered protective glass.
·Supports picture, audio, video, PDF, IPC stream, time, weather,
etc.
·Dahua MPS platform provides unified remote management for
system integrators and media operators.
·Strong 4 core processor provides powerful decoding
capabilities, enabling premium display performance.
·Built-in media player software and USB player provide multiple
methods to play contents.
LDV43-SAI200

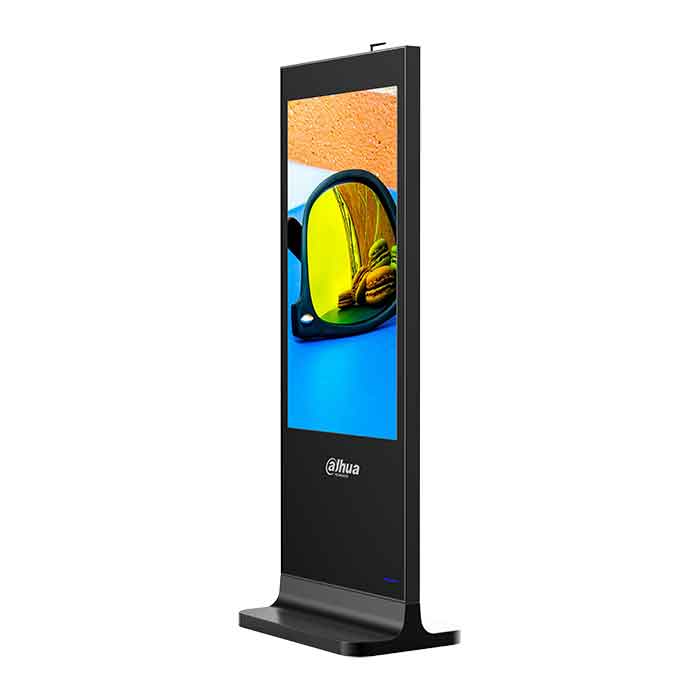

43'' Floor-standing Digital Signage

Technical Specification
Display
ModelLDV43-SAI200
Screen Size 43''
Aspect Ratio 9:16
Resolution1080x1920
Display Colors16.7M (8 bits)
Brightness450nits
Contrast Ratio1200:1
Viewing Angle(HxV)178°/178°
Display ModePortrait
Response Time8ms
Lifespan30,000h
Connectivity
InputRJ45x1, USB2.0x2, SDx1, HDMI(customized)
OutputN/A
External ControlRS232
Wi-FiYes
Speaker2Wx2
Smart Signage PlatformMedia Publish System

Power & Environmental Conditions
Power SupplyAC100-240V (+/- 10%), 50/60Hz
TypeInternal
Consumption(Typical)60W
Consumption(Standby)Less than 0.5W
Operating Temperature-10℃~+55℃(14℉~131℉)
Operating Humidity10%~90%
Mechanical Specification
Dimensions (With Pedestal)1938.5x651.7x63.6mm (76.3"x25.7"x2.5")
Package
Screen1969x832x299mm(77.5"x32.8"x11.8")
Pedestal832x683x354mm(32.8"x26.9"x13.9")
Gross Weight
Screen66kg(145.5lb)
Pedestal20.5kg (45.2lb)
Accessory
Included in BoxPower cord, Wi-Fi antenna, user manual, remote control
PedestalLDV43-DZ, hex bolt, screws(M8*30)

24h / 7

1080p


LDV43-SAI200

www.dahuasecurity.com

Internal Player
ProcessorCortex-A7 1.5GHz Quad Core CPU
RAM1GB(2G customized)
Storage8GB(16G customized)
Material Type
Audio, video, image, time, weather, countdown, txt,
web page, stream media, pdf
Audio/Video Encoding Format
Mp4, avi, mov, asf, wmv, rm, rmvb, mkv, jpg, jpeg,
gif, bmp, png, mp3, wma, wav
Operating SystemAndroid 4.4(Android 5.1 customized)
Decoding Capacity1ch@4K or 3ch@1080P
Dimensions(mm)
